MECHANICAL DETAIL
Manifold The manifold distributes the compressed air input directly to the pneumatic
devices, for certain machine options, without passing through a solenoid.
Solenoid Manifold The solenoid manifold distributes the compressed air input to the various
solenoids. Exhaust noise is reduced by two silencers fitted at the end of the
manifold.
WARNING
MANUAL OVERRIDE. MANUAL OPERATION OF PNEUMATIC VALVES MAY
CAUSE A SAFETY HAZARD TO PERSONNEL.
Figure 24-2 Pneumatic Manifold Assembly
In-line Flow Control Valve
Silencers (2 positions)
Manual Override
Plug
Y Union
Blanking Plate
Solenoid Manifold
Manifold
Solenoid Valve 5/2
Solenoid Valve 3/2

31(80$7,&02'8/(
31(80$7,&'(9,&(6
Chapter Issue 3 May 03 Technical Reference Manual 24.5
PNEUMATIC DEVICES
Regulator
Assemblies
There is a minimum of one and a maximum of five regulator assemblies fitted
to the machine as follows:
• Mains Air Input
• Paste Dispenser (option)
• Screen Cleaner Solvent Tank (option)
• ProFlow Software Controlled Air Regulator
• Board Clamps (option)
Figure 24-3 Mains Air Regulator Assembly
Filter
Drain
Drain Empty Valve
Pressure Sensor and Gauge
Regulator
Air In
Air Out

31(80$7,&02'8/(
31(80$7,&'(9,&(6
24.6 Technical Reference Manual Chapter Issue 3 May 03
Filter The compressed air filter removes any contaminants, in addition to any water
which has already condensed, from the compressed air flowing through it. The
filter is housed in a single unit incorporating an automatic drain and a pressure
regulator.

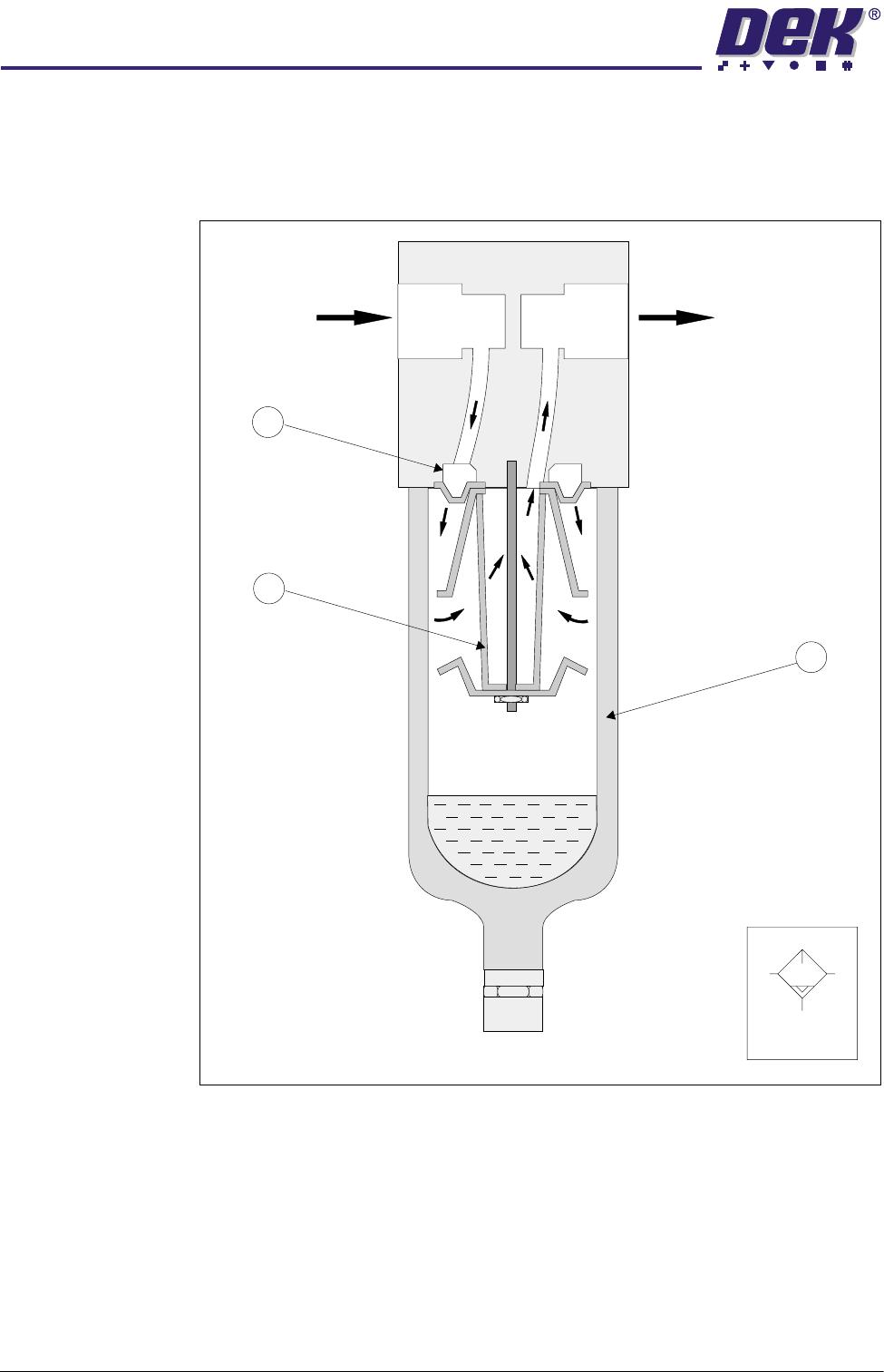

Figure 24-4 Cross Section and Symbol
The compressed air enters the filter bowl (2) through the guide slots (1) and is
rotated. Liquid particles and the dirt particles, which are larger than the mesh
size of the filter (3), separate centrifugally and collect in the lower part of the
filter bowl. A differential pressure type automatic drain removes the collected
condensate via a drain tube.
Air In
Air Out
1
3
2
Symbol
