4.3 Installing the Windows XP Embedded operating system

NOTICE

Before you start work, ensure that the DVD drive is set as the first boot device in the

BIOS to allow the computer to be booted from CD/DVD.

► If necessary, back up the machine data manually.

If you install Windows XP Embedded on a Vision computer in two-computer operation, the

following steps have to be performed:

► Disconnect the keyboard from the machine computer and connect it to the Vision computer.

► Switch the video multiplexer to the Vision computer.

► Unplug the USB cable for the DVD drive from the machine computer and plug it into the Vision

computer.

4.3.1 Installing the installation CD/DVD

► Insert the installation CD/DVD for CPU 627 or CPU 627B/827B into the DVD drive.

► Switch on the computer to start it from the CD/DVD or reboot the computer, if it was already

switched on.

► Press any key, when the message "Press any key to boot from CD Rom" is displayed.

► Follow the instructions of the Restore Installation procedure (screen in text mode).

An automatic inspection of the system is carried out and then the screen for selecting the language

appears:

1. Deutsch

2. English

► Select the required language.

Selection of Restore options:

1. Restore system partition only (partition C will be overridden, D remains unchanged)

2. Restore entire target drive (always select this option for initial installation)

3. Cancel

► Select an option and confirm your selection.

The operating system is installed and the computer is automatically rebooted.

After a short time, the message Restore completed is displayed and you are prompted to

remove the data medium and restart the computer.

► Remove the CD/DVD from the DVD drive and press any key.

The computer starts and the Windows login window is displayed (the first reboot may take some

minutes).

► Insert the "SIPLACE XP embedded Configurator" software CD into the DVD drive.

► Log on as Administrator without entering a password.

Windows XP Embedded SP2 / Installation Manual Ausgabe 05/2011 Edition

4.3.2 Choosing the computer configuration

After the reboot dialogs are displayed for hardware that has not been installed:

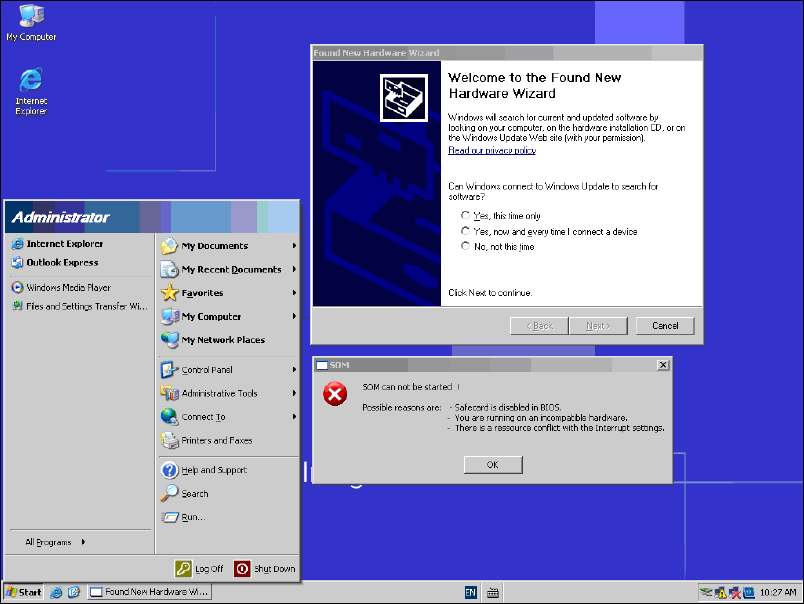

Figure 4-1: Not installed hardware

► Ignore these messages!

► Open Windows Explorer (e.g. via "My Computer" on the desktop) and navigate to the DVD

drive.

► Double-click on the XPeConfigurator.hta file from the software CD to start the "SIPLACE XP

embedded Configurator".

Windows XP Embedded SP2 / Installation Manual Ausgabe 05/2011 Edition

The following window is displayed:

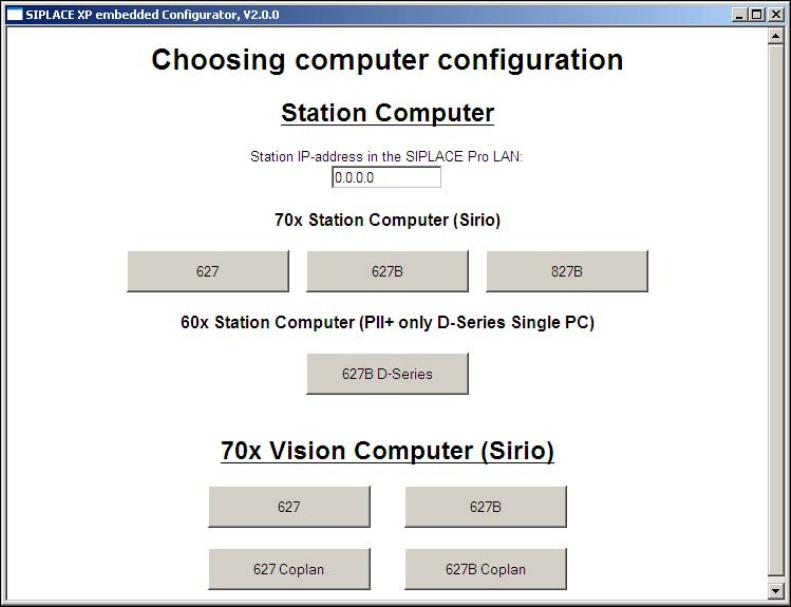

Figure 4-2: Window SIPLACE XP embedded Configurator

► Enter the station IP-address for SIPLACE Pro LAN (required for a station computer only) and

choose the suitable computer configuration.

The SIPLACE settings are automatically performed and the computer reboots.

After the reboot, you are logged on as Operator.

► Remove the software CD from the DVD drive.
