ValveMate 8040 Controller
24 www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.
Troubleshooting
Problem Possible Cause and Correction
LED is blinking “ALr”
and
will not accept initiate signal.
Air pressure to the solenoid pack has
dropped below 4.1bar (60psi) or if low level
float switch is used, tank level is low. Raise
the input pressure to 4.8bar (70psi) or refill
the tank. Press CYCLE
button to reset.
If problem persists, make sure devices such
as air cylinders are not causing a pressure
drop in the ValveMate 8040 solenoid pack
input air line. If no ALARM switch is being
used, the ALARM IN + / - terminals must have
a jumper installed to disable ALARM feature.
Unit is not responding to the
initiate signal.
Check to make sure the unit is not in a mode
other than RUN
. Response delay in
pneumatic circuit does not allow the valve to
open when time is set at or below 0.010
seconds. Increase time. Initiate signal may
have a low level of leakage. The signal must
break clean before the next signal is initiated.
Timer is inoperative. Check to make sure the unit is not in the
steady mode. The timer is very reliable. Any
failure is total so no inconsistency is possible.
Flashing
on LED display.
Short on the OUT TO SOLENOID circuit.
Check solenoid wiring connections.
ValveMate 8040 Controller
25www.nordsonefd.com info@nordsonefd.com +1-401-431-7000 Sales and service of Nordson EFD dispensing systems are available worldwide.

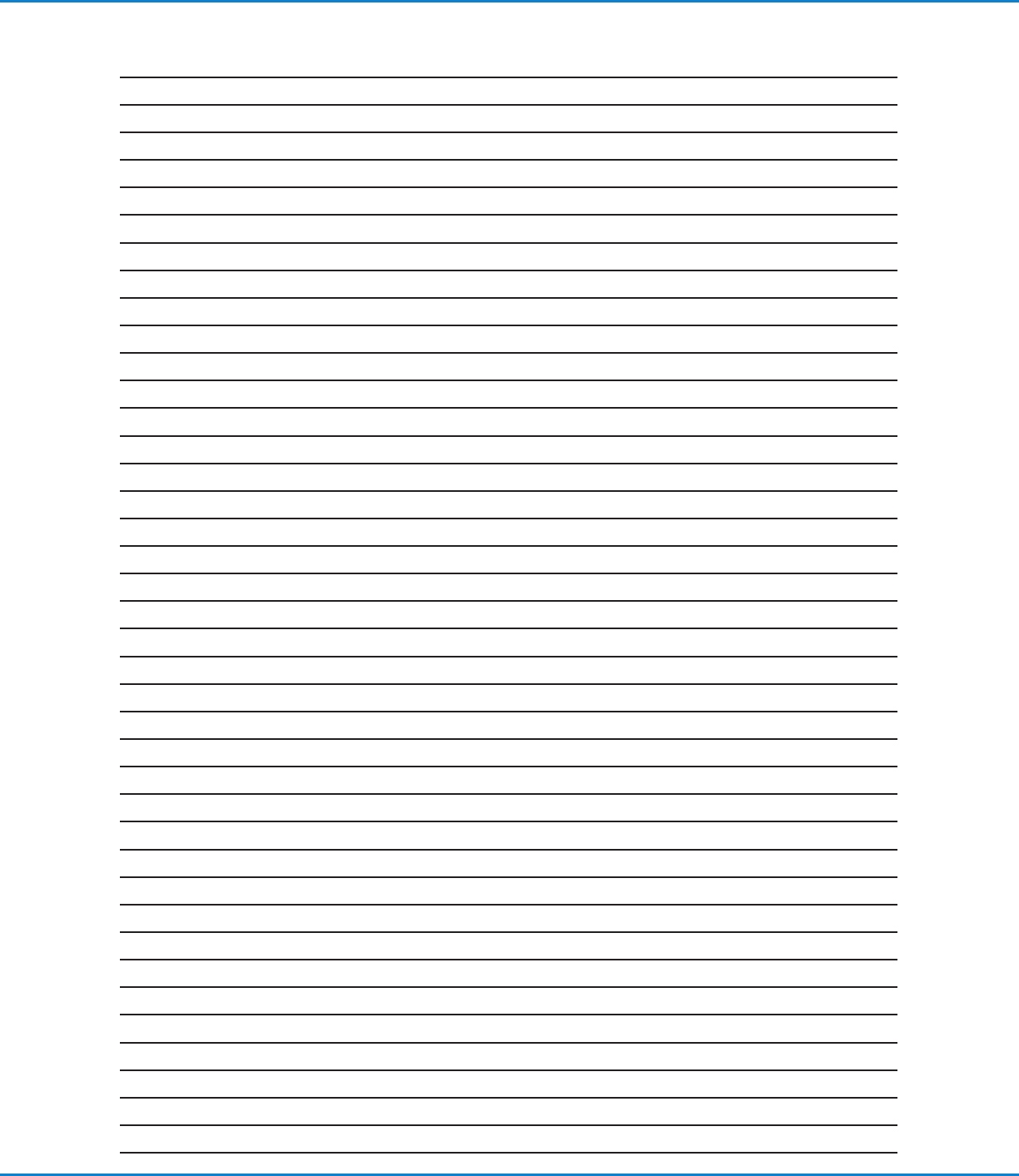

Notes
For Nordson EFD sales and service in over
40 countries, contact Nordson EFD or go to
www.nordsonefd.com.
Global
800-556-3484; +1-401-431-7000
info@nordsonefd.com
Europe
00800 7001 7001
infoefd.europe@nordsonefd.com
Asia
China: +86 (21) 3866 9006; china@nordsonefd.com
India: +91 80 4021 3600; india@nordsonefd.com
Japan: +81 03 5762 2760; japan@nordsonefd.com
Korea: +82-31-736-8321; korea@nordsonefd.com
SEAsia: +65 6796 9522; sin-mal@nordsonefd.com
The Wave Design is a trademark of Nordson Corporation.
©2024 Nordson Corporation 7026825 v050724
NORDSON EFD ONE YEAR LIMITED WARRANTY
This NordsonEFD product is warranted for one year from the date of purchase to be free
from defects in material and workmanship (but not against damage caused by misuse,
abrasion, corrosion, negligence, accident, faulty installation, or by dispensing material
incompatible with equipment) when the equipment is installed and operated in accordance
with factory recommendations and instructions.
NordsonEFD will repair or replace free of charge any defective part upon authorized return
of the part prepaid to our factory during the warranty period. The only exceptions are those
parts which normally wear and must be replaced routinely, such as, but not limited to, valve
diaphragms, seals, valve heads, needles, and nozzles.
In no event shall any liability or obligation of NordsonEFD arising from this warranty exceed
the purchase price of the equipment.
Before operation, the user shall determine the suitability of this product for its intended use,
and the user assumes all risk and liability whatsoever in connection therewith. NordsonEFD
makes no warranty of merchantability or fitness for a particular purpose. In no event shall
NordsonEFD be liable for incidental or consequential damages.
This warranty is valid only when oil-free, clean, dry, filtered air is used, where applicable.
