GUI and Icon Overview 25 7 GUI and Icon Overview GUI Overview 1. Breadcrumb 2. Tools 3. Status 4. Vision Window 5. Board Mimic 6. Temperature Humidity Host Comms 7. Information 8. Commands 9. Performance 10. Time to Go 1…
Your Sketches and Notes
24
GUI and Icon Overview
25
7 GUI and Icon Overview

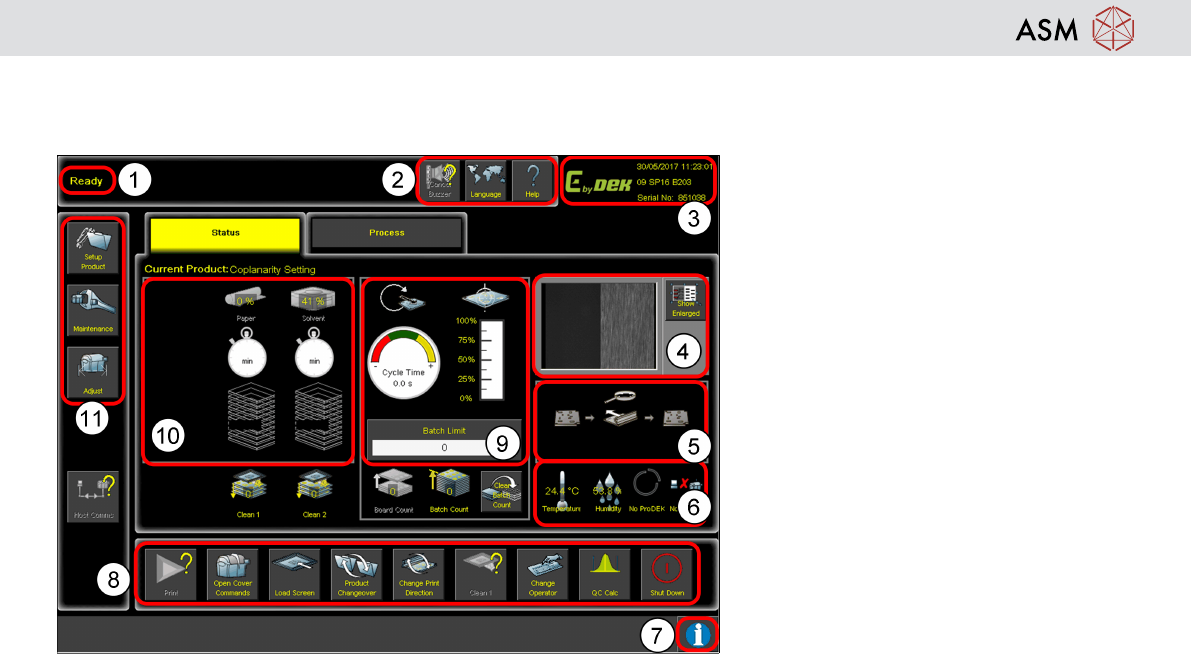

GUI Overview
1. Breadcrumb
2. Tools
3. Status
4. Vision Window
5. Board Mimic
6. Temperature Humidity Host Comms
7. Information
8. Commands
9. Performance
10. Time to Go
11. Navigation
GUI and Icon Overview
26

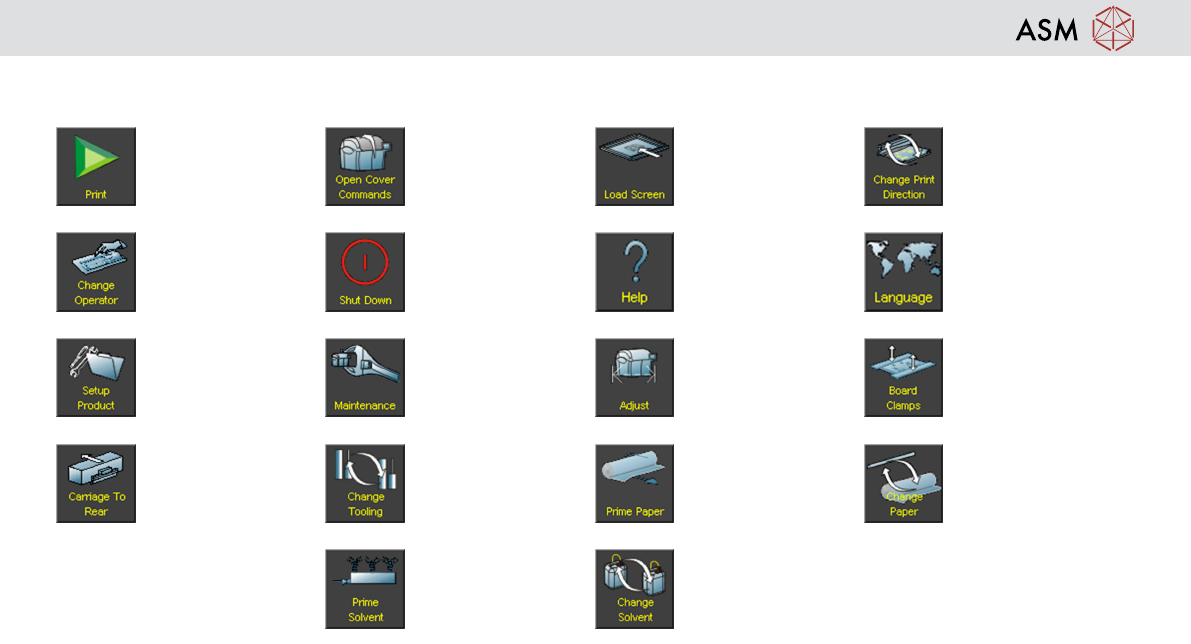

Icon Overview
Start Print Open Cover Com-
mands
Load Screen Change Print Dir-
ection
Change Operator Shut Down Help Language
Setup Product Maintenance Adjust Board Clamps
Carriage to Rear Change Tooling Prime Paper Change Paper
Prime Solvent Change Solvent
