PCB Barcode V2.0 SP4 / Installation Manual Ausgabe 03/2013 Edition
7
2 Scope of Delivery
Installation package Traceability with PCB Camera, item no. [116195]. This package contains:
– Licenses:
Barcode WdtL
Reading Barcode with PCB Camera
SIPLACE Traceability Station Connection
– Installation package PCB Barcode V2.0 SP4, item no. [00388759-05] that contains the
following parts:

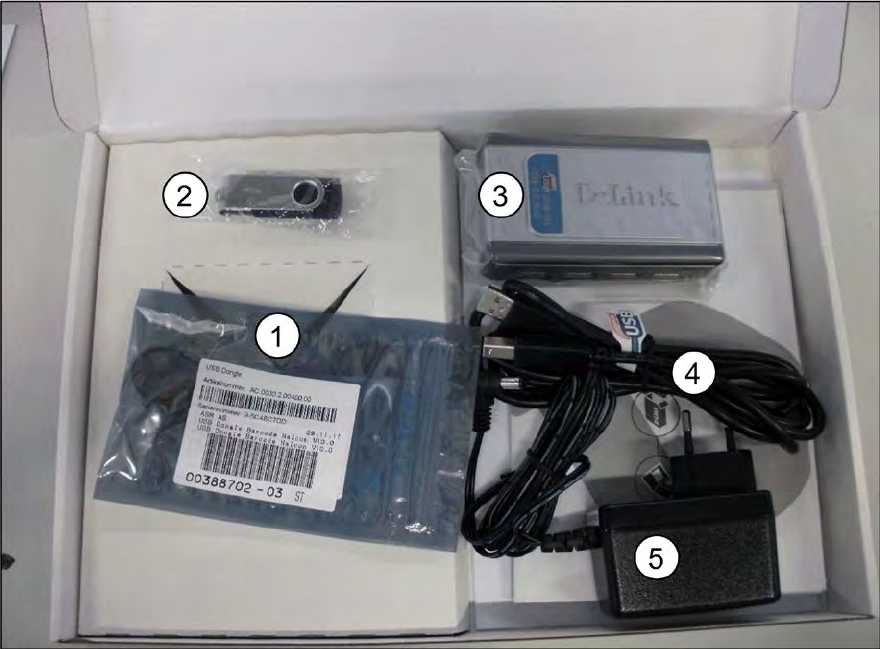

Figure 2-1: Installation package PCB Barcode V2.0 SP4
(1) 1x green USB dongle
(2) 1 x gray USB stick (with drivers and licenses)
(3) 1x USB hub
(4) 1x USB cable
(5) 1x power supply unit
1x adhesive tape "Klettostar Flausch" (not displayed)
PCB Barcode V2.0 SP4 / Installation Manual Ausgabe 03/2013 Edition
8
NOTICE
X-series placement machines in two-computer operation
If the placement machine is equipped with a separate Vision computer, you will have to
order two installation packages.
PCB Barcode V2.0 SP4 / Installation Manual Ausgabe 03/2013 Edition
9
3 Prerequisites
– The PCB Barcode has to be installed on both station computer and Vision computer on
X-series placement machines in two-computer operation. For this, two dongles are required,
see Scope of Delivery.
– You have to be logged in as administrator.
– A D: partition has to be available on the station computer / Vision computer.
