Page HANWHA TECHWIN 105 DECAN L2 Backup Table L810 NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 FC29-000414 CAP-P ACK-SGLC6 4 2 FC30-002622A PLA TE-BACK_UP_482_460L;S S400 1 PCB L810 T ype FC3…
Page
HANWHA TECHWIN
104
DECAN
L2
Backup Table L810
D
C
A
A
D
B
C
B
9
4
3
18
19
20
12
15
16
17
6
11
7
8
13
10
1
2
5
14
5
Page
HANWHA TECHWIN
105
DECAN
L2
Backup Table L810
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC29-000414 CAP-PACK-SGLC6 4
2 FC30-002622A PLATE-BACK_UP_482_460L;SS400 1 PCB L810 Type
FC30-002621A PLATE-BACK_UP_482_400N;SS400 1 PCB L610 Type
3 FC09-004951A BRACKET-TOP SPACER 4
4 FC29-004515A DOG-BUT_SM482_UP_SENSOR 1
5 J70531080A PLATE_EXTENSION J70531080A 2
6 FC29-004299A HOLDER-LOWER_BEARING_BUT;A6061BE-T6 8
7 MC03-900098 BALL_BEARING 688ZZ 24
8 J7053793A LOWER LINK PIN[J7053793A] 8
9 J70530797B LOWER LINK END 8
10 MC19-001123A SHAFT-LOWER_LINK_BUT 4
11 FC29-004298A HOLDER-UPPER_BEARING_BUT 8
12 J7053792A UPPER LINK PIN[J7053792A] 16
13 FC30-002536A PLATE-UPPER_FREE_LINK;A6063-T6 2
14 FC30-002532A PLATE-UPPER_DRIVING_LINK;A6063-T6 2
15 FC18-901994 SHOULDER SCREW[MSB6-40] 1
16 FC29-004429A STOPPER-URETHAN_CUSHION 1
17 J61071108A BUT_SPRING J61071108A 1
18 FC30-002620A PLATE-LOWER_SM482_BUT;SS400 1
19 J3212002A PHOTO SENSOR 1
20 FC09-004804A BRACKET-BUT_SM482_UP_SENSOR 1
Page
HANWHA TECHWIN
106
DECAN
L2

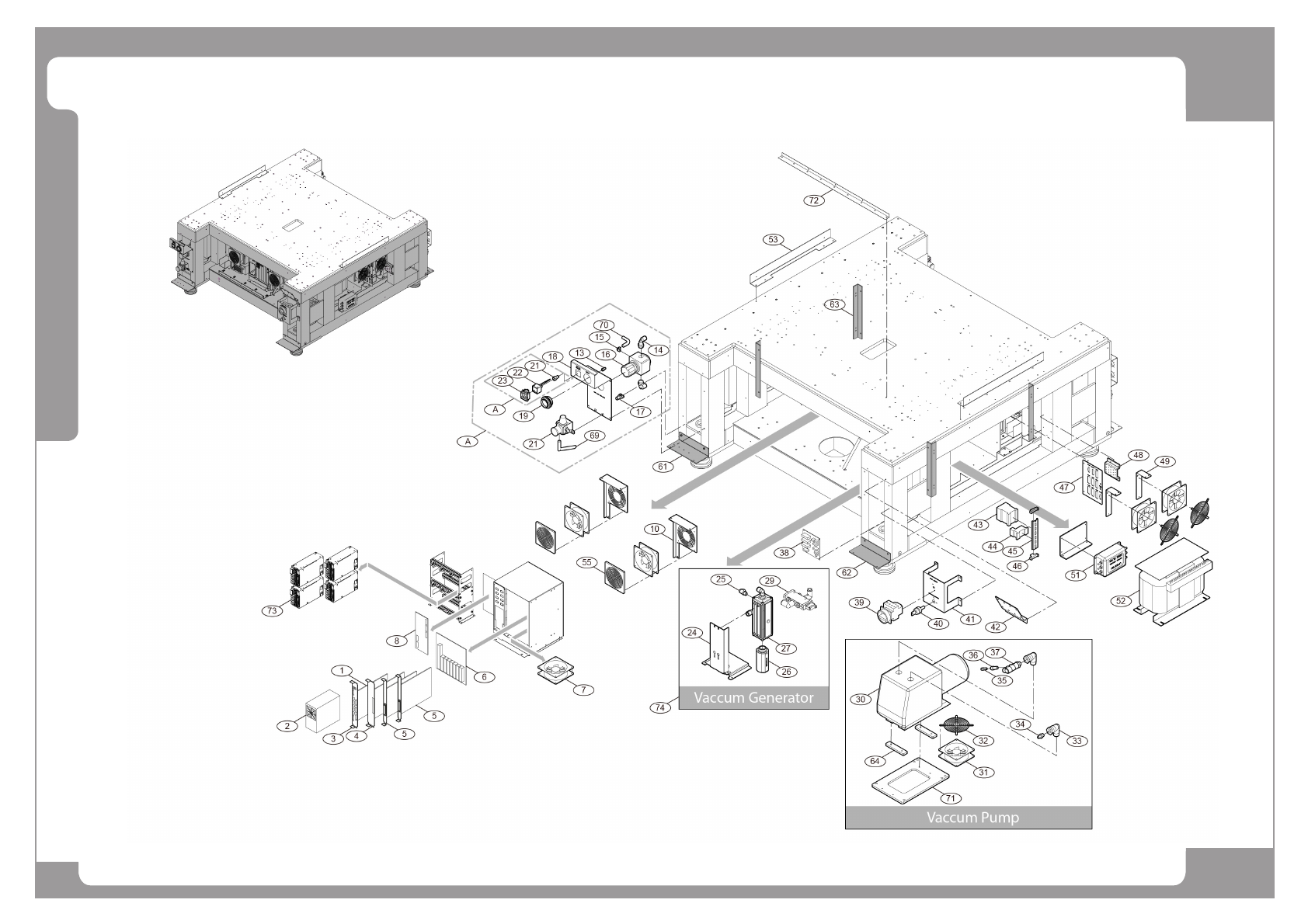

Base Frame (Front)
