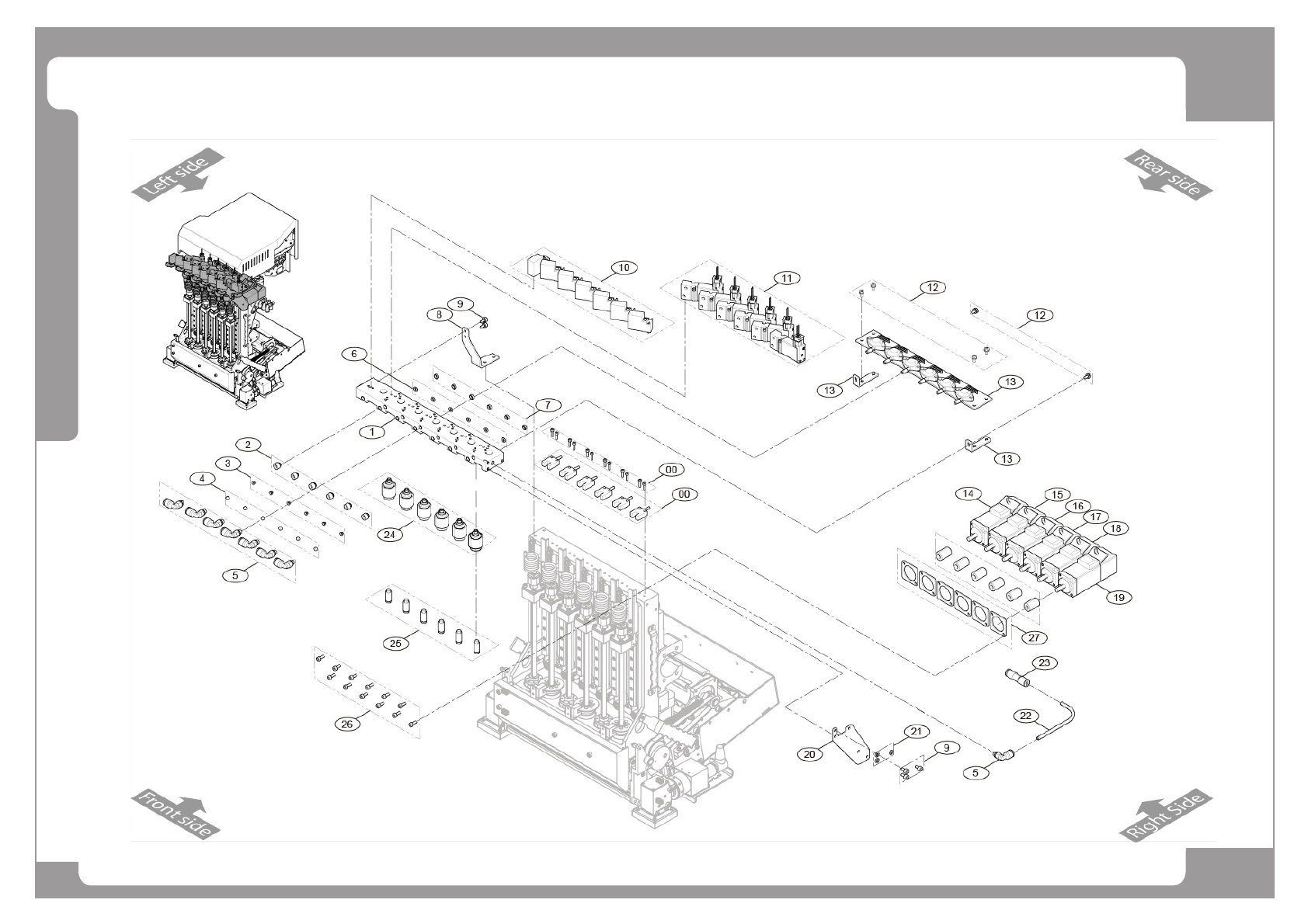

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC07-000254B SM411_AIR_MODULE_MANIFOLD 1 FC07-000254A
2 FC14-000121A BLOW_FILTER_CAP 6
3 FC09-000665A SM411_MANIFOLD_ORIFICE_0.9 6
4 HP04-000018B FILTER,AIR-FILTER ELEMENT 6 HP04-000018A
5 HP06-000104 FITTING 8
6 FC18-901394 O_RING 6
7 FC09-000664A INSERT 6
8 FC09-000779A AIR_MODULE_BKT1 1
9 J6001300638 SOCKET HEAD CAP SCREW 59
10 HP14-000206 VALVE-BLOW_VALVE 7
11 HP14-000163 VALVE,SOLENOID-MAC_solenoid valve 6
12 FC18-902837 SEMUS NABE SCREW 24
13 J91741085A SM321_HEAD_VACUUM_SENSOR_BOARD VER 1.1 1
14 AM03-015011A CABLE ASSY-Z1 MOTOR 1
15 AM03-015012A CABLE ASSY-Z2 MOTOR 1
16 AM03-015013A CABLE ASSY-Z3 MOTOR 1
17 AM03-015014A CABLE ASSY-Z4 MOTOR 1
18 AM03-015015A CABLE ASSY-Z5 MOTOR 1
19 AM03-015016A CABLE ASSY-Z6 MOTOR 1
20 FC09-000780A AIR_MODULE_BKT2 1
21 FC18-903488 SPRING WASHER 7
22 HP13-900081 AIR TUBE (POLYURETHANE) 1
23 HP14-900095 CHECK_VALVE AKH04-00 1
24 HP04-001025 FILTER-VACUUM_FILTER_ASSY 6
J7458002A FILTER ELEMENT[LF-M5-60-Z-ELEMENT] 6
25 HP06-000421 FITTING-STRAIGHT FITTING;ONE TOUCH,M5 6
26 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 28
27 FC18-001426A SPACER-Z_MOTOR_SPACE 6
