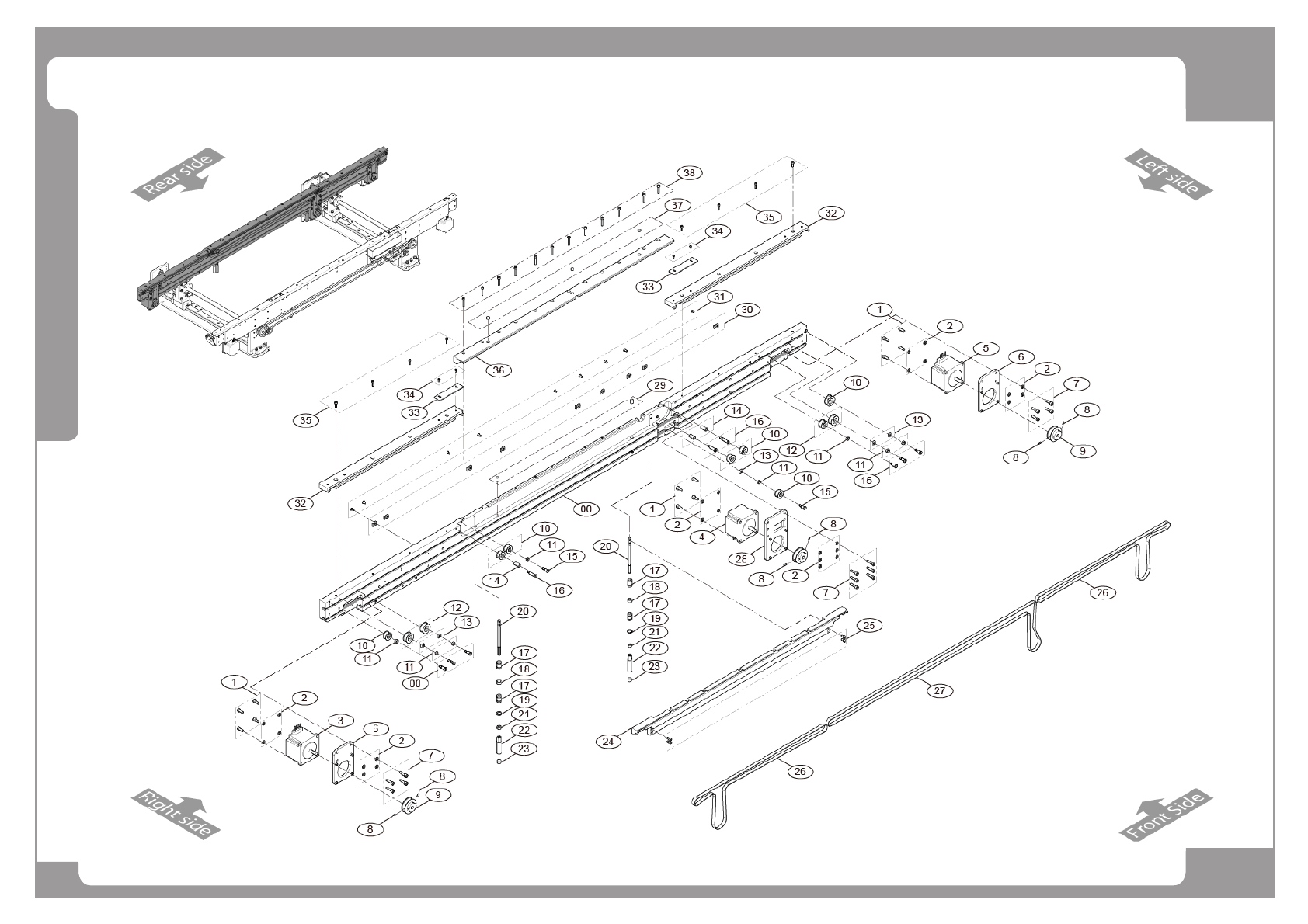

Single Conveyor (1/3)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
32 J7053047A IDLER_SPACER_S 18 OPTION
33 J7253006A IDLER 1 8
34 J66011035A BALL_BUSH LMU5 8
35 J7153033A BUSH SPACER 4
36 FC18-901355 C-RING DIA11(HOLE) 4
37 FC18-902719 SOCKET HEAD CAP SCREW M3*6 (NI/ZN) 14
38 J7153034A CLAMP SHAFT 4
39 FC18-900900 HEX NUT 5
40 J7153010B ADJUST SHAFT [J7153010B] 4
41 J7253008A STOPPER 4
42 FC09-004902A BRACKET-BELT_MOTOR_L 1
43 J70531083A ALT_MOTOR_SUPPORT J70531083A 4
44 J70531643A H30_STOPPER_BAR J70531643A 1
45 HP14-900083 THROTTLE VALVE(ELBOW) 1
46 HP06-900010 ELBOW FITTING [M-5HLH-4] 1
47 FC18-903488 SPRING WASHER [M3 (BL/ZN)] 4
48 HP03-900036 AIR CYLINDER[MHY2-01-IU2054-D-M9N(3m)] 1
49 FC18-902722 SOCKET HEAD CAP SCREW M3*8 (NI/ZN) 2
50 FC18-903475 FLAT WASHER [M3 (BL/ZN)] 2
51 J70531765A WORK_SENSOR_BKT J70531765A 1
52 FC09-004901A BRACKET-WORK_CYL 1
53 J7053770A IDLER SHAFT-M[J7053770A] 6
54 J7053048A IDLER SPACER-M 3
55 FC18-902740 SOCKET HEAD CAP SCREW M4*8 (NI/ZN) 8
56 J71530399C CLAMP FRONT FRAME 1
57 MC05-000270 BELT-MAM-5P-983-7W;MAM-5P,983,7,1.2 4
58 MC05-900071 BELT_410_1_LONG 1
59 FC09-006122A BRACKET_SENSOR_IN 1 J70531100B
60 FC39-001898A FRAME-FRONT_1430 1
A AM03-017756A AIR_SHOWER_ASSY J90531115A 1 J90531115A
