Page HANWHA TECHWIN 357 DECAN L2 Motor IF Board (14/18) NO. P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01 1250A CABLE ASSY -Z910_DRV_COMMAND 1 2 AM03-013439 A CABLE ASS Y -SM51 1 FLA T 2 1 …
Page
HANWHA TECHWIN
356
DECAN
L2

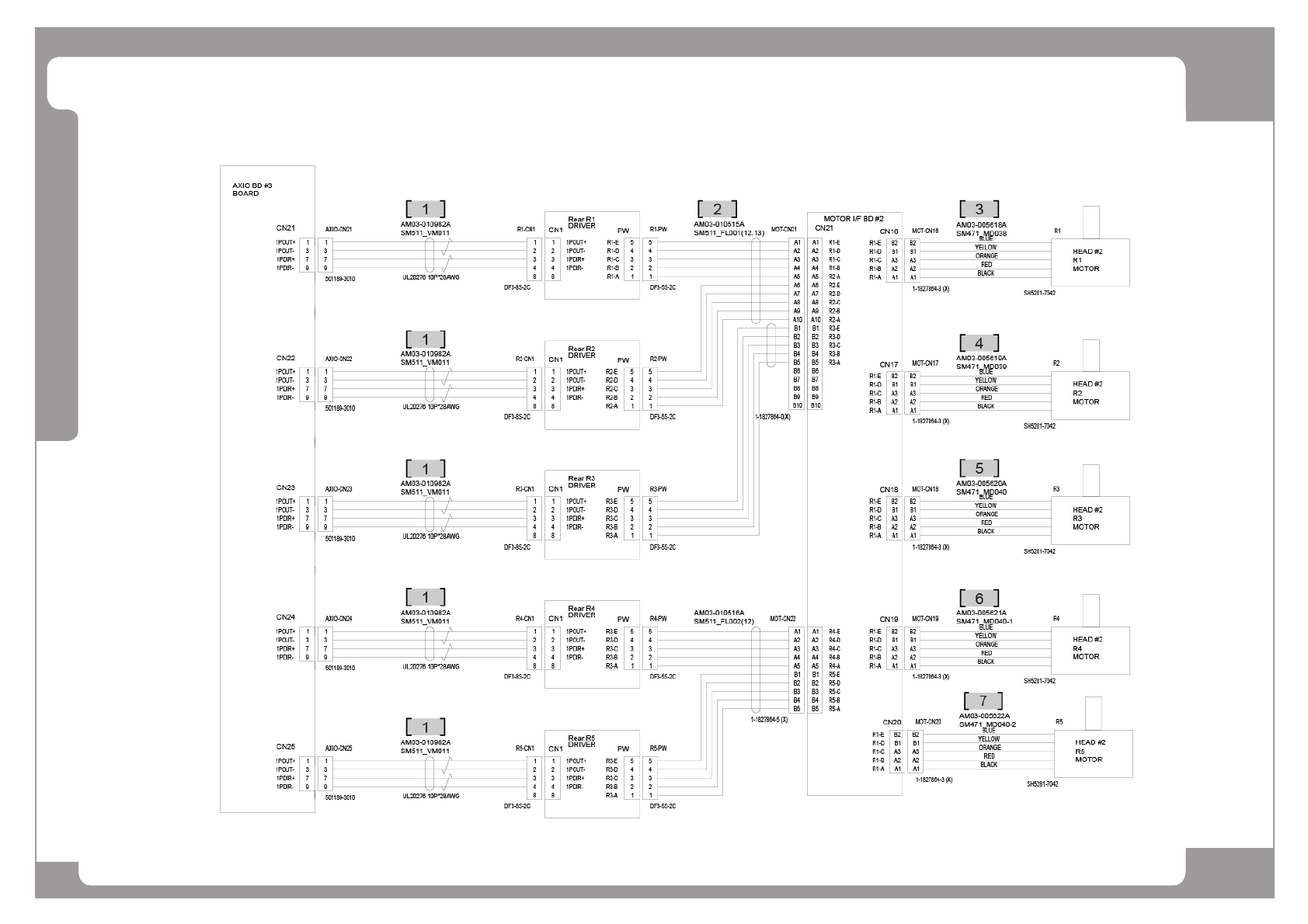

Motor IF Board (14/18)
Page
HANWHA TECHWIN
357
DECAN
L2
Motor IF Board (14/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011250A CABLE ASSY-Z910_DRV_COMMAND 1
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010900A CABLE ASSY-Z9_MOTOR 1
4 AM03-010901A CABLE ASSY-Z10_MOTOR 1
Page
HANWHA TECHWIN
358
DECAN
L2
Motor IF Board (15/18)
