Page HANWHA TECHWIN 356 DECAN L2 Motor IF Board (14/18)
Page
HANWHA TECHWIN
355
DECAN
L2
Motor IF Board (13/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011249A CABLE ASSY-Z78_DRV_COMMAND 1
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010898A CABLE ASSY-Z7_MOTOR 1
4 AM03-010899A CABLE ASSY-Z8_MOTOR 1
Page
HANWHA TECHWIN
356
DECAN
L2

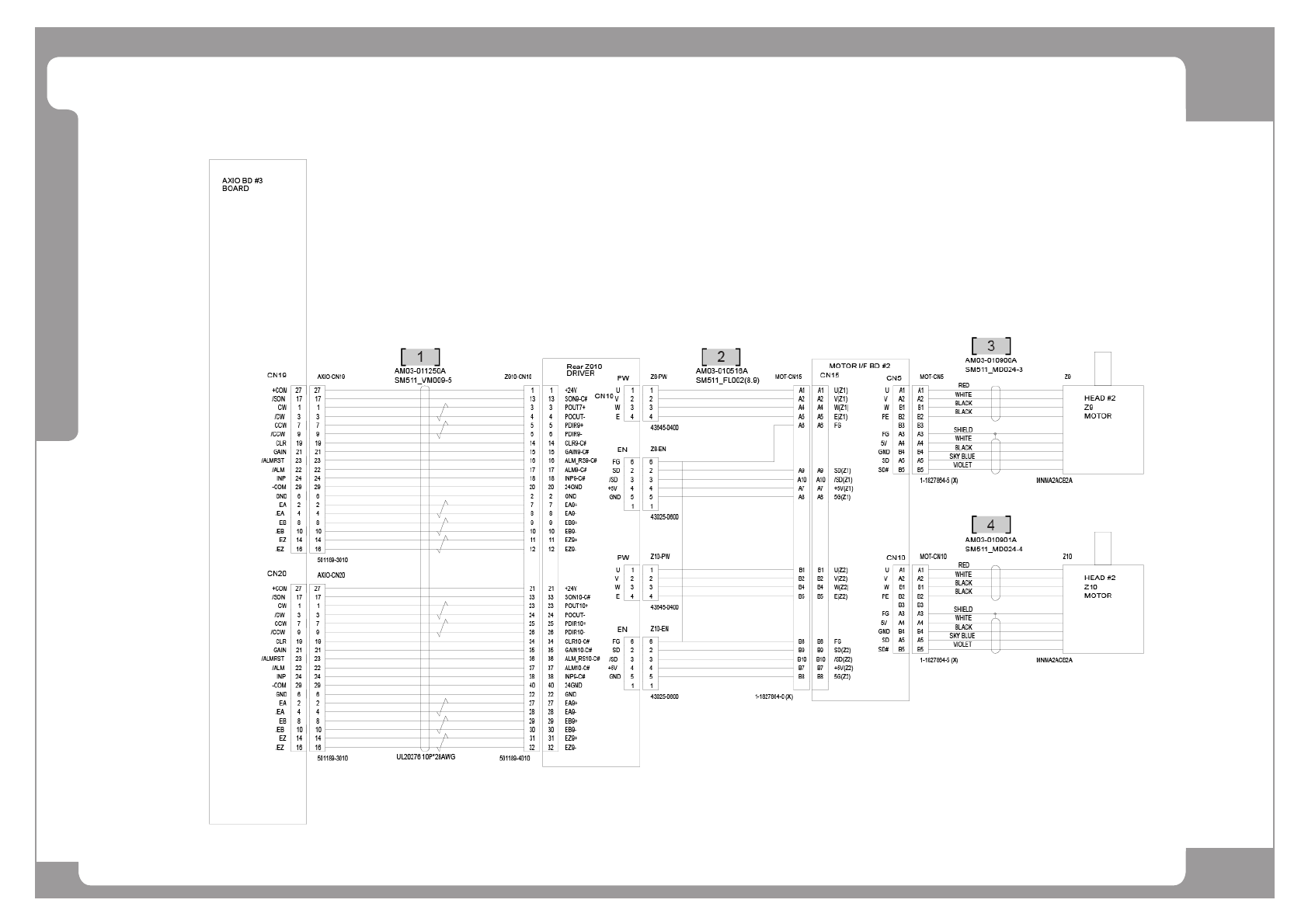

Motor IF Board (14/18)
Page
HANWHA TECHWIN
357
DECAN
L2
Motor IF Board (14/18)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011250A CABLE ASSY-Z910_DRV_COMMAND 1
2 AM03-013439A CABLE ASSY-SM511 FLAT 2 1 AM03-010516C
3 AM03-010900A CABLE ASSY-Z9_MOTOR 1
4 AM03-010901A CABLE ASSY-Z10_MOTOR 1
