Page HANWHA TECHWIN 190 DECAN L2 Electric Power (4/6)
Page
HANWHA TECHWIN
189
DECAN
L2
Electric Power (3/6)
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005483A CABLE ASSY-CP2_TB1_MC2_CABLE 1
2 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1
3 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1
4 AM03-005493A CABLE ASSY-FY1_FY2_SERVO_POWER 1
5 AM03-005494A CABLE ASSY-RY1_RY2_SERVO_POWER 1
Page
HANWHA TECHWIN
190
DECAN
L2
Electric Power (4/6)
Page
HANWHA TECHWIN
191
DECAN
L2
Electric Power (4/6)

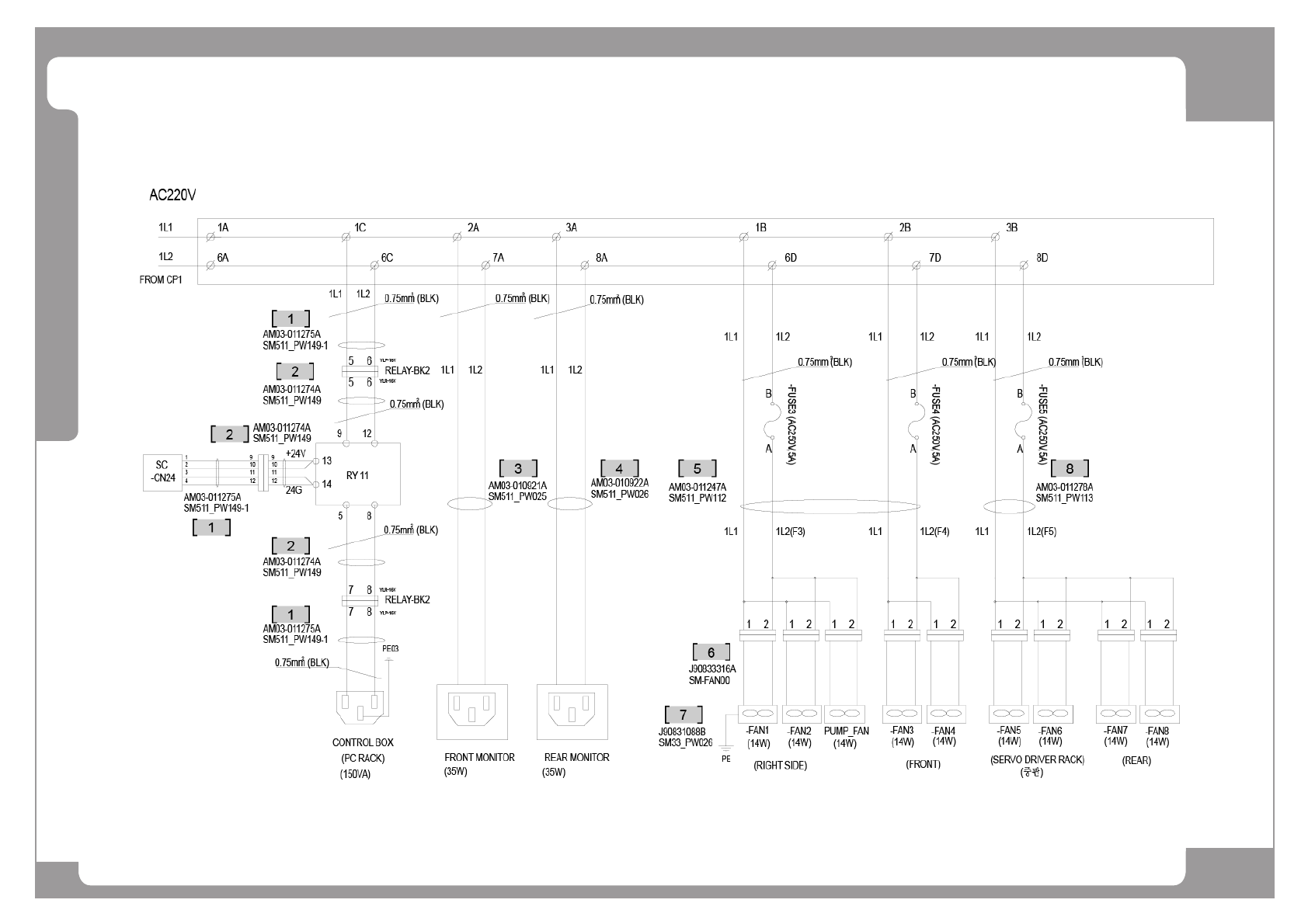

NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-011275A CABLE ASSY-RY_BRK_220V_24V_PC_PWR 3
2 AM03-011274A CABLE ASSY-RELAY_BRK_MODULE_AC_DC 3
3 AM03-010921A CABLE ASSY-FRONT_MONITOR_PW 1
4 AM03-010922A CABLE ASSY-REAR_MONITOR_PW 1
5 AM03-011247A CABLE ASSY-FAN_POWER 1
6 J90833316A FAN_CABLE_ASSY SM-FAN00 1
7 J90831088B SERVO_FAN_FG_CABLE_ASSY 1
8 AM03-011278A CABLE ASSY-SERVO_REAR_FAN_POWER 1
