DECAN_L2_TRM(Ver2.9_CS15.51).pdf - 第31页
Page HANWHA TECHWIN 27 DECAN L2 Docking C art (3/4) NO. P ART NO. P ART N AME Q'TY Old No. Sto ck Apply Refere nce 1 J 91741071A FEEDER_INPUT_EXT_ BOARD VER 1.1 1 2 J 91741070A FEEDER_IO_BOARD VER 1 .2 1 3 FC 09-000…
Page
HANWHA TECHWIN
26
DECAN
L2

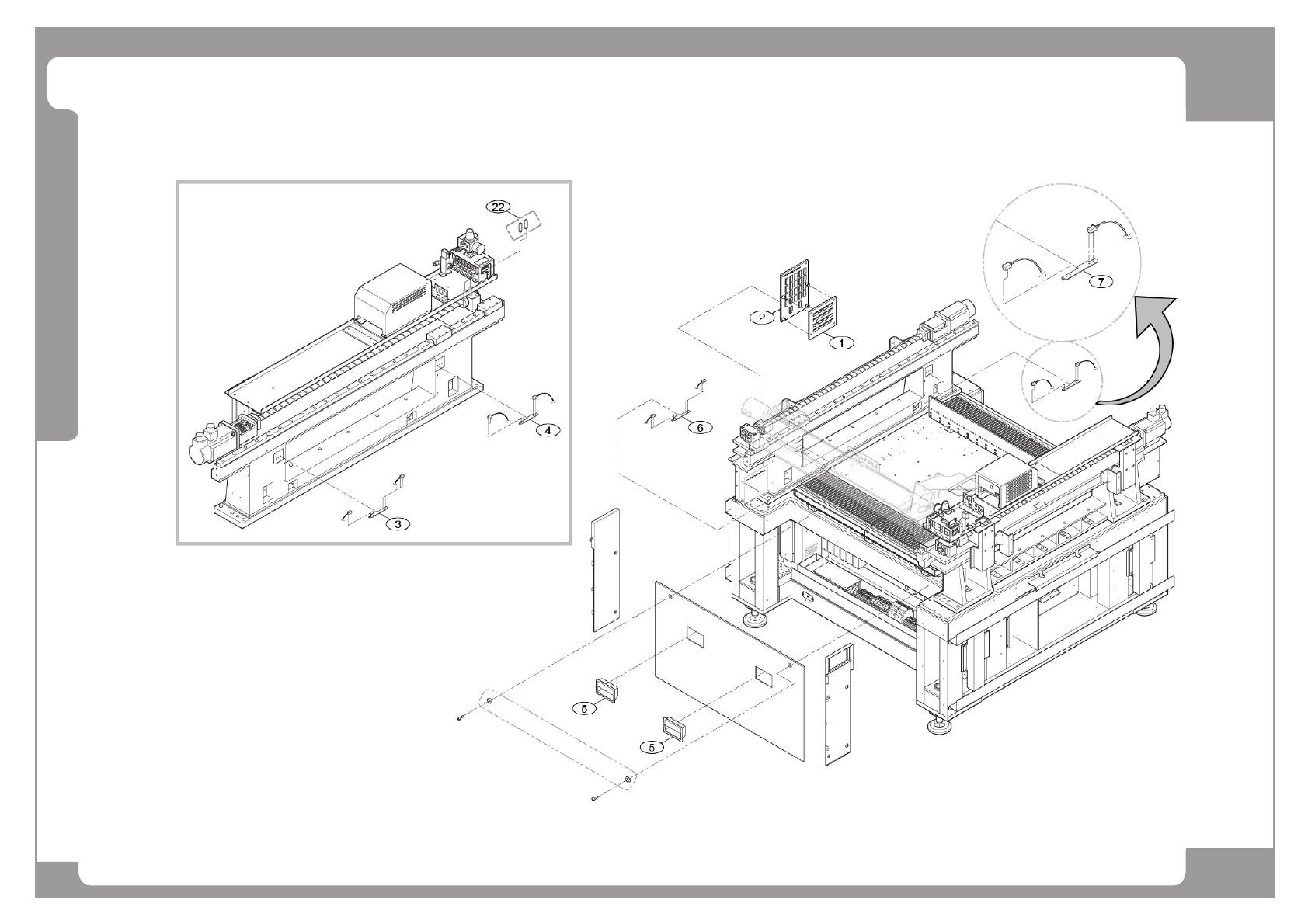

Docking Cart (3/4)
Page
HANWHA TECHWIN
27
DECAN
L2
Docking Cart (3/4)
NO. PART NO. PART NAME Q'TY Old No. Stock Apply Reference
1 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
2 J91741070A FEEDER_IO_BOARD VER 1.2 1
3 FC09-000977A FRONT SENSOR BKT2 1
4 FC09-000976A FRONT SENSOR BKT1 1
5 FC29-900144 DRAWER PULL [HD-108] 2
6 J70540268C REAR SENSOR BKT1 1
7 J70540269B REAR SENSOR BKT2 1
Page
HANWHA TECHWIN
28
DECAN
L2
Docking Cart (4/4)
