Feeder Base
Page
HANWHA TECHWIN
19
DECAN
L2

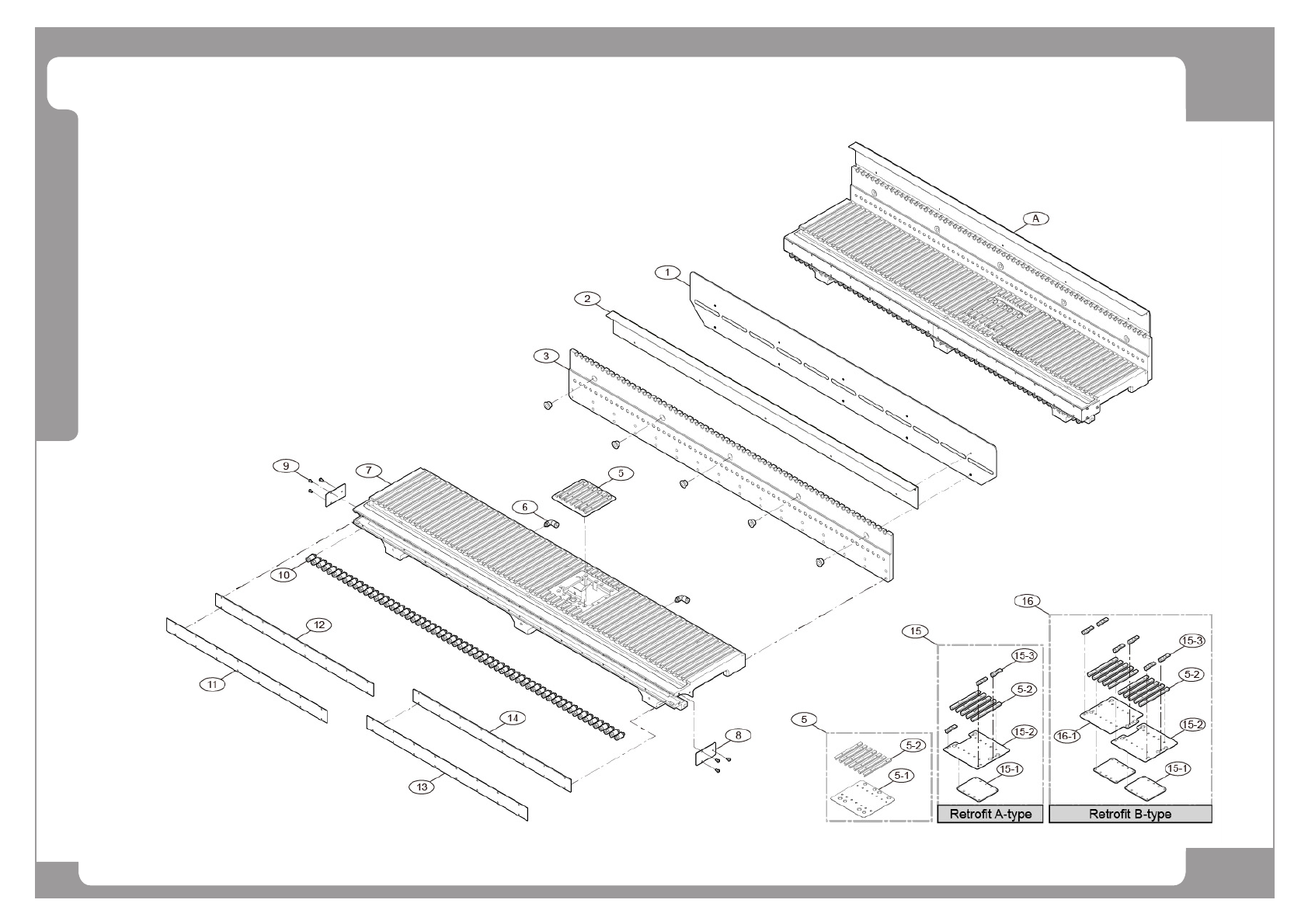

Feeder Base
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
A AM03-014087A FEEDER BASE STAGE TOTAL 1 AM03-012402A
1 FC09-001200C TOP_PLATE_BACK_HOLE 1 FC09-001200A
2 FC09-000901C TOP-PLATE-S 1 FC09-000901A
3 FC07-000033B VERTICAL LOCATOR 1
4 J70570262C M_90_CAP_TOP_PLATE 5
5 AM03-014393A ASSY,COVER_FEEDER_T_SLOT_SUB 2 FC15-002403A STANDARD
5-1 FC15-002954A COVER_NOCE_STAGE_C 1
5-2 FC07-001595A BLOCK_GUIDE_B_NONE_STAGE 17
6 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 2 HP06-900047
7 FC05-000469A FEEDER_BASE_STAGE_SM511 1
8 J7057213A SIDE CABLE COVER-FB 2
9 FC18-901830 BUTTON HEAD CAP SCREW 6
10 FC14-000876 COUPLER 60 HP06-900169
11 J90600351B FEEDERBASE_LEFT_COVER_PCB_ND 1
12 AM03-000694A ASSY,BOARD-FBLN 1
13 J90600352B FEEDERBASE_RIGHT_COVER_PCB_ND 1
14 AM03-000693A ASSY,BOARD-FBRN 1
15 AM03-014391A ASSY,COVER-RETROFIT_A_TYPE 1 WHEN 1 STAGE CAMERA
15-1 FC15-002834A COVER_NONE_STAGE_SUB 1
15-2 FC15-002832A COVER_NONE_STAGE 1
15-3 FC07-001594A BLOCK_GUIDE_B_NONE_STAGE 9
16 AM03-014392A ASSY,COVER-RETROFIT_B_TYPE 1 WHEN NO STAGE CAMERA
16-1 FC15-002833A COVER_NONE_STAGE-2 1
