MY(S)
21
Hermetically Sealed Relays: MY4(Z)H
Specifications
Contact Ratings
* With no icing or condensation.
Characteristics
Note: The above values are initial values.
*1. Measurement conditions: 1 A at 5 VDC using the voltage drop method
*2. Measurement conditions: With rated operating power applied, not including
contact bounce.
Ambient temperature condition: 23° C
*3. Measurement conditions: For 500 VDC applied to the same location as for
dielectric strength measurement.
*4. This value is for bifurcated contacts.
*5. Ambient temperature condition: 23° C
*6. This value was measured at a switching frequency of 120 operations per
minute.
Engineering Data
Load MY4H MY4ZH
Item
Resistive
load
Inductive load
cos
φ
= 0.4
L/R = 7 ms
Resistive
load
Inductive load
cos
φ
= 0.4
L/R = 7 ms
Rated load
3 A at 110 VAC
3 A at 24 VDC
0.8 A at 110 VAC
1.5 A at 24 VDC
3 A at 110 VAC
3 A at 24 VDC
0.8 A at 110 VAC
1.5 A at 24 VDC
Rated carry
current
3 A
Maximum contact
voltage
125 VAC
125 VDC
Maximum contact
current
3 A
Contact form 4DPDT 4DPDT (Bifurcated)
Contact materials Au plating + Ag
Ambient operating
temperature
−25 to 60° C
*
Ambient operating
humidity
5% to 85%
Contact resistance
*
1
50 m
Ω
max.
Operation time
*
2
20 ms max.
Release time
*
2
20 ms max.
Maximum
operating
frequency
Mechanical
18,000 operations/h
Rated load
1,800 operations/h
Insulation resistance
*
4
100 M
Ω
min.
Dielectric
strength
Between coil
and contacts
1,000 VAC at 50/60 Hz for 1 min.
(700 VAC between contacts of the same polarity.)
Between contacts
of different polarity
Vibration
resistance
Destruction
10 to 55 to 10 Hz, 0.5-mm single amplitude
(1.0-mm double amplitude)
Malfunction
10 to 55 to 10 Hz, 0.5-mm single amplitude
(1.0-mm double amplitude)
Shock
resistance
Destruction
1,000 m/s
2
Malfunction
200 m/s
2
Endurance
Mechanical
50,000,000 operations (5,000,000 operations
*
4
) min.
(operating frequency: 18,000 operations/h)
Electrical
*
5
100,000 operations (50,000 operations
*
4
) min. rated
load, switching frequency: 1,800 operations/h)
Failure rate P value
(reference value)
*
6
Single contacts: 100
μ
A at 1 VDC
Bifurcated contacts: 100
μ
A at 100 mVDC
Weight
Approx. 50 g
Maximum Switching Capacity Endurance Curve
MY4(Z)H MY4H
Note: The durability of bifurcated contacts is one-half that of single contacts.
DC inductive load
(L/R = 7 ms)
DC resistive load
AC resistive load
AC inductive load
(cos φ = 0.4)
0.1
0.5
1
5
5 10 50 100 500
Contact voltage (V)
Contact current (A)
110 VAC resistive load
24 VDC resistive load
10
50
100
500
012 3
Contact current (A)
24 VDC inductive load (L/R = 7 ms)
110 VAC inductive load
(cos φ = 0.4)
Number of operations (×10
4
operations)
MY(S)
22
Dimensions (Unit: mm)
Safety Precautions
Applicable Sockets
Use only combinations of OMRON Relays and Sockets.
Application Environment for Hermetically Sealed
Relays
Humid environments can cause insulation problems, which may result in short-
circuiting or unintended operation.
Solution
Do not use these Relays in any environment where the Relay will come into
contact with water vapor, condensation, or water droplets. This can reduce the
surface tension of the insulating beads and cause short-circuiting or unintended
operation due to poor insulation.
Relay Replacement
To replace the Relay, turn OFF the power supply to the load and Relay coil
sides to prevent unintended operation and possible electrical shock.
28.5 max.
2.6
Fourteen, 1.2-dia. × 3 oval holes
35 max. 6.4
22 max.
0.5
Relays with Plug-in Terminals or Soldered Terminals
MY4(Z)H
Terminal Arrangement/
Internal Connections
(Bottom View)
(The coil has no polarity.)
MY(S)
23

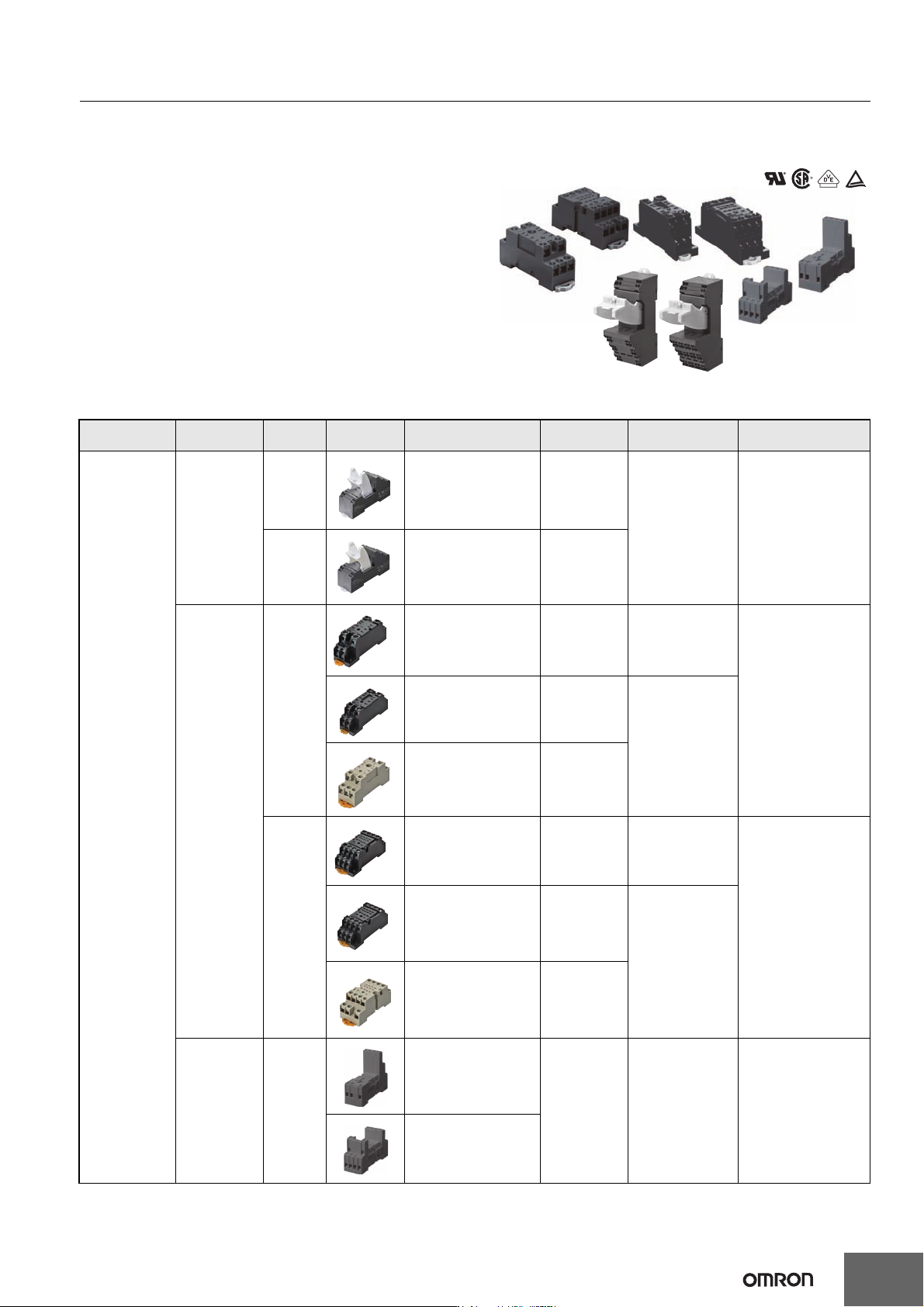

Sockets for MY
DIN-rail-mounted (DIN-rail) Socket
Conforms to VDE 0106, Part 100
• Snap into position along continuous sections of any
mounting DIN-rail.
• Facilitates sheet metal design by standardized mounting
dimensions.
• Design with sufficient dielectric separation between
terminals eliminates the need of any insulating sheet.
Specifications
Mounting
Terminal
type
No. of
poles
Appearance Model Carry current
Dielectric
withstand voltage
Insulation resistance
(see note 2)
DIN-rail-mounted
Socket
Push-In Plus
terminals
2 PYF-08-PU 10 A
2,000 VAC, 1 min 1,000 MΩ min
4 PYF-14-PU 6 A
Screw terminals
2
PYFZ-08-E 10 A 2,250 VAC, 1 min
1,000 MΩ min
PYF08A(-E) 7 A
2,000 VAC, 1 min
PYF08A-N (see note 3) 7 A (see note 4)
4
PYFZ-14-E 6 A 2,250 VAC, 1 min
1,000 MΩ min
PYF14A(-E) 5 A
2,000 VAC, 1 min
PYF14A-N (see note 3) 5 A (see note 4)
Rise-Up
terminals
2 and 4
Common
PYF14-ESS-B
12 A > 3 KV > 5 MΩ
PYF14-ESN-B
