A2 Automatic Dispenser V3 .0 11 according to the dispensing softw are reminder s. No need to a dd water to t he dry brush container . Add so me water to t he wet brush cont ainer (Do not exceed the cleaning wheel shaft )…
A2 Automatic Dispenser V3.0 10
Detailed steps as below:
1） Remove the connection pipe, lift the locking handle as figure to loosen the cleaning box.
2） Pull the cleaning box out as below figure.
3） Take the sponge brush and other parts out and clean them with water.
4） Put back of the sponge brush and other parts in proper order.
5） Put the cleaning box back, turn the locking handle to press the cleaning, install the water pipe.
2. Clean the cup
1） Remove the cup as figure
2） Pour out the sewage, clean the cup and refill
3） 80%-90% fresh water of the cup capacity.
4） Put the cup back and screw it down.

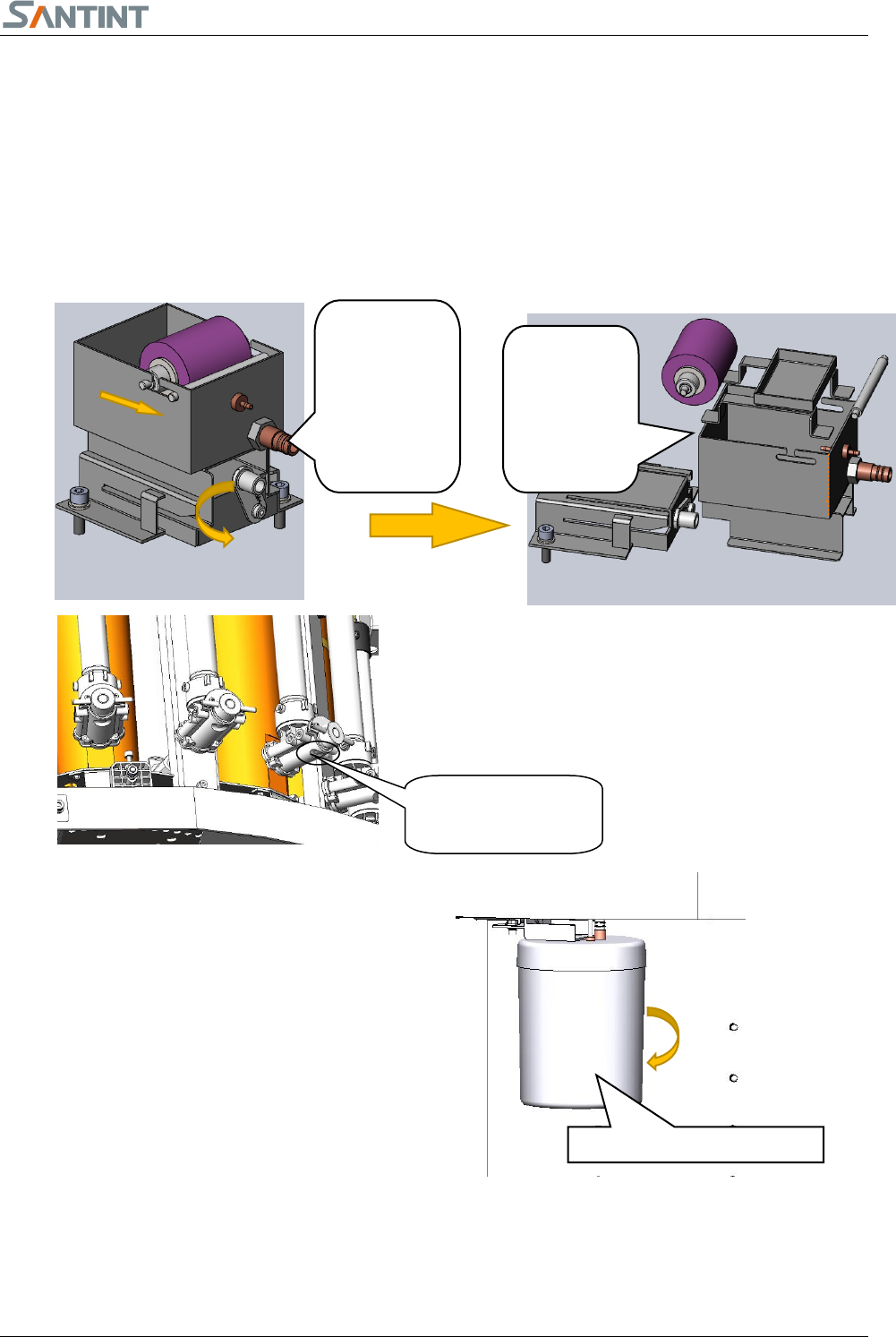

C. Cleaning of the type C built-in cleaning box.
The cleaning box is built-in. The daily maintenance and periodically maintenance shall be implemented
Take inner
parts out and
clean them
with water.
Remove the
connection
pipe, loosen
the cleaning
box as figure.
Clean bottom of all
the valve body
Rotate the cup to remove it.
A2 Automatic Dispenser V3.0 11
according to the dispensing software reminders.
No need to add water to the dry brush container. Add some water to the wet brush container (Do not
exceed the cleaning wheel shaft). The clean shall be done by following manners to ensure the cleaning
effects.
Detailed steps as below：
1) Open the side door of the left front of the dispenser then turn the lock handle clockwise to loose the
cleaning box;
2) Pull the cleaning box out;
3) You may clean the brush wheel and the cleaning box separately. Rotate the wet brush for a better
clean of the cleaning box. Clean each valve bottom thoroughly.
4) Put the cleaning box back and push down lock handle. Lock the side door.
Lock Handle
Brush Assy
Dry
Brush
Wheel
Wet Brush
Wheel
Cleaning
Box
Clean bottom of
all the valve
bodies
A2 Automatic Dispenser V3.0 12
8. Maintenance
Routine maintenance is needed to ensure that the machine remains in good working condition and has a long
service life. Maintenance and any repairs should only be carried out by qualified personnel.
8.1
D
D
a
a
i
i
l
l
y
y
M
M
a
a
i
i
n
n
t
t
e
e
n
n
a
a
n
n
c
c
e
e
Add colorant in time when software shows low colorant warning
If the colorant in the canister is too little, less than 0.5L，which will affect
the accuracy of the dispensing. Then cover the canister lid
Keep machine power on; even it is not used.
8.2 Periodical Maintenane
Do the following maintenance every 1-6 months：
Check stirring paddle inside each canister, see whether it works; if not, repair.
Lubricate screw and guiding rod in every six months
If the machine has not been used over one week, it shall be powered on and recirculate it automatically
before usage.；
9. Replacing Spare Parte
1）Replacing Outer Canister:
Loose the three screws which fix the canister on the turntable using screwdriver, and then drive the canister
anticlockwise to take off the canister.
2） Replacing Inner Canister：
a. If you want to replace the inner canister, you will take off the outer canister first.
b. Remove the screw on the bracket to fix the canister, pull out the bracket for 10mm. Pay attention to not to
pull out the bracket too much to avoid the colorant leaking off the canister.
c. Rotate the canister anticlockwise, the canister can be taken off the turntable
Fig8.2.1
Screw
Guide Pin
