A2 Automatic Dispenser V3 .0 3 Fig 4.2 Fig 4.1 Fig 4.2 4. Machine Compo sition Canister Assembly ： contai ner of colorant i s with piston pum p and valv e, on the valv e there is a valve handle and a nozzle for color a…
A2 Automatic Dispenser V3.0 2
2. Specifications
Type：A2 Model：A2-100%/Hummingbird
Item
Content
Item
Content
Number of Canisters
16/14/12/10
Min Dispensing
100%-0.077ml（1Y/384）
Hummingbird-0.015ml(1y/2000))
Max Flow Rate
0.60ltr/min
Canister Size
1.8/3.8 ltr
Pump Size
62mltr
Stirring Speed
20 Revolutions/minute
Power
≤100W
Power Supply
See the Nameplate
Can Size
(D x H)
MAX 320mm x 400mm
MIN 80mmX100mm
Stirring Timing
Stir 10 minutes every 4 hours or
Stir 1 minute every 1 hour
Noise Level
＜70dBA
Weight：
130±2 kg
Machine Size (Height x Width x Depth)
1300X710X840（mm）
Notes：Stirring time is available for customerization
3. Safety Instructions
1. Please read this manual carefully before installation and operation.
2. Only trained professionals are allowed for operation and/or maintenance.
3. Prolonging wire is prohibited.
4. The machine is only available for 0.5 liter to 20 liter (40kg) paint cans.
5. The machine should be powered on all the time to make the stirring available.
6. The side door shall be closed prior to close the top cover.
7. Press the emergency stop button, the machine will stop working and the stirring will stop at the same time.
8. If it is not used for a long time, the canisters should be cleaned and plugged off.
9. During transportation, the machine should be leveled, preventing from being shocked, pressed, and bottomed
up or side faced on the ground. The machine should be kept in ventilated and dry room which is
moisture-proof fire-proof.
10. It is forbidden to work the machine in the inflammable and explosive environment.
11. No hot-plug of the serial port line.
A2 Automatic Dispenser V3.0 3
Fig 4.2
Fig 4.1
Fig 4.2

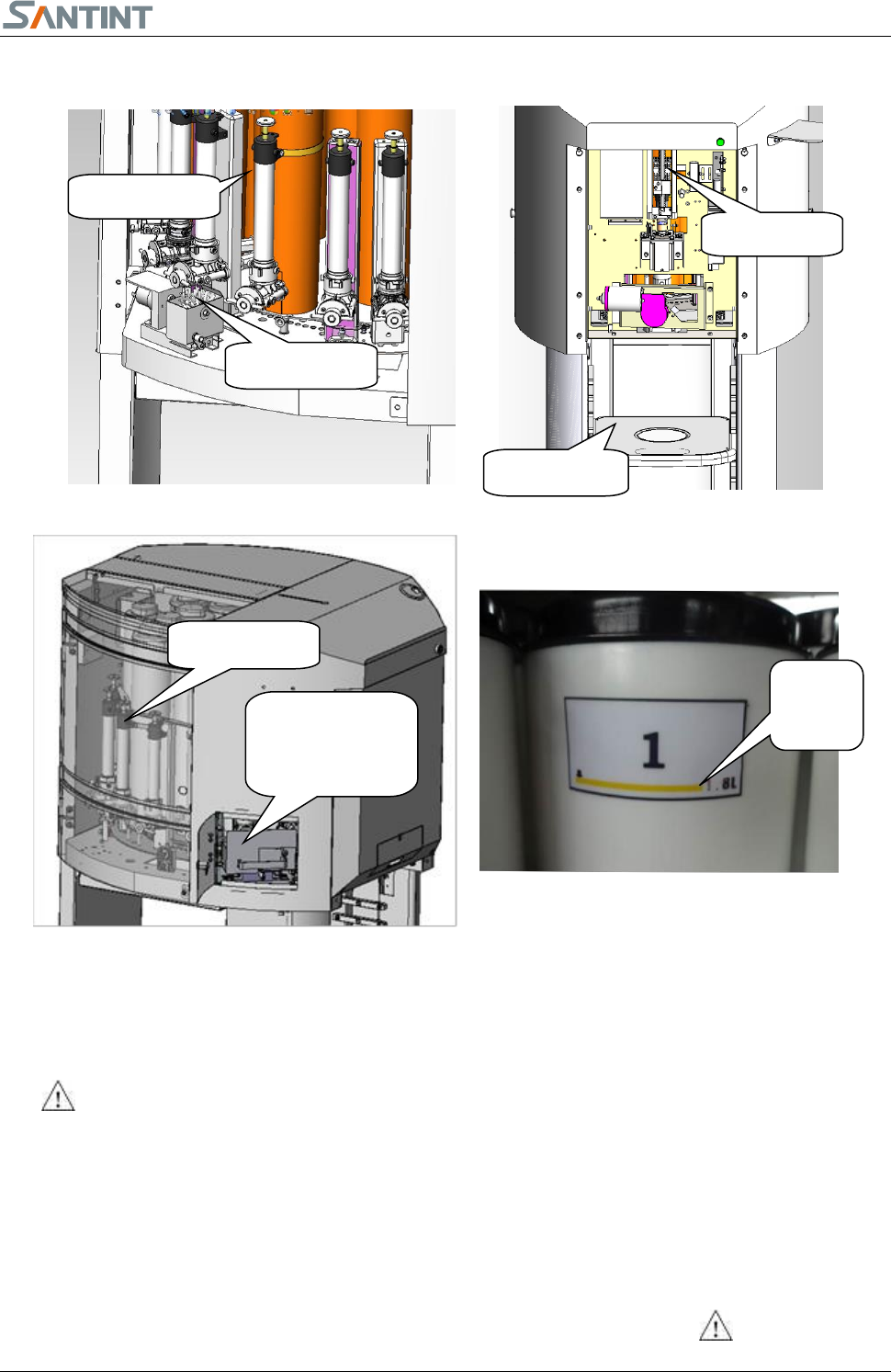

4. Machine Composition
Canister Assembly：container of colorant is with piston pump and valve,
on the valve there is a valve handle and a nozzle for colorant dispensing.
1. Do not make the added colorant exceed the maximum volume of
the canister. See the label on the canister.
2. Keep the nozzle clean.
3. The plastic lid of the canister shall be properly covered to prevent dryness.
Turntable assembly：canisters are fixed on the turntable, which can be turned to send the canisters to
dispensing position, stirring inside canisters also can be carried out while turning. Stirring avoids the
Washing Assy
Canister Assy
Lifting Assy
Loading Plate
Canister Assy
Dry-wet
Combination
Cleaning Assy
Max
Level
Fig 4.3
Fig 4.4
A2 Automatic Dispenser V3.0 4
Fig. 4.5
colorants depositing.
Washing assembly：Clean the nozzle after colorant dispensing. The washing wheel wants to be keeping clean
to insure the washing function for the nozzles.
Lifting assembly：with the assistance of electrical control system, the
machine can make the piston up and down so to dispense colorant out.
Only authorized personnel are allowed to open the front door for service.
Loading plate：base paint can is located here. Put bracket up or side face
according to the size of paint cans. Photoelectric sensor（Fig. 4.5）will
sense the base paint can.

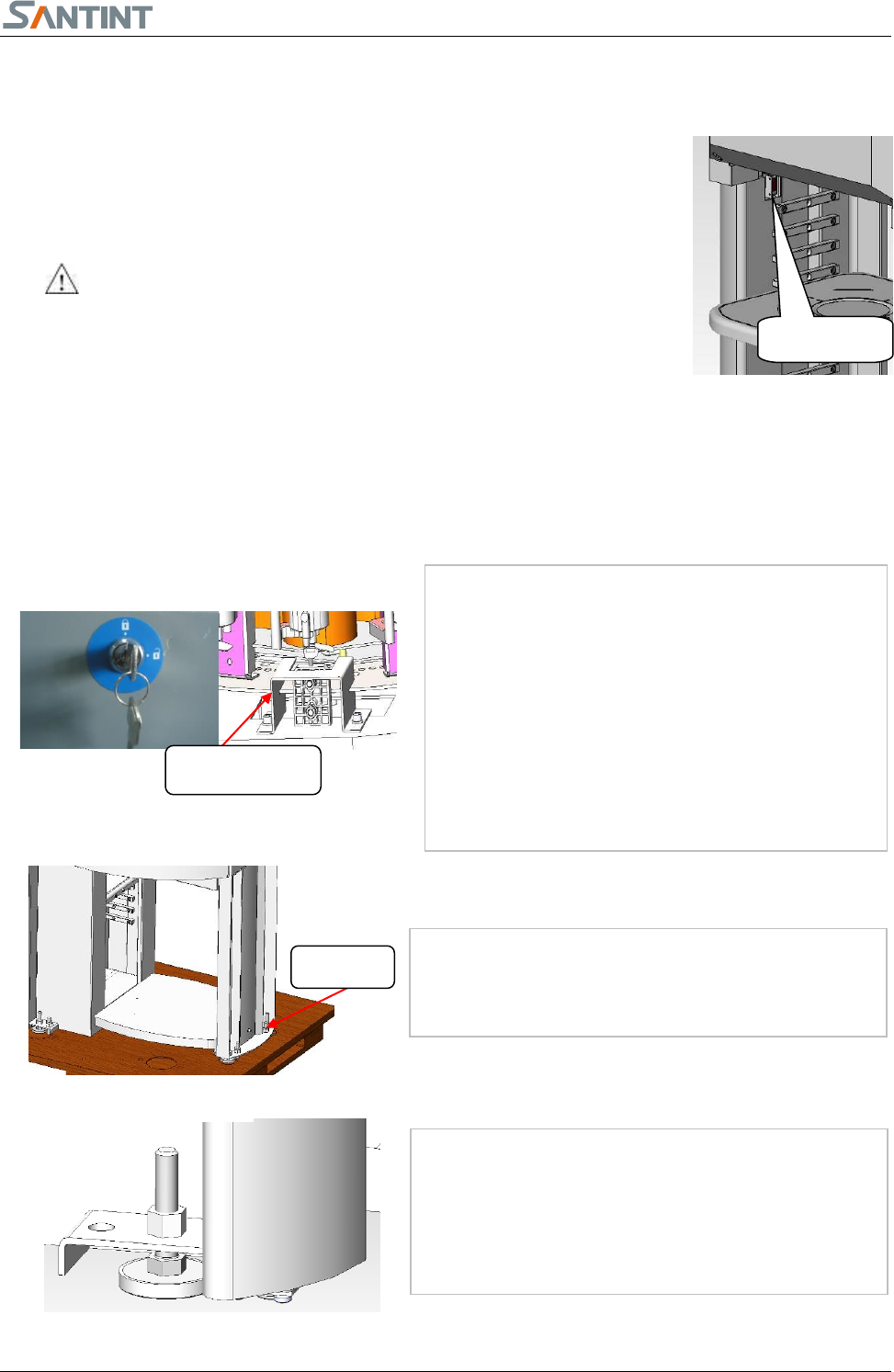

5. Installation
5
5
.
.
1
1
M
M
a
a
c
c
h
h
i
i
n
n
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
i
i
n
n
g
g
Unpack the wooden case and inner film of the
machine with necessary tools.
Take out tool box, check the items inside according
to the packing list. Preserve the tool box for next
use.
Get the side door keys from the tool box and
unlock the lock to open the side door.
Remove the transportation fixing plates using inner
hexagon spanner 5.
Remove the four screws on the foundation by using
the spanner 19. Move the machine to the working
site.
Use the spanner 19 to rotate the four feet clockwise.
Level the machine. Make sure the machine doesn’t
move or make noise.
Fig 5.1.3
Fig 5.1.1
Fixing Plate
Fig 5.1.2
M12Bolt
