Installation Manual, Station Software Version 704.01 04/2010 Edition Fig. 6-3: Finaliz ing the installation → Click the Finish button. → Reconnect the USB keyboard to the machine computer. → Reconnect the USB CD drive to…
Installation Manual, Station Software Version 704.01 04/2010 Edition
6.1 Welcome screen
Fig. 6-2: Welcome screen
→ Click the Next button.
The necessary files are installed on the Vision computer.
6.2 Finalizing the installation
Note:
The status only lists the programs that have just been installed.
If errors occurred during installation, the status is indicated by the Error button being
displayed next to the program name instead of the Ok button.
→ If you wish to read the log of the installation of any program, click the Ok (or Error) button next to the
name of the program. The Notepad is started and displays the appropriate file.
42 of 60
Installation Manual, Station Software Version 704.01 04/2010 Edition

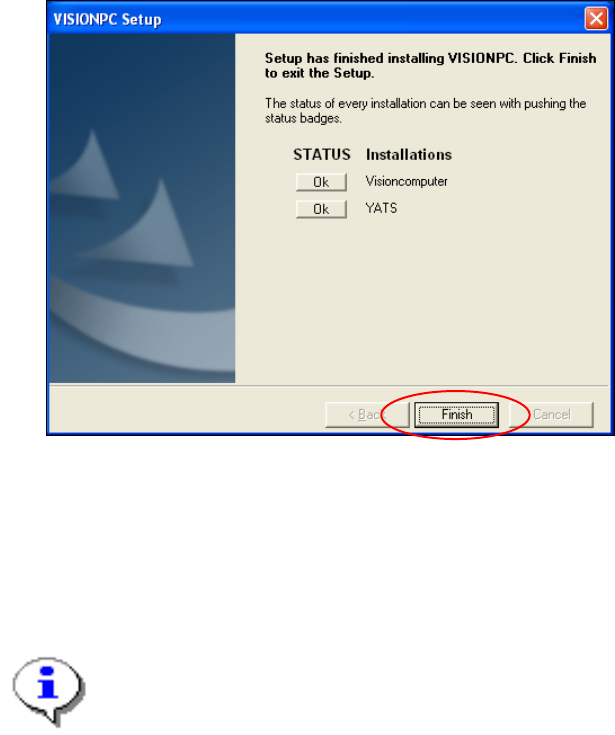

Fig. 6-3: Finalizing the installation
→ Click the Finish button.
→ Reconnect the USB keyboard to the machine computer.
→ Reconnect the USB CD drive to the machine computer.
→ Switch the video multiplexer from the Vision computer to the machine computer.
Note:
To establish the connection between the SIPLACE Vision computer software and the
SIPLACE station software after installation has been completed, the Vision computer and
the machine computer must first be shut down and the machine must then be switched off
completely.
43 of 60
Installation Manual, Station Software Version 704.01 04/2010 Edition
→ To do this, open the Start menu and choose Programs Æ SIPLACE Æ Shutdown Vision_SR (all).
Fig.6-4: Shutting down the machine computer and Vision computer
→ Switch the machine off when the computer systems have shut down.
→ Switch the machine back on again. This then reboots the Vision computer and the machine computer.
44 of 60
