Installation Manual, Station Software Version 703.03 01/2011 Edition 4 Requirement s 4.1 SIPLACE X- and SX-series sof tware components 4.1.1 Station The station uses one of the following operating sy stem configurations …
Installation Manual, Station Software Version 703.03 01/2011 Edition

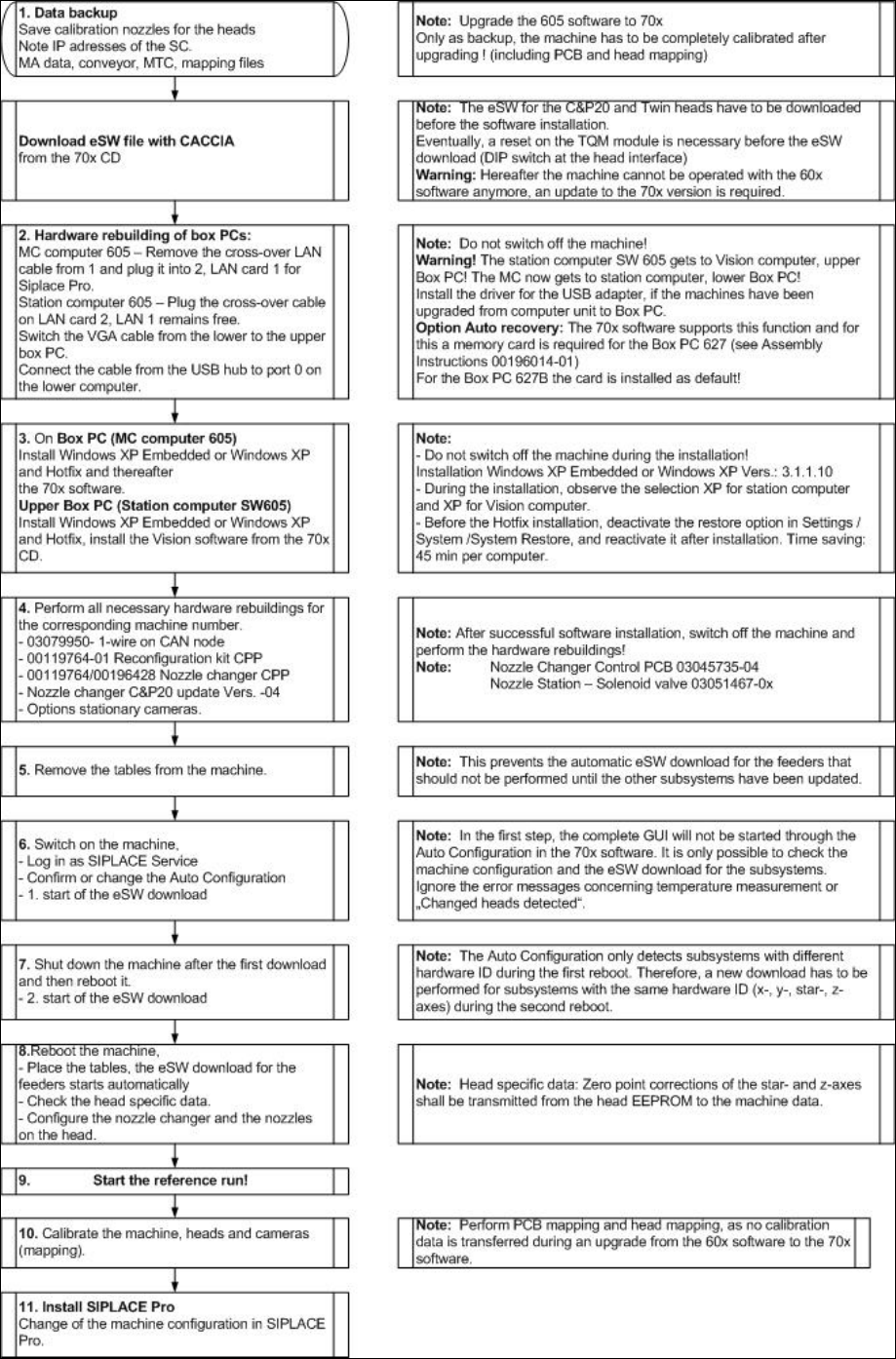

Flowchart: Upgrading from 60x software versions
12 of 54
Installation Manual, Station Software Version 703.03 01/2011 Edition
4 Requirements
4.1 SIPLACE X- and SX-series software components
4.1.1 Station
The station uses one of the following operating system configurations on the machine and Vision
computer(s):
- Microsoft Windows XP Embedded with Service Pack 2
- Microsoft Windows XP Professional (incl. Service Pack 3 and most recent hotfixes)
The machine computer and Vision computer software can optionally be used in one-computer or two-
computer operation.
4.1.2 Machine components
The following versions of other machine components are required for the station software to function
correctly:
SIPLACE station software SIPLACE Vision SIPLACE Pro
Version 703.03 Version 421 Version 7.1
Caution:
The functional statuses of the station computer, Vision computer and SIPLACE Pro software
must be compatible.
13 of 54
Installation Manual, Station Software Version 703.03 01/2011 Edition
14 of 54
4.1.3 Embedded software
You will find the used eSW versions listed in the eSW_Firmware_Files.txt file in the Documentation
directory on the installation CD.
4.1.3.1 Composition of the file name
1..6 7 8 9 10 11 12 13 14 15 16 17 18 19
Subsystem
name
Separa-
tor
Variant ID Hardware
ID
1)
Target
2)
Version Release . File type
_
0 = no
variant
00
0 = BIOS 00
H
00
H
.
HEX
_ A = Variant
(SOKO)
…
1 = App 1
… …
.
JED
See table in
section
4.1.3.2
_ ...
99
2 = App 2 FF
H
FF
H
.
BHX
1)
Change compared with old file name (from one to 2 digits)
2)
Extended to second CAN
