Installation Manual, Station Software Version 703.03 01/2011 Edition

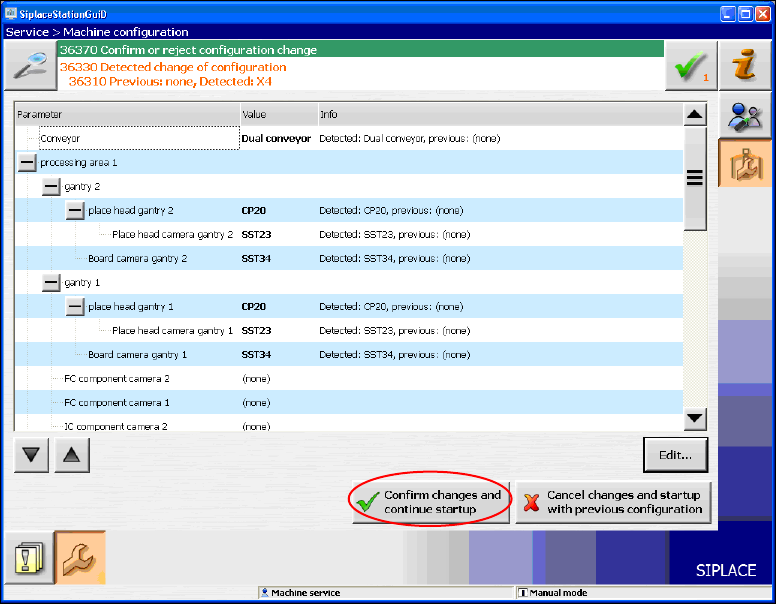

The following window is displayed for the X-series machines. Here you can edit, confirm or reject the Auto-
configuration.
Fig. 7-4: Confirming Auto-configuration for X-series
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
42 of 54
Installation Manual, Station Software Version 703.03 01/2011 Edition

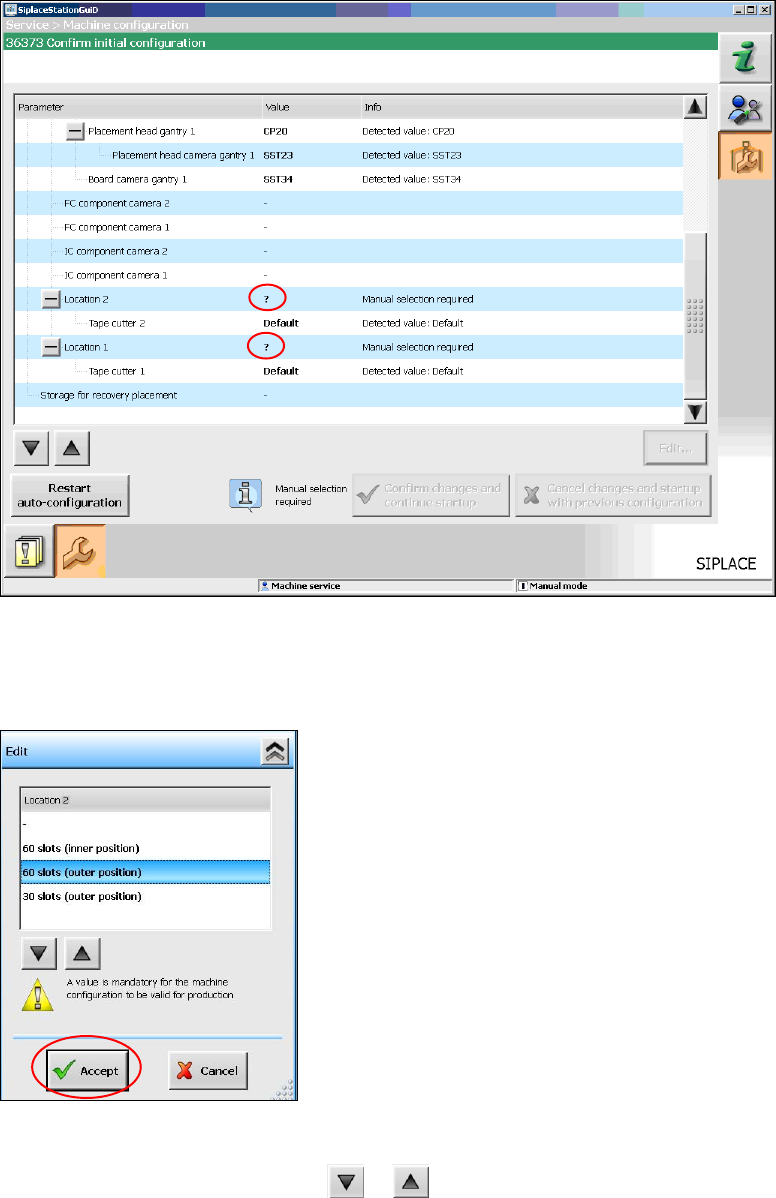

For the placement machine SX1/SX2 the following window is displayed, in which the Manual selection
required note informs, that the table configuration has to be selected manually, as this is not detected
automatically.
Fig. 7-5: Selecting table configuration
→ Click the ? question mark next to Location 2.
The selectable table configurations are displayed.
Fig. 7-6: Possible table configurations
→ Select a table configuration with or .
→ Click the Accept button.
→ Repeat the steps for Location 1.
43 of 54
Installation Manual, Station Software Version 703.03 01/2011 Edition
When you have selected all table configurations the following window is displayed, in which you confirm
the Auto-configuration.
Fig. 7-7: Confirming Auto-configuration for SX-Serie
→ Click the Confirm changes and continue startup button to confirm the Auto-configuration.
If the manual tray Carrier SX is used, a manual setting is required. See the Version Description to the
station software, item number 00196499-04.
7.1 Checking/Updating the embedded software
If the correct eSW versions are not available on the machine, the machine boot gets interrupted.
→ In this case, perform an eSW download.
→ Start an overall reference run for the machine.
7.2 Storage location of the machine files (calibration data etc.)
The machine-specific configuration, measurement and parameter data is stored in XML files under
C:\Sirio\Work\Individual. These XML files contain all the calibration data.
