NEW : ASM SmartStencil ASM SmartStencil is our complete solution for managing the service life of stencils. It is smart, RFID-based, and transparent. Never again will the use of outdated stencils hurt the quality and eff…

NanoClear® stencil coating

Features and benets:

■ Increases efficiency

- Reduces the frequency of cleaning

- Allows time for more production or SPI

■ Reduces cost

- Less cleaning uses less USC fabric and solvent

- Less expensive than alternative wipe-on coatings

- Easy to apply to new or existing stencils

- Chemically inert when dry to ensure no possible

interaction with paste

- Forms a permanent bond and can be reapplied

as it only adheres to uncovered areas

- REACH compliant

- Compatible with stainless steel or nickel stencils

- One pouch will coat one stencil (measuring up to

29“ x 29”)

NanoClear

STENCIL COATING

Part number Description

SAP DEK

03128620 431800 Box of 10 wipes

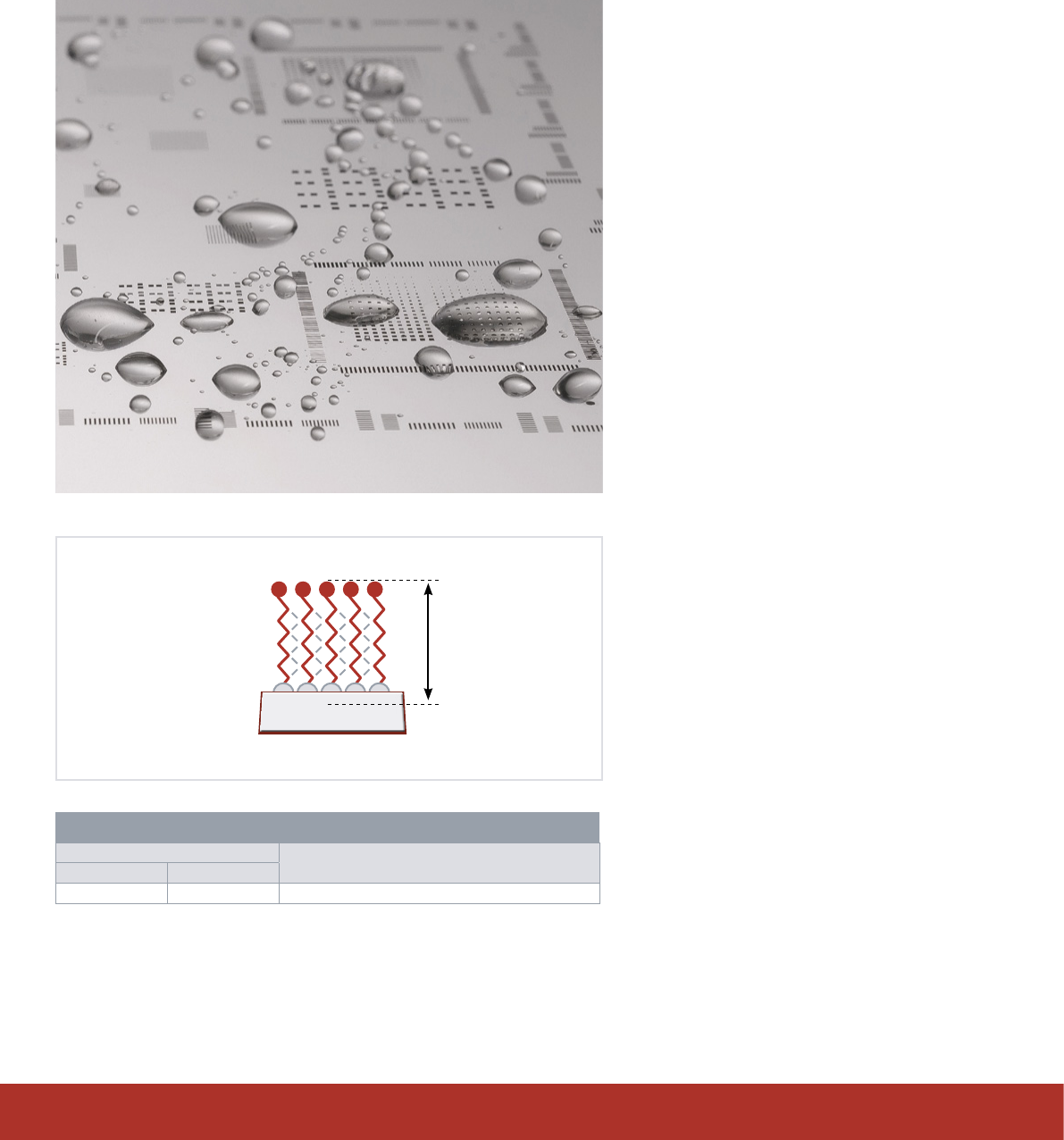

Self-applied fluxophobic stencil coating technology delivers high performance

stencils in a cost-effective wipe. Designed to overcome the challenges of smaller

aperture sizes, the NanoClear® coating offers a unique solution to improve cleaning

effectiveness and reduce cleaning frequency.

Functional

tail group

repels ux

Phosphonate

head group

bonds to stencil

5 nm max.

NEW: ASM SmartStencil

ASM SmartStencil is our complete solution for managing the service

life of stencils. It is smart, RFID-based, and transparent. Never again

will the use of outdated stencils hurt the quality and efficiency of your

printing processes.

Declines in tension and surface quality, which are normal as

stencils age, reduce the quality, yield and process stability

of the solder paste printing process. ASM SmartStencil is an

RFID-based solution that provides for the rst time a simple,

convenient, and seamless solution for monitoring the service life

of stencils.

Its core components are ASM-supplied RFID tags which are

applied by the stencil manufacturer – or by the user – to each

stencil to identify it and store basic data about it. DEK printers

equipped with the ASM SmartStencil option record each printing

cycle on the RFID tag even if the stencil is used on dierent lines.

The basic data and print cycles stored on the RFID tags can be

read by DEK printers with the ASM SmartStencil option and by

ASM handheld devices. The ability to store warning thresholds

and maximum values for the number of print cycles makes

seamless process control possible. For example, when the

threshold level is reached, the system can use this information

to order a new stencil. The necessary data can also be stored on

the RFID tag. When the maximum value is reached, the printer

stops the printing process.

Functions and benets

■ Process stability through seamless service life management

■ ASM SmartStencil RFID tags available for stencils from all

manufacturers

■ Customers can apply RFID tags themselves

■ Service life data can be stored on and recalled directly from the

stencil RFID

■ Ability to store a stencil profile (technical data, manufacturer,

reordering data, storage locations, etc.)

■ DEK printer with the ASM SmartStencil option write to the tags

with each print cycle

■ Manual entries possible with the ASM RFID handheld device

■ Customer-definable warning and maximum thresholds

■ Warning threshold optimize ordering processes and in-house

logistics

■ Reaching the maximum threshold stops the printing process; it

can only be overwritten by authorized personnel

Process Support Products

ASM: Stencils from the global No. 1

AVAILABLE FEATURES AND PARTS:

Part number

SAP Description Unit

03216102-01 Smart Printer Hardware (DEK Horizon) Each

03215953-01 Smart Printer Hardware (DEK NeoHorizons

and DEK Galaxy)

Each

03216105-01 Offline Unit (EU and ETSI Model) Each

03220448-01 Offline Unit (US and FCC Model) Each

03216909-01 RFID Tag Each

03216106-01 RFID Multi Pack & Fitment guide 50

AVAILABLE MPU‘S (MACHINE)

Part number

SAP Description Unit

03221004-01 Smart Printer Hardware MPU (DEK Horizon) Each

03221003-01 Smart Printer Hardware MPU

(DEK NeoHorizons and DEK Galaxy)

Each

ASM SmartStencil – Application and positioning

Stencil with

DEK VectorGuard™ framing solutions

The RFID tag must be

positioned on the left side

centered to the print layout.

Adhesive stencil

ASM

SmartStencil

mit RFID tag

ASM

SmartStencil

mit RFID tag

18 mm 1 mm
