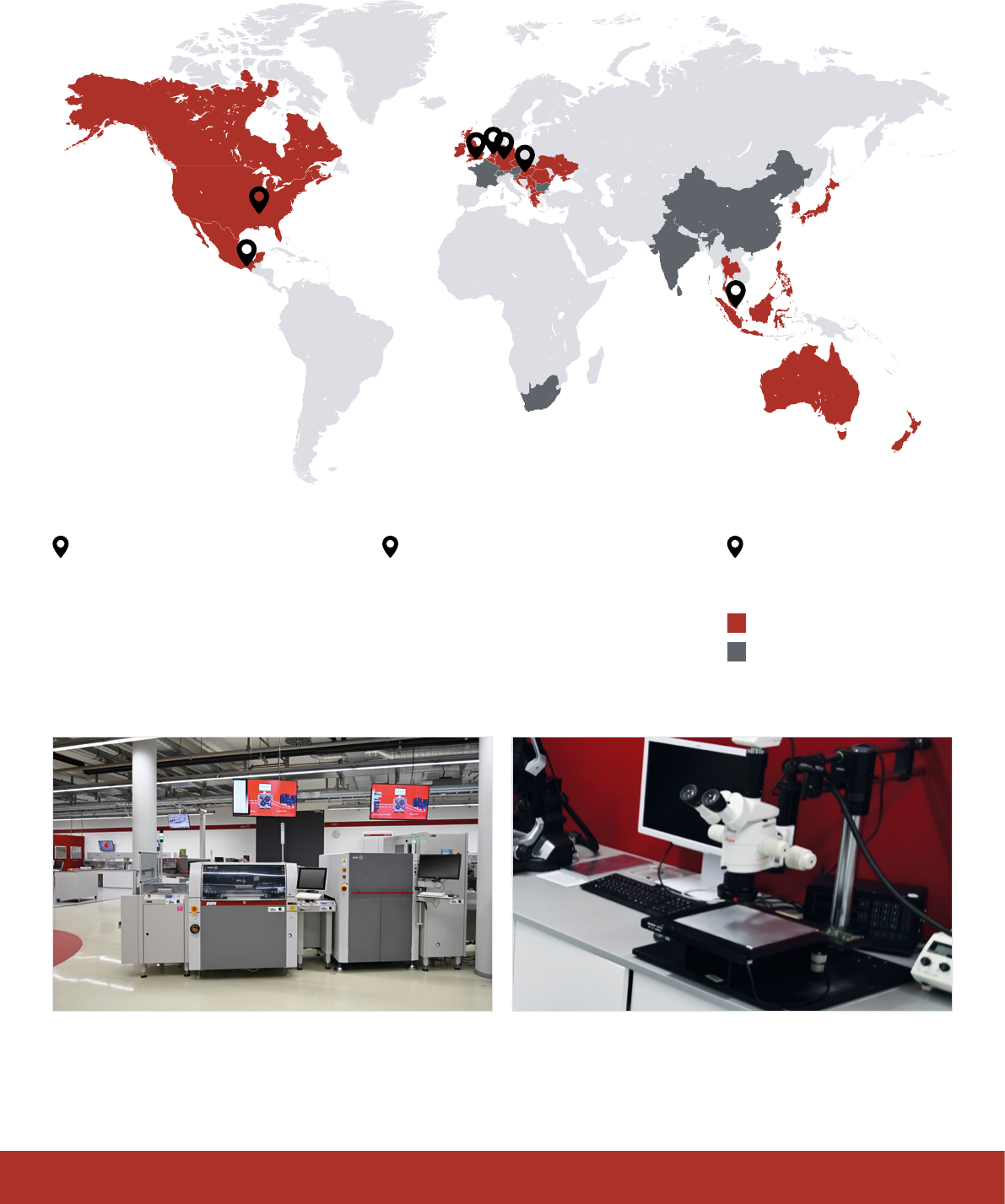

ASM Stencil network
AMERICAS
■ Memphis (US)
■ Guadalajara (Mexico)
EUROPE
■ Györ (Hungary)
■ Bad Vilbel (Germany)
■ Oirschot (Netherlands)
■ Weymouth (England)
ASIA
■ Singapore
ASM direct support
Stencil partner network
ASM stencil operations
Real-life SMT lines in the SMT Centers of Competence are used
to provide application support and run tests including SPI analysis.
Tests in labs featuring modern equipment confirm
the high quality of ASM stencils.
5
DEK Fine Grain stencils
DEK Fine Grain stencils can be used with the DEK Mesh-
mounted frames, DEK VectorGuard
TM
Classic and DEK
VectorGuard
TM
High Tension frame systems. Fine grain stainless
steel stencils provide smoother laser-cut aperture walls for
improved paste release and better material transfer efficiency.
A cost-effective alternative to nickel, fine grain stainless steel is
ideal for challenging dimensions and high-density assemblies.
Achieving a finer grain of stainless steel, DEK Fine Grain stencils
provide superior paste release and a smoother stencil surface.
DEK Stencil solutions – stencil
technical specification
ASM LASER CUT STENCIL
Standard stainless
steel
Laser cut nickel Fine grain stainless
steel
Standard
E-form nickel
Platinum
E-form stencil
Material type 304 PHD
Nickel Fine grain SS Hard nickel Hard nickel
Material hardness (HV) ≥370 >470+ ≥370 500 +/-50 500 +/-50
Grain size (µm) 16-25 1 ≤ 2 1 0.6
Thickness available (µm) 80-250 100-175 80-250 75- 200 20-230
Thickness tolerance 4% 7% <2% 10% <5%
Area ratio window >0.66 >0.6 >0.55 >0.5 >0.5
Sheet width max 690 mm 584 mm 610 mm 610 mm 584 mm
Apertures size tolerance ±5 µm ±5 µm ±5 µm ±10 µm ±4 µm
6
|
Process Support Products
|
ASM: Stencils from the global No. 1
ASM LASER CUT STENCIL
Standard stainless
steel
Laser cut nickel Fine grain stainless
steel
Standard
E-form nickel
Platinum
E-form stencil
Material type 304 PHD
Nickel Fine grain SS Hard nickel Hard nickel
Material hardness (HV) ≥370 >470+ ≥370 500 +/-50 500 +/-50
Grain size (µm) 16-25 1 ≤ 2 1 0.6
Thickness available (µm) 80-250 100-175 80-250 75- 200 20-230
Thickness tolerance 4% 7% <2% 10% <5%
Area ratio window >0.66 >0.6 >0.55 >0.5 >0.5
Sheet width max 690 mm 584 mm 610 mm 610 mm 584 mm
Apertures size tolerance ±5 µm ±5 µm ±5 µm ±10 µm ±4 µm

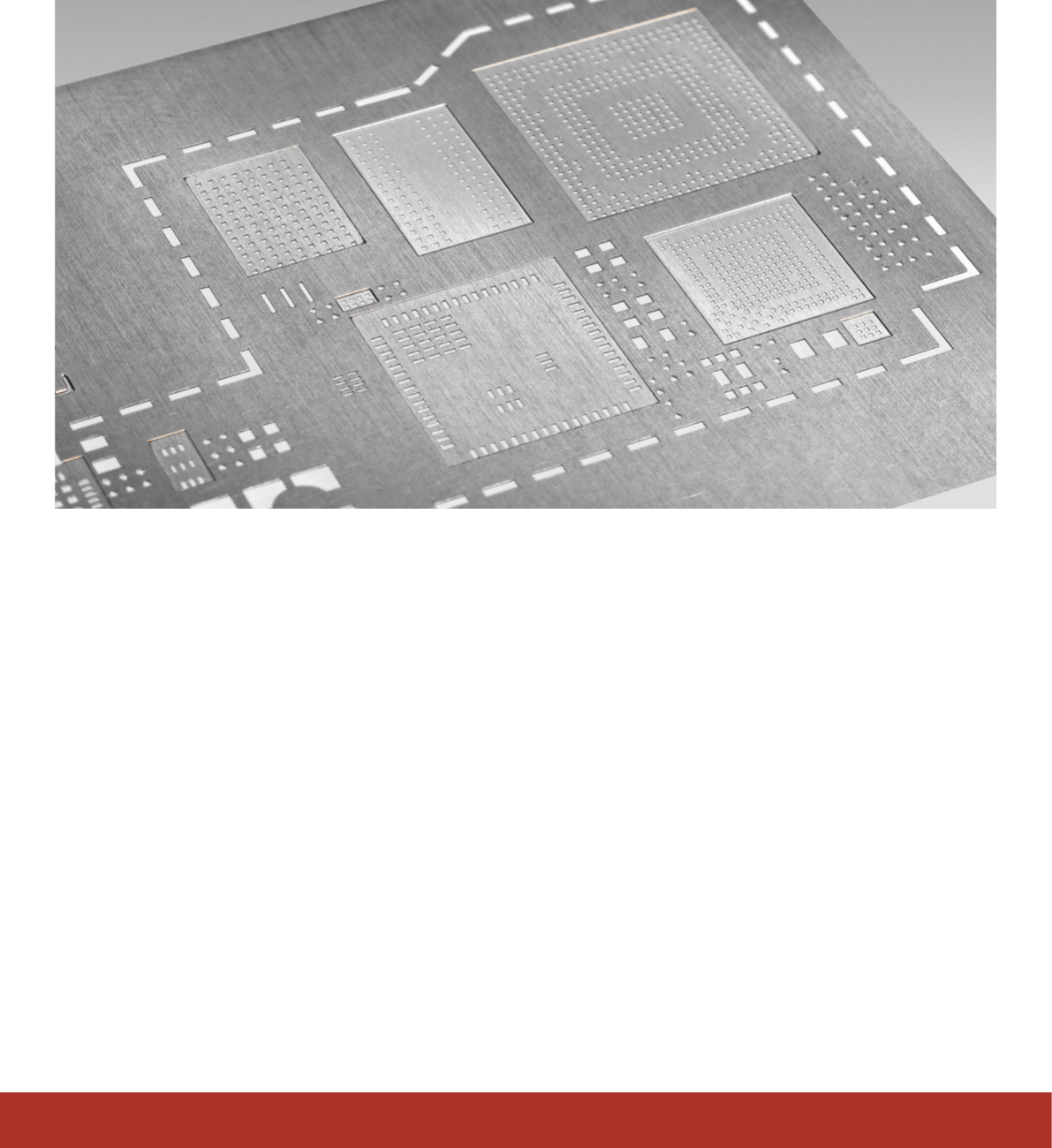

DEK Multi-level stencils
Ideal for ensuring optimized solder paste height and volume for components that are
distributed over a wide area, DEK Multi-level (step) stencils are produced with the latest
micro-milling technology to ensure exceptional accuracy and repeatability.
DEK Multi-level (step) stencils are available in stainless steel
or nickel and are ideal for printing paste on SMT boards with
ne pitch parts arranged over a large area. These stencils
provide excellent print performance for applications with micro
BGAs,
0.3 mm QFPs and small components such as 0201s metric, as
well as packaging applications and release of specialty solder
paste formulations
Multi-level stencils are available mesh mounted onto industry-
standard frames and are available for the DEK VectorGuard™
Classic and DEK VectorGuard
TM
High Tension frame systems.
Benets:
■ Flexible local adaptation to any component mix
■ Maximum positioning accuracy
■ Improved solder paste homogeneity
■ Improved repeat accuracy thanks to extra-smooth surface
structure and high-precision edges
■ Minimized paste wastage through optimized surface structure
■ Significant reduction of paste residue in shadow areas
■ Flexible design of pressure-sensitive areas
■ Significant squeegee pressure reduction thanks to a modified
ramp profile
