NEW: ASM SmartStencil
ASM SmartStencil is our complete solution for managing the service
life of stencils. It is smart, RFID-based, and transparent. Never again
will the use of outdated stencils hurt the quality and efficiency of your
printing processes.
Declines in tension and surface quality, which are normal as
stencils age, reduce the quality, yield and process stability
of the solder paste printing process. ASM SmartStencil is an
RFID-based solution that provides for the rst time a simple,
convenient, and seamless solution for monitoring the service life
of stencils.

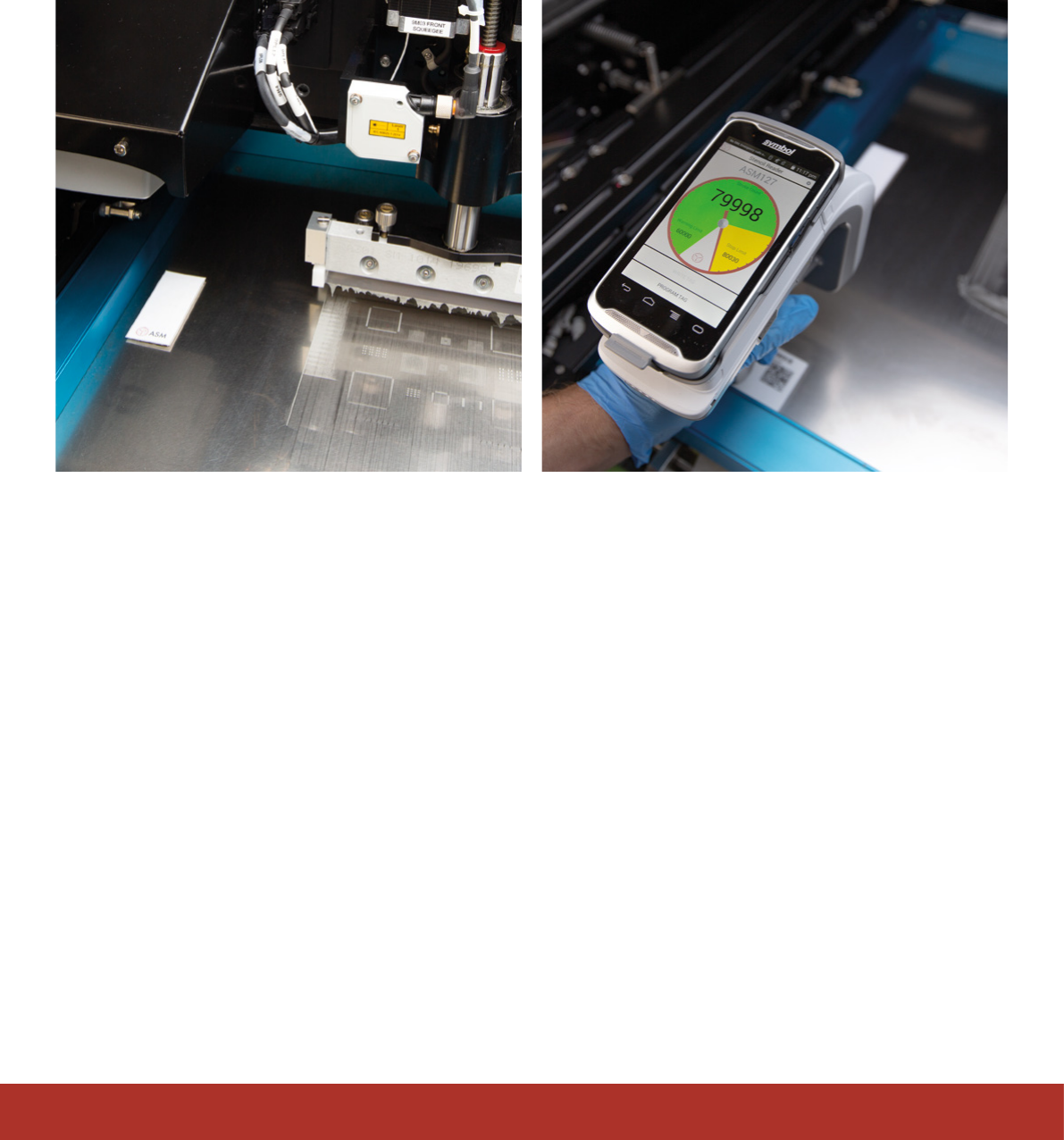

Its core components are ASM-supplied RFID tags which are
applied by the stencil manufacturer – or by the user – to each
stencil to identify it and store basic data about it. DEK printers
equipped with the ASM SmartStencil option record each printing
cycle on the RFID tag even if the stencil is used on dierent lines.
The basic data and print cycles stored on the RFID tags can be
read by DEK printers with the ASM SmartStencil option and by
ASM handheld devices. The ability to store warning thresholds
and maximum values for the number of print cycles makes
seamless process control possible. For example, when the
threshold level is reached, the system can use this information
to order a new stencil. The necessary data can also be stored on
the RFID tag. When the maximum value is reached, the printer
stops the printing process.
Functions and benets
■ Process stability through seamless service life management
■ ASM SmartStencil RFID tags available for stencils from all
manufacturers
■ Customers can apply RFID tags themselves
■ Service life data can be stored on and recalled directly from the
stencil RFID
■ Ability to store a stencil profile (technical data, manufacturer,
reordering data, storage locations, etc.)
■ DEK printer with the ASM SmartStencil option write to the tags
with each print cycle
■ Manual entries possible with the ASM RFID handheld device
■ Customer-definable warning and maximum thresholds
■ Warning threshold optimize ordering processes and in-house
logistics
■ Reaching the maximum threshold stops the printing process; it
can only be overwritten by authorized personnel
16
|
Process Support Products
|
ASM: Stencils from the global No. 1
AVAILABLE FEATURES AND PARTS:
Part number
SAP Description Unit
03216102-01 Smart Printer Hardware (DEK Horizon) Each
03215953-01 Smart Printer Hardware (DEK NeoHorizons
and DEK Galaxy)
Each
03216105-01 Offline Unit (EU and ETSI Model) Each
03220448-01 Offline Unit (US and FCC Model) Each
03216909-01 RFID Tag Each
03216106-01 RFID Multi Pack & Fitment guide 50
AVAILABLE MPU‘S (MACHINE)
Part number
SAP Description Unit
03221004-01 Smart Printer Hardware MPU (DEK Horizon) Each
03221003-01 Smart Printer Hardware MPU
(DEK NeoHorizons and DEK Galaxy)
Each

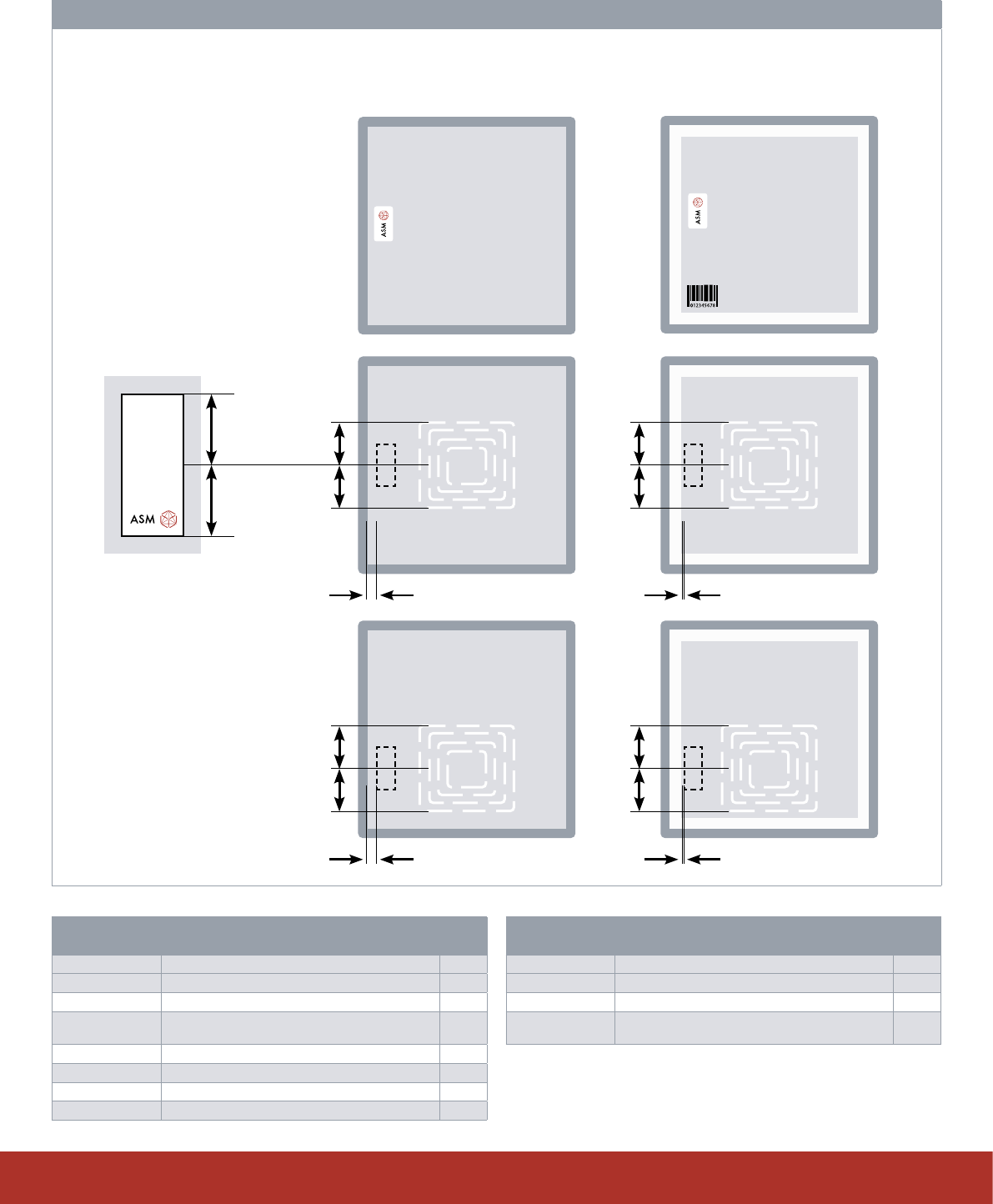

ASM SmartStencil – Application and positioning
Stencil with
DEK VectorGuard™ framing solutions
The RFID tag must be
positioned on the left side
centered to the print layout.
Adhesive stencil
ASM
SmartStencil
mit RFID tag
ASM
SmartStencil
mit RFID tag
18 mm 1 mm
x
x
y
y
18 mm 1 mm
x
x
17
