1 Retrofitting Instructions for Coplanarity Option SIPLACE 80 F4/(F4-6)/F5 1.5 Circuit Diagram s including Views f or Control Unit Edition 05/99 1 - 7 Fig. 1.5.2 Sensor Cable: Coplanarity; Item No. 00336793-01 (Sensor -&…
SIPLACE 80 F4/F5 1 Retrofitting Instructions for Coplanarity Option
Edition 05/99 1.5 Circuit Diagrams including Views for Control Unit
1 - 6
- 2 ea. Screw, ES902C M2.5 x 6, self-forming Item No. 00302917-01 *)
- 2 ea. Guide rail, 160 mm, for contact spring Item No. 00334696-01 *)
- 4 ea. Contact spring for guide rails Item No. 00334698-01*)
- 8 ea Distance washers 6 x 12 x 1 Item No. 00305131-01 only for dual conveyor
- 4 ea. Cable tie 30 cm long Item No. 00805143-01 **)
- Calibration tool for coplanarity module Item No. 00315365S03 **)
- 1 ea. “Retrofitting Instructions, Coplanarity Option
for SIPLACE 80F4/(F4-6)/F5, Edition 07/95“,
English and German Item No. 00190 585-03 **)
- NOTE: Nozzle 417 belongs to the machine’s standard equipment.
**) These components are included in retrofit kit 001178120-01
Also required:
- Test software for SITEST, Version 403.04 or > 404.01 (depending on SW version at the station)
Tools and Auxiliary Equipment
- Set of Allen wrenches
- Set of screwdrivers
- Machine bubble level 0.4mm/m, metal square
- Torx screwdriver
Benötigte Dokumentation:
- Service manual for SIPLACE S-20/F4/F5, Chapter "Component Table", Section "Cutter ....." ,
Edition depends on which cutter installed:
Edition 7/97 for the old cutter = with rotating blade,
Edition >
06/98 for the new pneumatic cutter
- Where appropriate, Operating Instructions for "UNIX Line Computer", for Version 403.xx or 404.xx
- Where appropriate, Operations Instructions for SITEST, Version 403.04 or > 404.01
1.5 Circuit Diagrams including Views for Control Unit
Fig. 1.5.1 Cable: Coplanarity - Terminal Panel, Item No. 00336795-02 (Back of Control Unit -> Terminal Panel Y0904)
1 Retrofitting Instructions for Coplanarity Option SIPLACE 80 F4/(F4-6)/F5
1.5 Circuit Diagrams including Views for Control Unit Edition 05/99
1 - 7
Fig. 1.5.2 Sensor Cable: Coplanarity; Item No. 00336793-01 (Sensor -> Front of Control Unit)
SIPLACE 80 F4/F5 1 Retrofitting Instructions for Coplanarity Option
Edition 05/99 1.5 Circuit Diagrams including Views for Control Unit
1 - 8

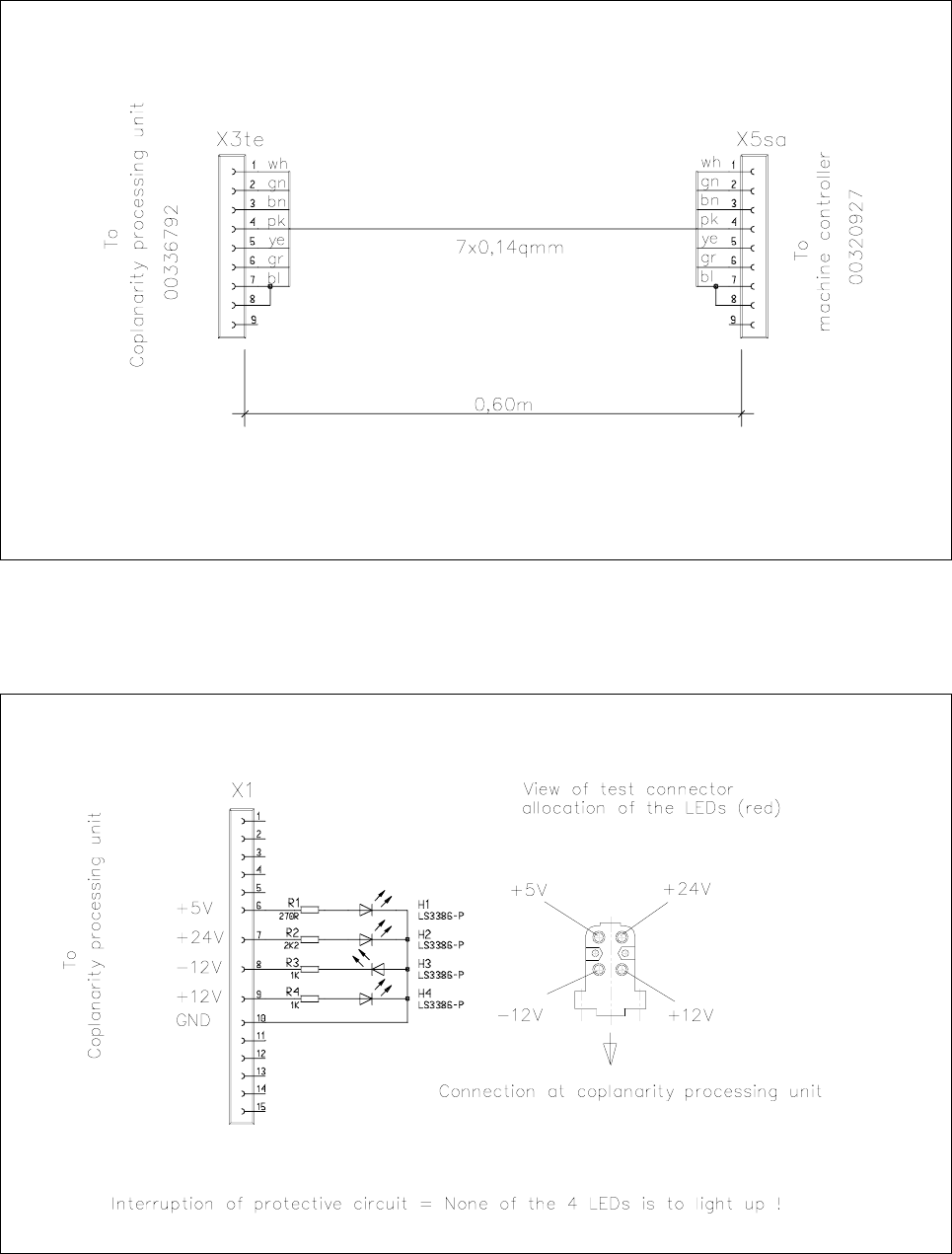

Fig. 1.5.3 Cable: Coplanarity - Machine Controller, Item No. 00336796-01 (Control Unit -> Control Unit)
Fig. 1.5.4 Test Connector: Coplanarity Option, Item No. 00337304-01
