2 Assembly instructions: Long board option - SIPLACE HF -series / X-series / D3 Long board 02/2007 Edition 36 : Run the cables and ho se to the cable duct without bending. : Fix the cables a nd hoses in the corner of the…

100%1 / 54
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
35
: Fit the unit to the stationary conveyor side wall and the actuator to the moving conveyor side
wall. A spacer block is fitted beneath both the unit and the actuator:
– Actuator with 2x M6 x 25 screws
– Unit with 2x M6 x 30 screws.
The adjustments are carried out using the adjusting gauge (for settings, see Section 2.5.4). 2
2
2
: Set the stopper position using the LBO HF assembly gauge.
: Unscrew the proximity switch to a distance between fixing bracket and proximity switch is 38
mm.
2
2
2
2
2
2
2
Unit
Actuator
Spacer block
NOTE:
On the photo you
see "Fixed
conyeyor rail left".
2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3 Long board
02/2007 Edition
36
: Run the cables and hose to the cable duct without bending.
: Fix the cables and hoses in the corner of the conveyor side wall using cable ties since the width
adjustment unit moves in this area.
2
2
: Run the connecting cable in the cable duct to the conveyor conversion board, and plug the ca-
ble into the relevant slots on the conversion board (00372253-01):
X34 for processing area 1,
X 35 for processing area 2.
2
The area around the conversion board is quite dark, so you may find it helpful to use a torch. 2
2
: Stow the excess cable in the cable duct.
: Run the compressed air hose through the cable duct into processing area 1.
2
2
2
2
2
2
2
2

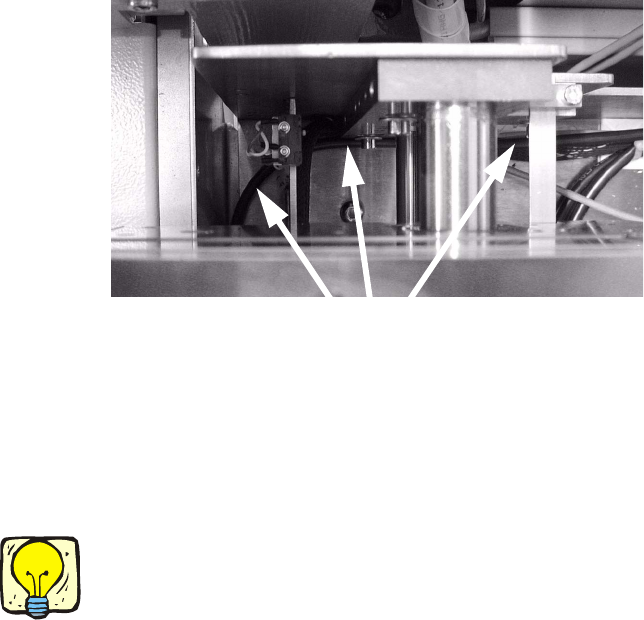

Fix cables and hoses in the corner
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
37
2.5.3 Work in processing area 1
: Remove the protective cover over the cable duct.
: Remove the cover over the cable duct.
2
: Pull the compressed air hose that runs through the cable duct from processing area 2 out of
the duct in order to supply air to the conveyor in processing area 1.
2
2
2
2
2
2
2
2
2
2
2
2
Compressed air supply to conveyor
Hose to processing
area 2
