2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3 Long board
02/2007 Edition
42
The adjusting gauge should therefore not lie inside the light barrier because it will interrupt the
beam on one side: 2
2
2
: Adjust all the stoppers on all the conveyor tracks.
2
The adjustment must be repeated whenever the stopper unit is dismantled and refitted. 2
2
2
2.6 Changes in the SITEST program
The option does not have to be selected in the SITEST program: it is detected automatically when
it is plugged into the conversion board. 2
2
The beam does not
fall along the adjust-
ing gauge.
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
43
2.7 Functions in the SITEST program
2.7.1 Setting the laser light barrier
: Start the SITEST program.
: Select "General Functions" --> "Running Options" --> "Safety Mode (reduced speed)".
: Select "I/O Functions" (see screenshot below) -->
Window 7 (for conveyor track 1)
Window 8 (for conveyor track 2).
: Click on the boxes behind "Laser light barrier" and on the "Set" box that appears.
2
2
2
2
Window 7 (conveyor track 1)
Window 8 (conveyor track 2)
Click on the "Laser light barrier" box
Click on "Set"
2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3 Long board
02/2007 Edition
44

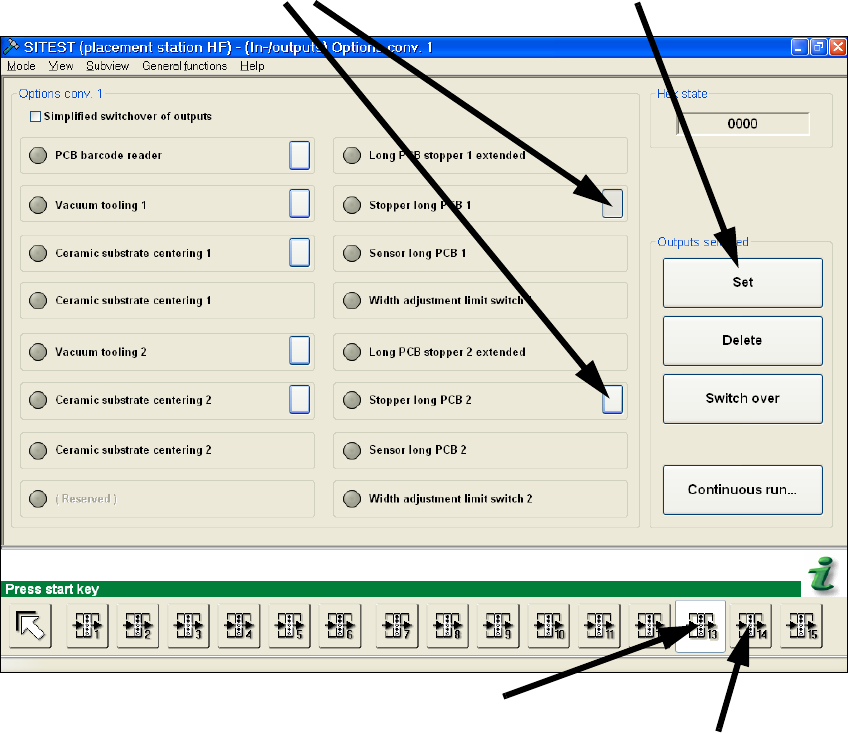

2.7.2 Extending the stopper
: Start the SITEST program.
: Select "General Functions" --> "Running Options" --> "Safety Mode (reduced speed)".
: Select "I/O Functions" (see screenshot below) -->
Window 13 (for conveyor track 1)
Window 14 (for conveyor track 2).
: Click on the boxes behind "Stopper Long Board 1/2" and on the "Set" box that appears.
2
2
2
2
Window 7 (conveyor track 1)
Window 14 (conveyor track 2)
Click on "Set"
Click on the "Stopper Long PCB" boxes
