2 Assembly instructions: Long board option - SIPLACE HF -series / X-series / D3 Long board 02/2007 Edition 38 : Attach the unit to the stationary conveyo r side wall using two spacer blocks (2 screws). Before inst allati…
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
37
2.5.3 Work in processing area 1
: Remove the protective cover over the cable duct.
: Remove the cover over the cable duct.
2
: Pull the compressed air hose that runs through the cable duct from processing area 2 out of
the duct in order to supply air to the conveyor in processing area 1.
2
2
2
2
2
2
2
2
2
2
2
2
Compressed air supply to conveyor
Hose to processing
area 2
2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3 Long board
02/2007 Edition
38
: Attach the unit to the stationary conveyor side wall using two spacer blocks (2 screws).
Before installation, it may be necessary to move a cable tie with base (see photograph below).
: Fit the actuator to the moving conveyor side wall (using 2 screws).
In processing area 1, the actuator is fitted without a spacer block (see photograph below).
: Set the stopper position using the LBO HF assembly gauge.
The adjustments are carried out using the adjusting gauge. See Section 2.5.4 for setting.
2
2
2
2
2
2
2
2
2
2
2
2
2
Unit
Actuator
2 spacer blocks
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
39
: Connect the connecting cable to the unit.
: Connect the hose supplied to the quick-release coupling on the unit.
: Run the connecting cable through the cable duct to the conversion board and plug it in (location
X34).
2
: Stow the excess cable in the cable duct on the side.

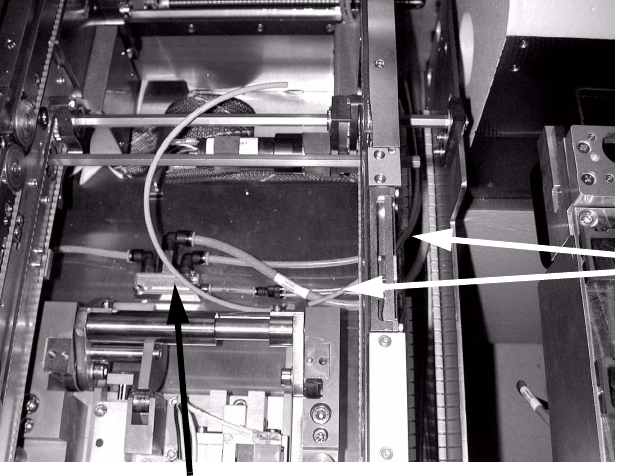

: Detach the 6 mm hoses on both sides of the air supply, and fit the T-pieces supplied between
the hoses and connection (see photograph below).
Two T-pieces are required on each side for the dual conveyor.
: Attach the supply hoses for the stopper units to the T-pieces.
2
Run the cables through the
opening in the conveyor to
the conversion board.
T-pieces
Hose to unit
PA 1
Hose to unit PA1
Hose to unit
PA 2
