2 Assembly instructions: Long board option - SIPLACE HF -series / X-series / D3 Long board 02/2007 Edition 42 The adjusting gauge should theref ore not lie inside the light barr ier because it will interrupt the beam on …
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
41

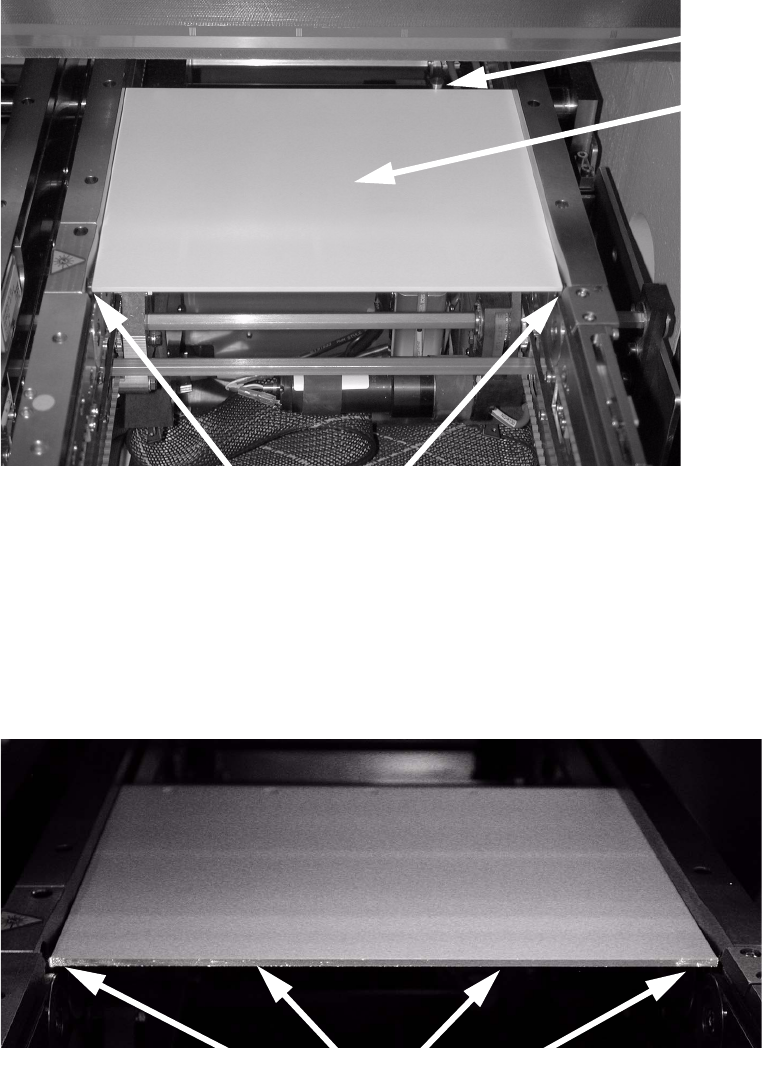

: Place the adjusting gauge in the conveyor and push it against the stopper.
The gauge must lie against the stopper and the stationary conveyor side wall.
2
2
: Check whether the laser beam can be seen on the entire front edge of the adjusting gauge. If
this is not the case, adjust the stopper so that the laser beam is visible.
To do this, loosen the fixing screws on the stopper, align the stopper and then tighten the
screws once more.
2
2
Adjusting
gauge
Stopper
Laser light barriers
Laser dots must be visible.
2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3 Long board
02/2007 Edition
42

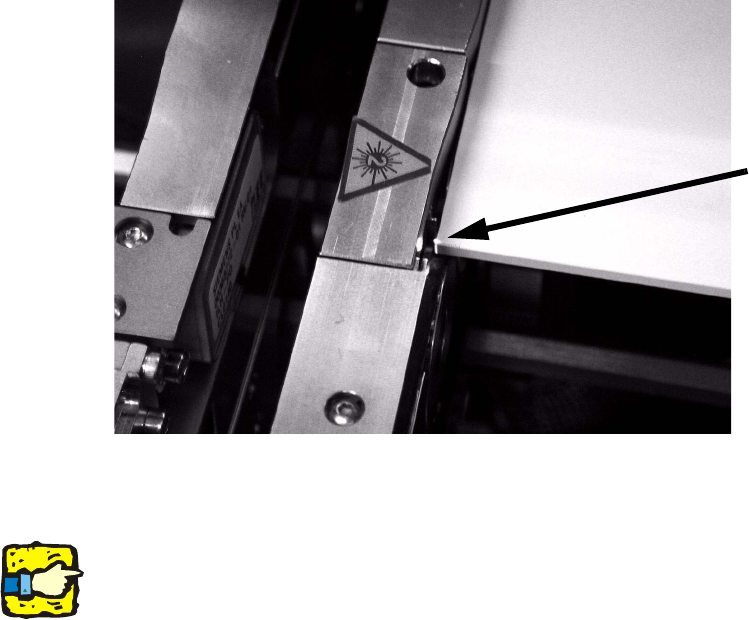

The adjusting gauge should therefore not lie inside the light barrier because it will interrupt the
beam on one side: 2
2
2
: Adjust all the stoppers on all the conveyor tracks.
2
The adjustment must be repeated whenever the stopper unit is dismantled and refitted. 2
2
2
2.6 Changes in the SITEST program
The option does not have to be selected in the SITEST program: it is detected automatically when
it is plugged into the conversion board. 2
2
The beam does not
fall along the adjust-
ing gauge.
Long board 2 Assembly instructions: Long board option - SIPLACE HF-series / X-series / D3
02/2007 Edition
43
2.7 Functions in the SITEST program
2.7.1 Setting the laser light barrier
: Start the SITEST program.
: Select "General Functions" --> "Running Options" --> "Safety Mode (reduced speed)".

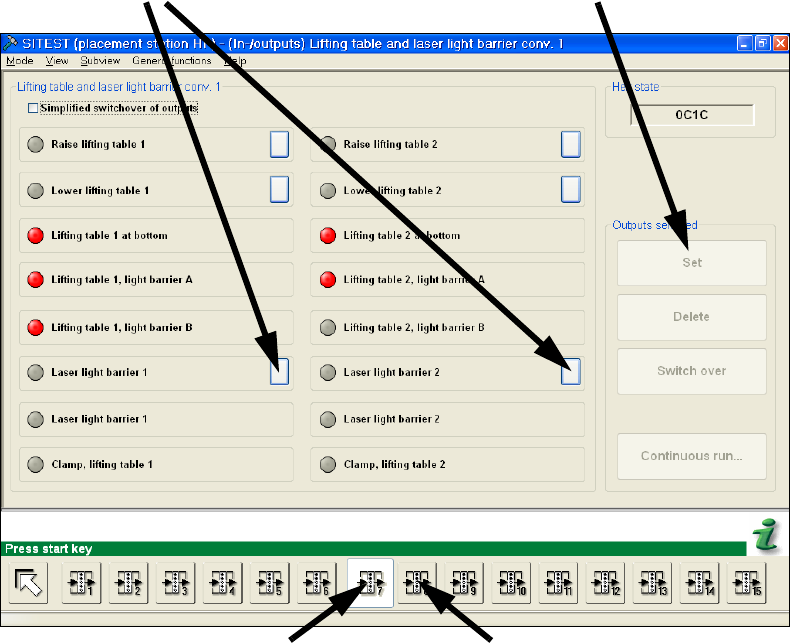

: Select "I/O Functions" (see screenshot below) -->
Window 7 (for conveyor track 1)
Window 8 (for conveyor track 2).
: Click on the boxes behind "Laser light barrier" and on the "Set" box that appears.
2
2
2
2
Window 7 (conveyor track 1)
Window 8 (conveyor track 2)
Click on the "Laser light barrier" box
Click on "Set"
