Station Software 709.0 / Installation Manual Ausgabe 11/2015 E dition 20 Name SIMATIC MicroBox 427D CPU / clock frequen cy Intel ® Core (TM) / 1,6 GHz RAM 4 GB Harddisk Yes (80 GB SSD) External DVD drive Yes Internal DVD…

Station Software 709.0 / Installation Manual Ausgabe 11/2015 Edition

Name SIMATIC BoxPC 627C

CPU / clock frequency Intel® Celeron® P4505 / 1.87 GHz

RAM 2 GB

Harddisk Yes

External DVD drive Yes

Internal DVD drive No

Serial interfaces 1

USB interfaces and external USB hub Yes

Network 2x 100 MBit

Table 4-5: Machine computer hardware SIPLACE X-, X S-, SX- and DX-series

Name SIMATIC BoxPC 827C

CPU / clock frequency Intel® Core

(TM)

i3 / 2.13 GHz

RAM 2 GB

Harddisk Yes

External DVD drive Yes

Internal DVD drive No

Serial interfaces 1

USB interfaces and external USB hub Yes

Network 2x 100 MBit

Table 4-6: Machine computer hardware SIPLACE X-, X S-, SX-, DX- and CA-series

Name I-Base ABP 402-A

CPU / clock frequency Intel® Celeron® CPU 1020E / 2,2 GHz

RAM 4 GB

Harddisk Yes

External DVD drive Yes

Internal DVD drive No

Serial interfaces 2

USB interfaces and external USB hub Yes

Network 2x 1000 MBit

Table 4-7: Machine computer hardware SIPLACE SX-series

Station Software 709.0 / Installation Manual Ausgabe 11/2015 Edition

Name SIMATIC MicroBox 427D

CPU / clock frequency Intel® Core

(TM)

/ 1,6 GHz

RAM 4 GB

Harddisk Yes (80 GB SSD)

External DVD drive Yes

Internal DVD drive No

Serial interfaces 1

USB interfaces and external USB hub Yes

Network 2x 1000 Mbit

Table 4-8: Machine computer hardware SIPLACE X-Series S and TX-series

4.2.1.1 Machine Computer/Coplan Computer with 3D Coplan Sensor

Optionally, the coplanarity module with the 3D coplan sensor (type 37) can be installed in the

SIPLACE X2, X3, X4 and SX1/SX2 (V2) placement machines (item no. [00119919-xx] for X-series,

item no. [00519919-xx] for SX-series).

4.2.1.2 Machine Computer/Feeder Computer for SIPLACE BulkFeeder X

Optionally, the SIPLACE BulkFeeder X can be set up and installed at the X-series, X-series S,

X4 S micron and SX1/SX2 (V2) placement machines.

Please refer to the SIPLACE BulkFeeder X Operating Manual, item no. [00198045-xx].

Station Software 709.0 / Installation Manual Ausgabe 11/2015 Edition

4.3 Network Configuration

Machine

computer

Coplan computer /

feeder computer

Private network between

machine computer and Coplan

computer / feeder computer

SIPLACE LAN

SIPLACE Pro

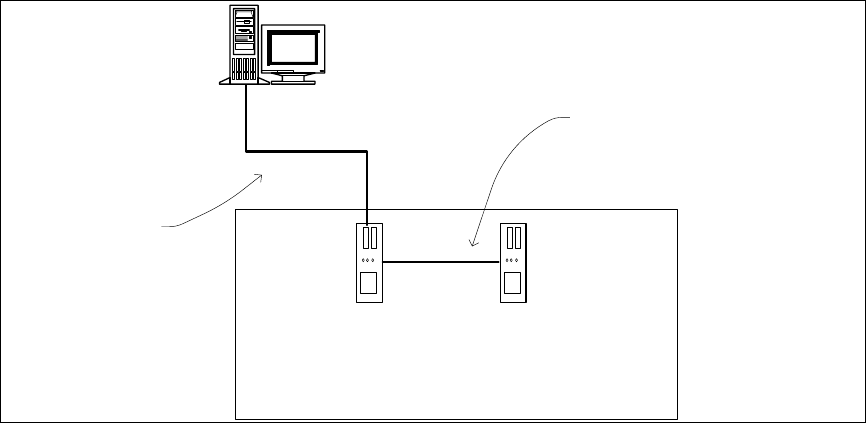

Figure 4-1: Network connections between the machine and SIPLACE Pro

In two-computer operation a separate private network is set up between the machine computer and

the Coplan computer or feeder computer via a subnet mask.

Fixed IP addresses for the machine computer, Coplan computer or feeder computer can thus be

assigned for all SIPLACE machines. These IP addresses are not known outside the private

network, for instance in the SIPLACE LAN.

These IP addresses need not be further configured by the operator while the station software is

being installed.
