Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2012 EN 3.3 Installation of SIPLACE Explorer 2.10
33
WARNING
Do not install "SIPLACE Explorer V.2.10 Runtime Environment" and "SIPLACE Explorer
V.2.10 Development Environment" on the same computer. These two options will not run
parallel to one another. Before working with these options in succession, make sure you
know the steps for starting/terminating the respective option and observe these. 3
Once you have selected the required installation option, click on the Next button to continue.
If the specified destination folder is empty, the Import Line Configuration dialog box will open.
3

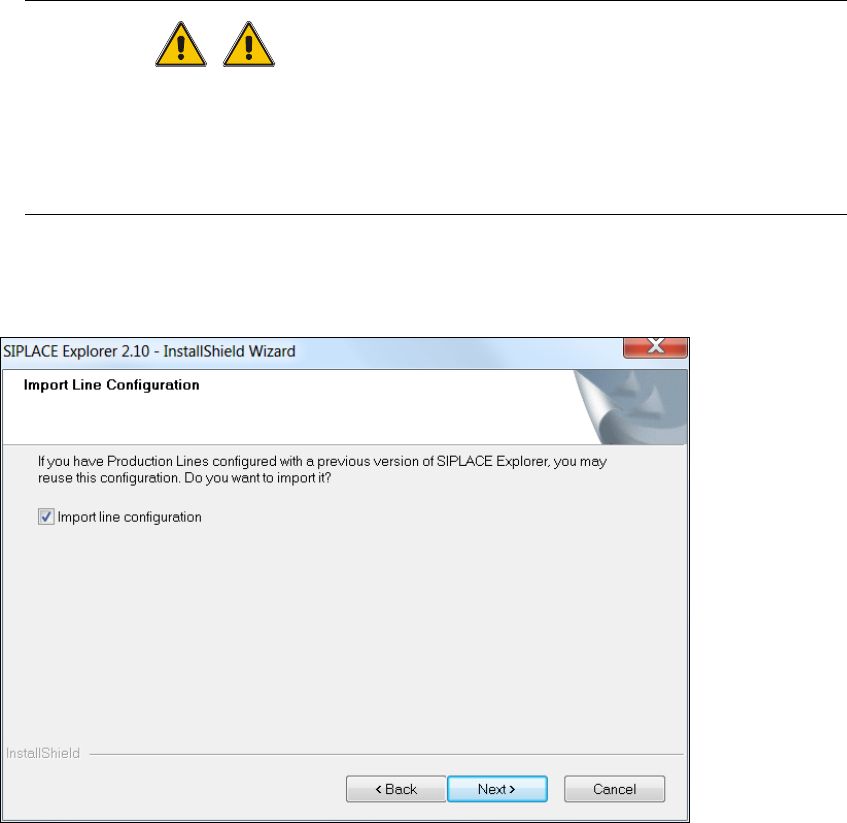

Fig. 3 - 8 SIPLACE Explorer setup - import line configuration
Activate the Import Line Configuration checkbox, if you want to keep the existing line
configurations and other settings. The Import Line Configuration dialog box will open.
Specify the folder in which you wish to import the line configuration. The default folder is
C:\Program Files\SIPLACE Explorer.
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.3 Installation of SIPLACE Explorer 2.10 Edition 02/2012 EN
34
3

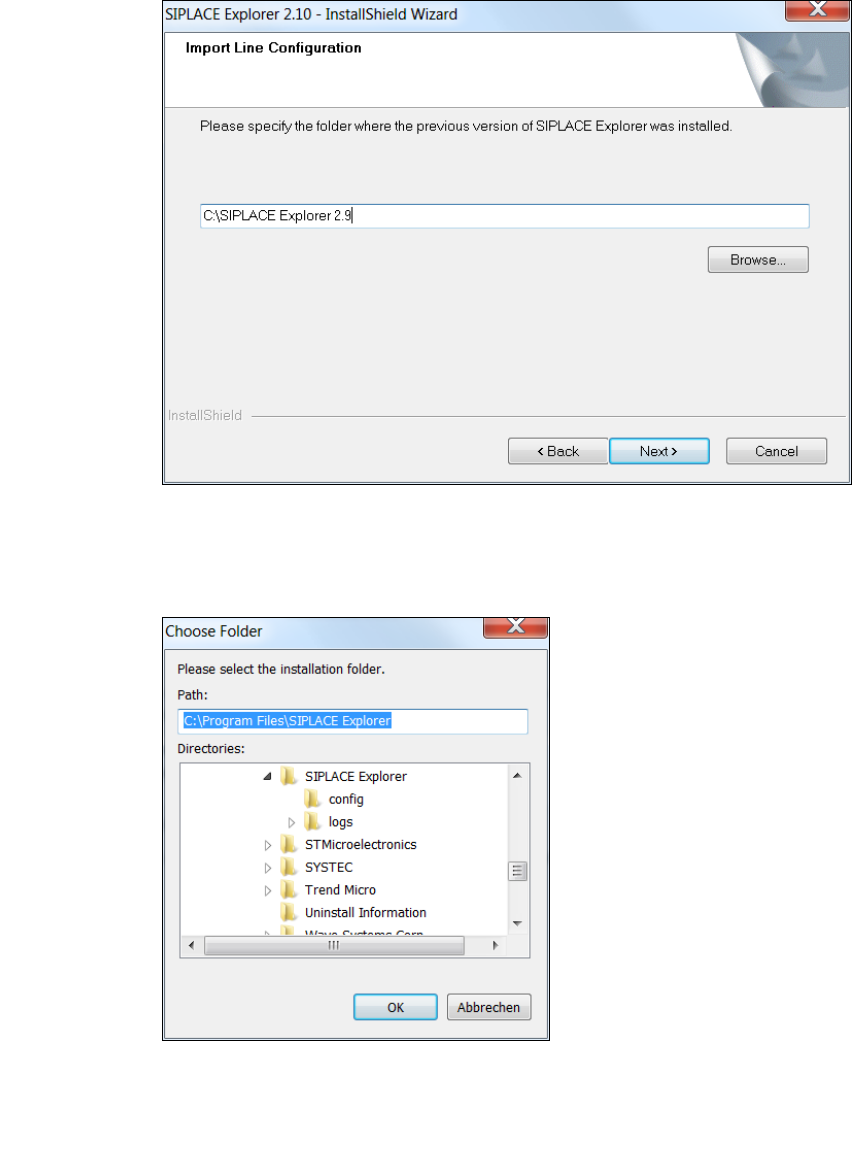

Fig. 3 - 9 SIPLACE Explorer setup - import line configuration
You can alter the default installation folder by using the Browse button.
The Choose Folder dialog box will open to locate the desired folder.
3
Fig. 3 - 10 SIPLACE Explorer Setup - 'choose folder' dialog box
Specify the required folder and click on OK, to confirm your choice. You will return to the Import
Line Configuration dialog box, where the folder will be shown.
To accept the destination folder, click on Next in the Import Line Configuration window.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2012 EN 3.3 Installation of SIPLACE Explorer 2.10
35

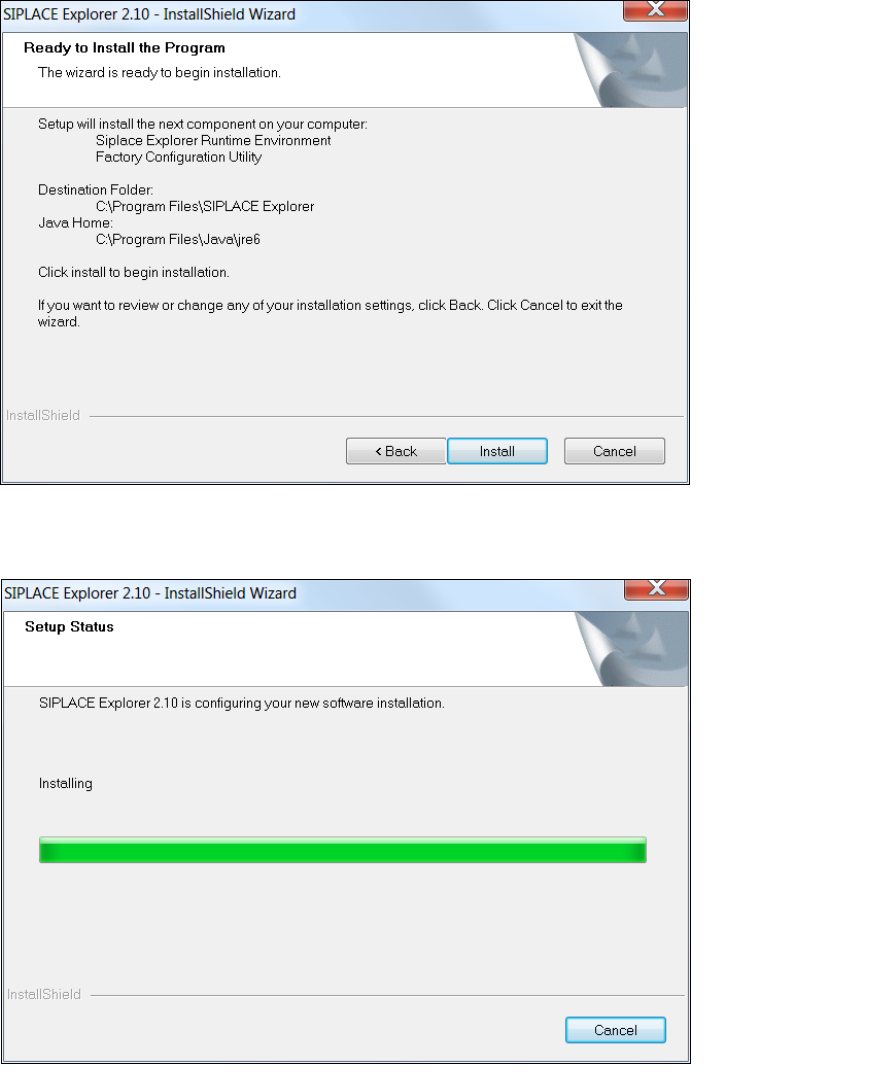

The Ready to Install the Program dialog box will open.
3
Fig. 3 - 11 SIPLACE Explorer setup - 'ready to install' dialog box
Click on the Install button, to begin the actual installation of SIPLACE Explorer V2.10.
3
Fig. 3 - 12 SIPLACE Explorer setup - setup status
