Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2012 EN 3.3 Installation of SIPLACE Explorer 2.10
35
The Ready to Install the Program dialog box will open.
3
Fig. 3 - 11 SIPLACE Explorer setup - 'ready to install' dialog box
Click on the Install button, to begin the actual installation of SIPLACE Explorer V2.10.
3
Fig. 3 - 12 SIPLACE Explorer setup - setup status
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.3 Installation of SIPLACE Explorer 2.10 Edition 02/2012 EN
36
Once the installation procedure has finished, the following dialog box will open.
3
Fig. 3 - 13 SIPLACE Explorer setup - installation complete
Click on Finish. After you have rebooted your computer, SIPLACE Explorer will be available
for use. Follow the instructions at “Starting SIPLACE Explorer” on page 37.
NOTE
After installing SIPLACE Explorer, reboot your system. This ensures that port 1099 is available for
the Java Runtime Environment. In rare cases, port 1099 may be used by another application. If
you start SIPLACE Explorer after the installation, without rebooting the system, the error message
"SIPLACE Explorer 2.10 runtime not found" would be shown in such cases. 3
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2012 EN 3.4 Starting SIPLACE Explorer
37
3.4 Starting SIPLACE Explorer
SIPLACE Explorer can be started by selecting Programs SIPLACE Explorer 2.10 from the
Windows menu and will be loaded to correspond with your selected installation options.
SIPLACE Explorer V.2.10 Runtime Environment:
"Runtime Environment" runs as a Windows service and is automatically started whenever you
reboot your computer. You will see the icon in your console. Right-click with the mouse to
open other applications and tools. 3
3

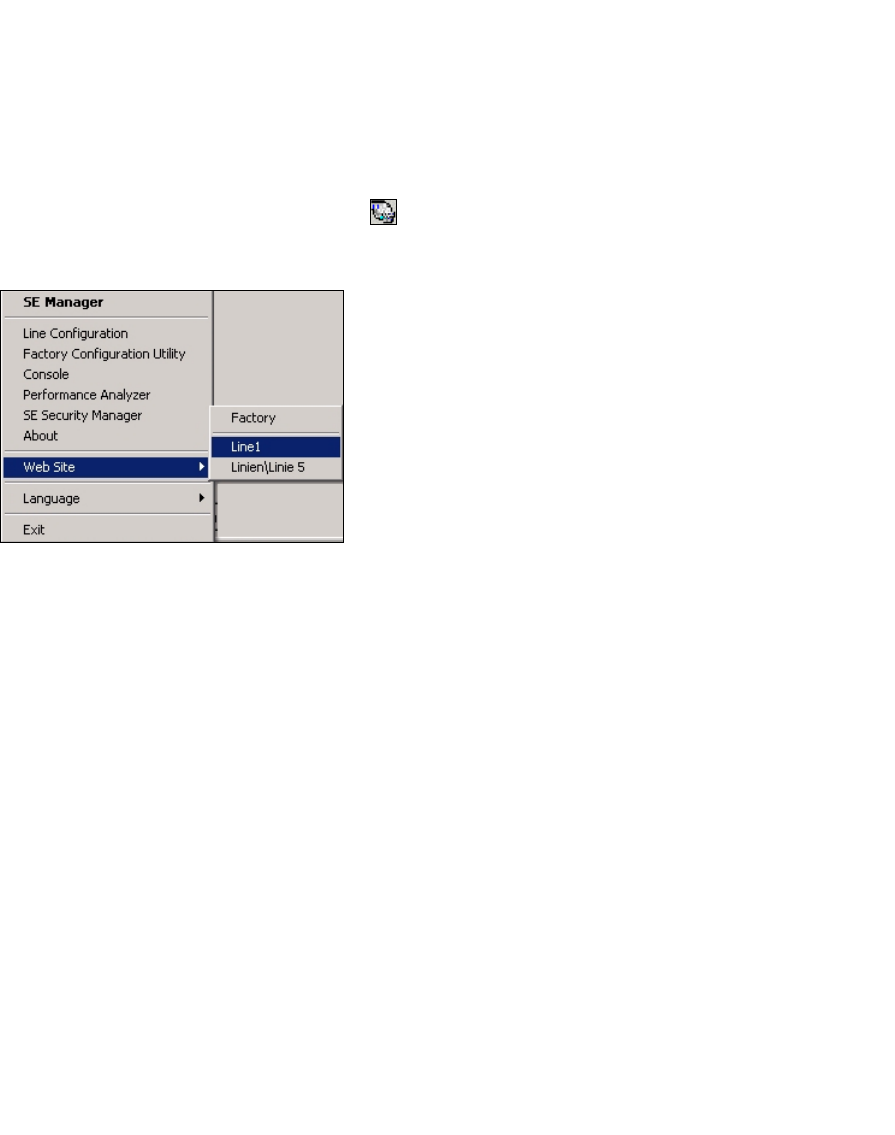

Fig. 3 - 14 RTE Windows Start menu
The following options are available: 3
– SE Manager
– Line Configuration
– Factory Configuration Utility
–Console
– Performance Analyzer
– SE Security Manager
– About
– Website:
Wit this menu, you can open the websites as well as the factory website.
– Language
–Exit
These additional applications and tools can also be started via the Programs SIPLACE
Explorer 2.10 menu in Windows. 3
