In st al la tio n an d Co nf ig ura t ion G ui de SIP LACE Ex pl ore r 3 I n st alli ng S IP LAC E Ex pl or e r Edi tion 02 /201 2 EN 3. 5 Adjust ing the Reg iona l Set ting s for As ian Lang uage s 39 3. 5 Ad ju st i ng…
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.4 Starting SIPLACE Explorer Edition 02/2012 EN
38
3
Fig. 3 - 15 RTE Windows Start menu
The following options are available: 3
– Archive Browser
–Console
– Documentation
– Error Reporting
– Factory Configuration Utility
– Line Configuration
– Modify-Uninstall
– Performance Analyzer
– SE Manager
– SE Security Manager
SIPLACE Explorer V.2.10 Factory Configuration Utility
Start the Factory Configuration Utility via the Programs SIPLACE Explorer 2.10
Factory Configuration Utility menu in Windows. 3
3
Fig. 3 - 16 Factory Configuration Utility Windows Start menu
Or click on the Factory Configuration Utility icon on your desktop.
Installation and Configuration Guide SIPLACE Explorer 3 Installing SIPLACE Explorer
Edition 02/2012 EN 3.5 Adjusting the Regional Settings for Asian Languages
39
3.5 Adjusting the Regional Settings for Asian Languages
If you have an English operating system, the Asian language must be installed. Otherwise
SIPLACE Explorer can not display the tray menus correctly after you have set the user interface
to an Asian language. SIPLACE Explorer displays ???. 3
3.5.1 Windows XP
In the Windows menu, click Start Control Panel Regional and language Option.
Click the Languages tab.
3

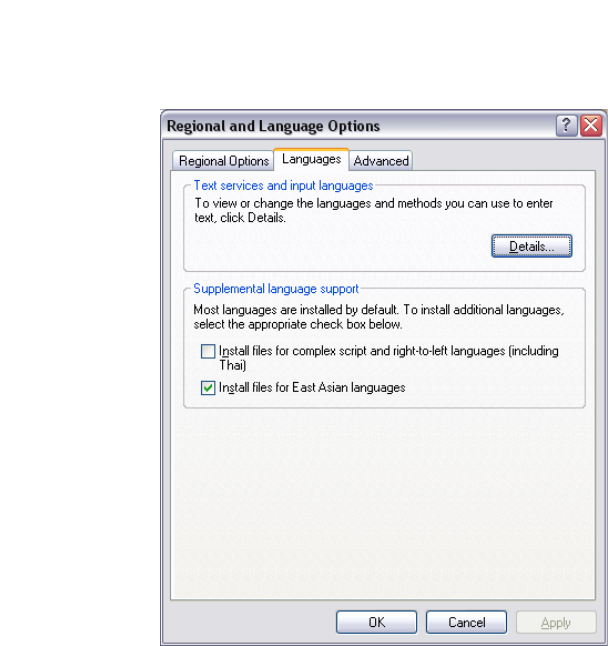

Fig. 3 - 17 Regional Settings in Windows XP
Activate the Install files for East Asian languages check box.
Confirm with OK.
3 Installing SIPLACE Explorer Installation and Configuration Guide SIPLACE Explorer
3.6 MS SQL Server Configuration Edition 02/2012 EN
40
3.5.2 Windows Server 2003 SP2 and Windows Server 2003 R2
In the Windows menu, click Start Settings Control Panel Regional and language
Option.
Click the Languages tab.
3
Fig. 3 - 18 Regional Settings in Windows Server 2003 SP2 und Windows Server 2003 R2
Activate the Install files for East Asian languages check box.
Confirm with OK.
3.6 MS SQL Server Configuration
You can configure the system database with the Line Configuration. See “Step 5 - Configure
System Database” on page 55. 3
If you want to configure the maintenance of the system database it is required to configure the MS
SQL Server: 3
Start MS SQL Server Management Studio.
Open the Server Properties dialog box. Select the server instance which contains the
SIPLACE Explorer system database. Select Properties from the context menu. The Server
Properties dialog box will open:
