PCB Barcode V2.0 SP2 / Installation Manual Ausgabe 03/2012 Edition

4.2 Installing PCB Barcode Software

The required drivers and licenses are available on the gray USB stick.

► Switch to the operating system level on the station

computer.

► Log in a

s administrator.

► Open Windows Explorer.

► Start the Install.bat batch file from the USB stick drive.

NOTICE

If necessary, the installation file may be started several times.

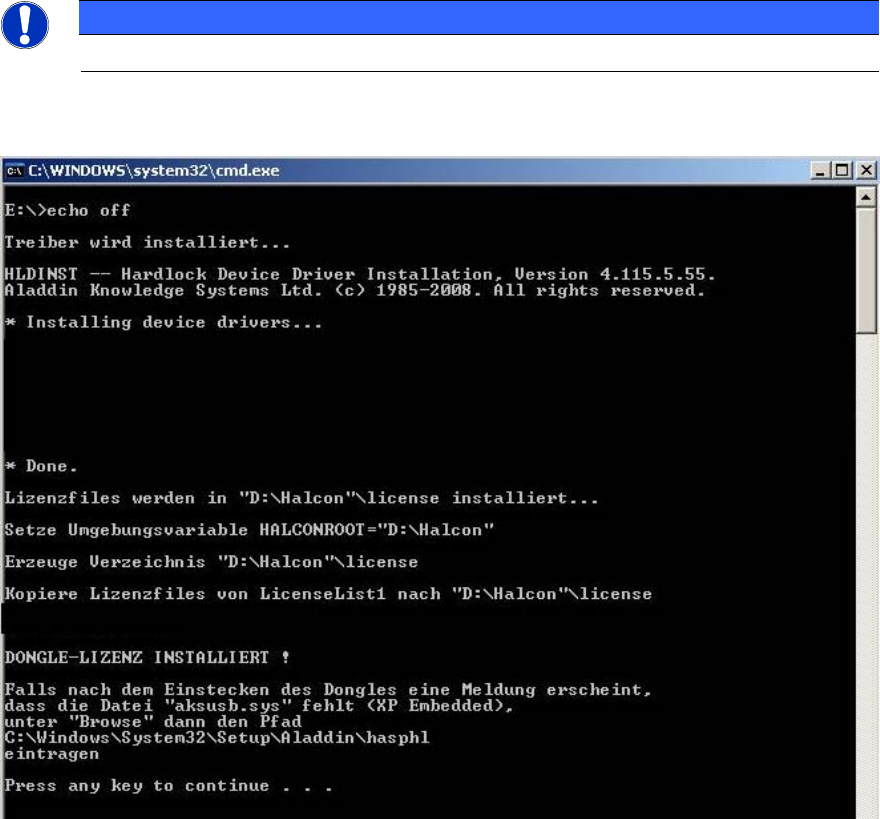

The following window is displayed on the screen during installation.

Figure 4-3: Installation of drivers and licenses

PCB Barcode V2.0 SP2 / Installation Manual Ausgabe 03/2012 Edition

Additional steps in two-computer operation

► Connect to the Vision computer via remote access.

► Log in as administrator.

► Perform the installation as described above on the Vision computer as well.

After finishing the installation procedure, the license files are automatically copied to the

D:\Halcon\license directory.

Shortly after, the indicator on the USB dongle lights up in red. This means that the USB dongle has

been detected by the system.

► Remove the gray USB stick and hand it over to the customer.

► Shut down the station computer and in two-computer operation the Vision computer as well.

► Reboot the computer(s).

PCB Barcode V2.0 SP2 / Installation Manual Ausgabe 03/2012 Edition

4.3 Reading out Dongle ID

As of the 706.0 station software version, the dongle ID can be read out. For this, the readme.txt

and lmhostid.exe files are available in the DongleID directory on the product CD of the station

software. Proceed as follows to find out the dongle ID:

► Open a command interpreter (cmd) in the DongleID directory.

► Start the lmhostid.exe file by running the lmhostid –flexid command.

The dongle ID is displayed (in the following sample: "FLEXID=9-283a8cfa").

Figure 4-4: Reading out dongle ID
