Installation Manual, Station Software Version 605.03 10/2010 Edition
41 of 50
5.6 Finish the Installation
5.6.1 Miscellaneous
• Check the eSW firmware versions and download if necessary.
• Start the reference run of the machine.
• After an upgrade to the 605.xx software version, calibrate the heads of the D1, D2 and D4
machines, if necessary. The temperature compensation is activated for these machines.
If the data base for the axes has changed after an upgrade or an installation, and one or more gantry axes
(X,Y) are displaced by exactly 50mm, the reference point on the axis/axes scale has been displaced by
one position and the zero point correction is not correct for these axes anymore. In this case the following
steps are required:
• Recalibrate the machine zero point.
• Redetermine the traversing range.
Installation Manual, Station Software Version 605.03 10/2010 Edition
6 Uninstalling the SIPLACE software
Note:
You must be logged in as administrator to uninstall the software.
→ Open the Start menu and choose Programs Æ SIPLACE Æ SIPLACE Uninstall.

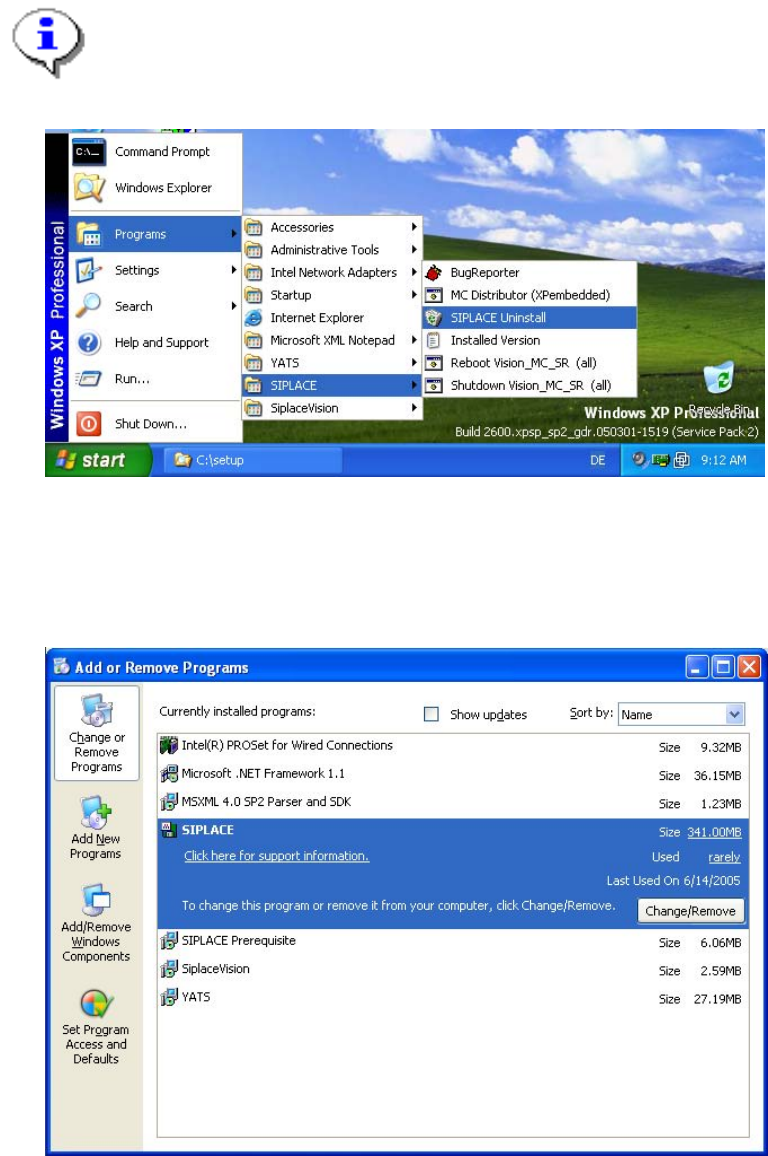

Fig. 6-1: Starting uninstallation (alternative 1)
Or:
→ Open the Start menu and choose Settings Æ Control Panel.
→ Double-click Add/Remove Programs.
Fig. 6-2 Starting uninstallation (alternative 2)
→ Select SIPLACE from the list of installed programs.
→ Click the Change/Remove button.
42 of 50
Installation Manual, Station Software Version 605.03 10/2010 Edition
The installation program now uninstalls the SIPLACE software including the SIPLACE hotfixes, SIPLACE
Language Pack and SIPLACE Vision.

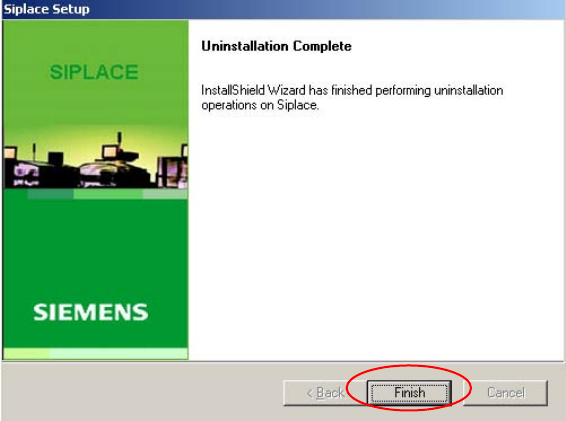

Fig. 6-3: Finalizing uninstallation
→ Click the Finish button.
The SIPLACE software and SIPLACE Vision have now been uninstalled correctly.
