Installation Manual, Station Software Version 605.03 10/2010 Edition
6 of 50
2 Scope of delivery
2.1 Software components
605.02 software
Standard package: 00140001-05 Software SIPLACE Station 605.03
• 2 Software CD
(1)
• License/product certificate
• Software Installation Manual for Station Computer V605.xx German and English (00195813-xx)
• 4 temperature warning labels (03031926-01)
• Packaging
Languages: 00140002-05 SIPLACE foreign language software SC 605.03
• CD-ROM with software (language pack)
• License/product certificate
• Software Version Description for foreign languages V605.03 German and English
(00195815-04)
• Packaging
(1) The standard applications are contained on the CD:
• Embedded software for conveyor
• Embedded software for axes
• Embedded software for component tables
• Embedded software for tape cutter
• Embedded software for heads
• Embedded software for MTC 2
• Embedded software for WPC 4
• Embedded software for vision modules
• Embedded software for I/O modules
• Embedded software for X-feeders
• Embedded software for digital pressure regulation valve
Installation Manual, Station Software Version 605.03 10/2010 Edition
7 of 50
2.2 Hardware components
• Station computer
• MC computer (machine controller)
• Vision computer (optional, required for the 3D coplanarity sensor option)
2.3 Languages
User interface for station computer and SIPLACE Vision:
The standard package contains German and English versions. Other languages contained in the
languages package are optional and available under item number 00140002-05.
The following table indicates which languages are available for the station software and SIPLACE Vision:
Language Station software /
SIPLACE Vision
French x
Italian x
Spanish (Mexico) x
Portuguese (Brazil) x
Hungarian x
Czech x
Polish x
Russian x
Estonian x
Chinese (simplified) x
Chinese (traditional) x
Korean x
Japanese x
Thai *) x
*) Only available for GUIs (English online help)
SITEST user interface:
German and English are included on the software CD.
Installation Manual, Station Software Version 605.03 10/2010 Edition
3 Upgrade to the 605.xx software version
This chapter describes which steps you have to attend when upgrading from different software versions.
When upgrading the station software, always check the eSW versions and download the current versions if
necessary.
Note:
If the data base for the axes has changed after an upgrade or an installation, and one or
more gantry axes (X,Y) are displaced by exactly 50mm, the reference point on the axis/axes
scale has been displaced by one position and the zero point correction is not correct for
these axes anymore. In this case the following steps are required:
- Recalibrate the machine zero point.
- Redetermine the traversing range.
3.1 Upgrade from version 604.x
For upgrade from version 604.x no further steps are necessary.
3.2 Upgrade from version 603.x
When upgrading to the 605.xx software version, please consider following:
Caution:
For upgrading to the 605.x software version, please consider the installation manual "Windows
Embedded XP operating system for the MC German and English" (00195327-xx). Therefore,
the standard media package (03054699-xx) is required.

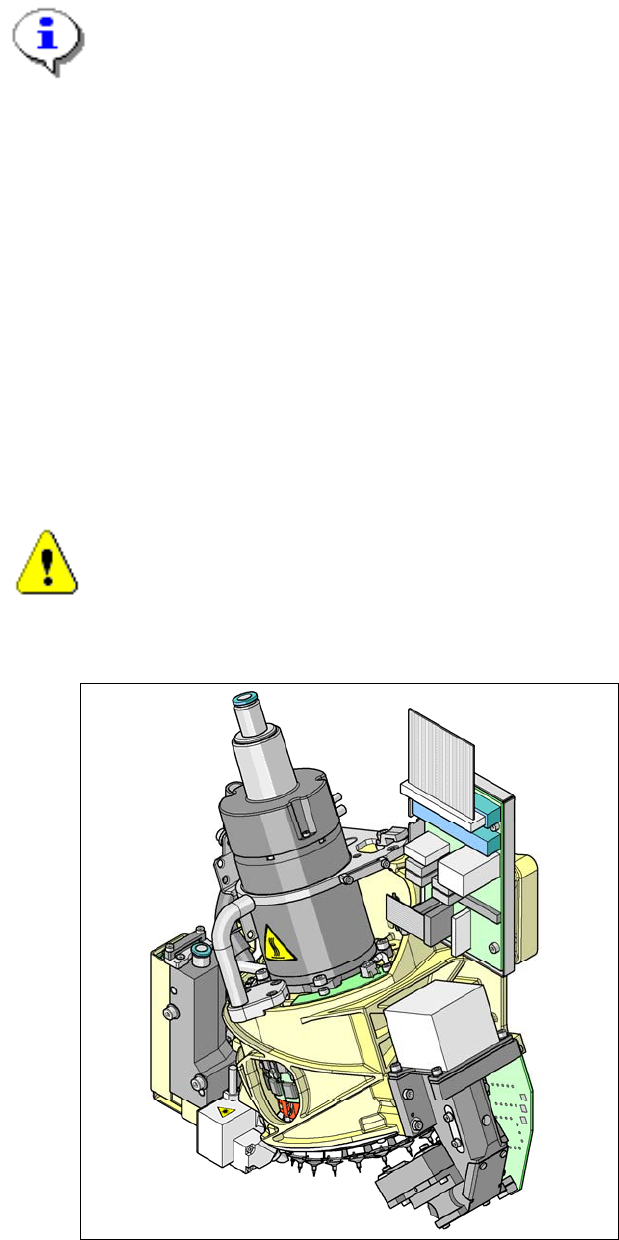

- Fix the temperature warning labels (03031926-01) at the C&P20 head (see the figure).
8 of 50
