34 JAKA Zu 12 v1.0
b) The input type is NPN
Fi
gure 4-20

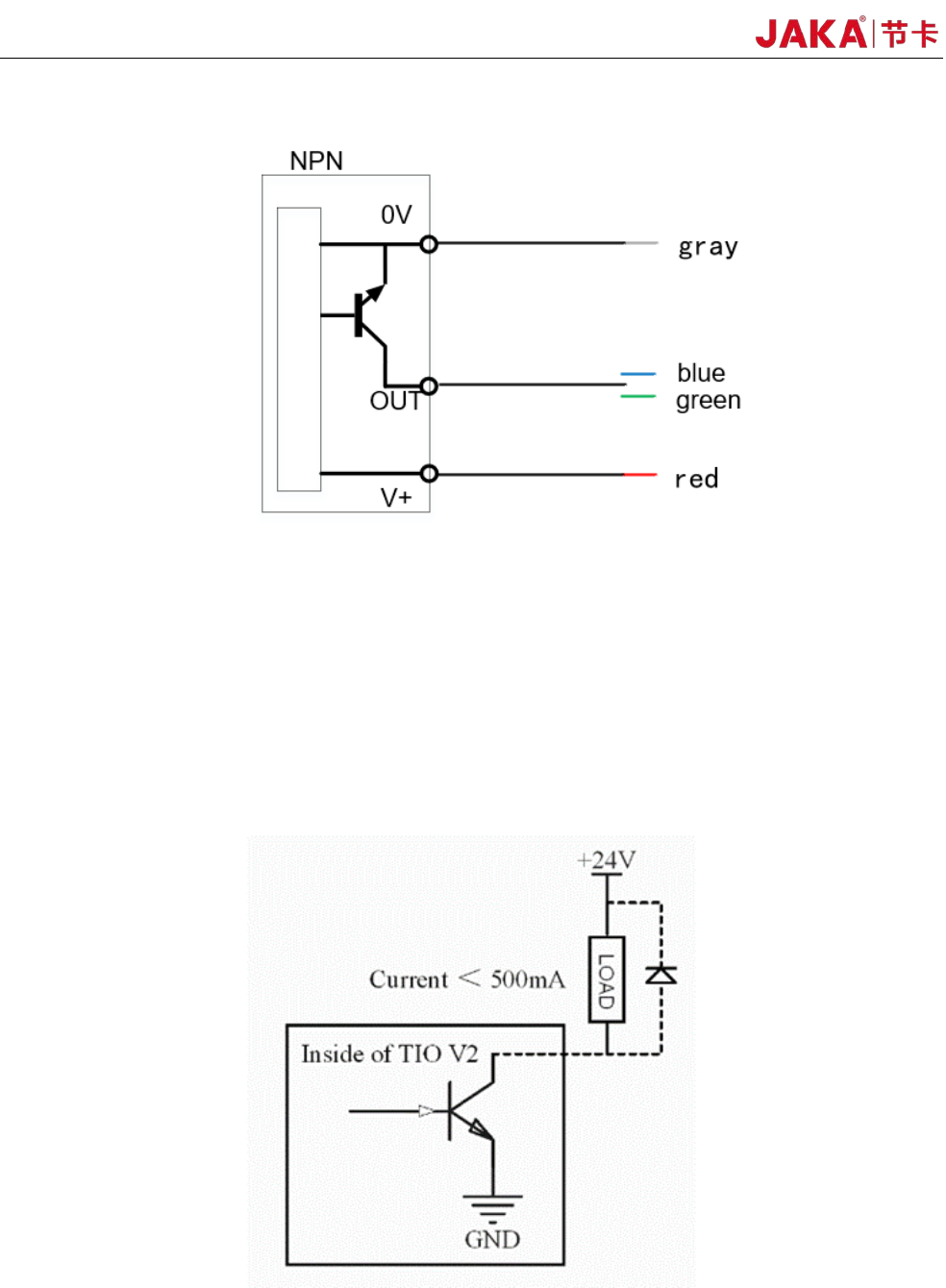

Figure 4-20 shows the block diagram of the NPN input device connection: the V + pin is connected to +
24V (red wire), the 0V pin is connected to the negative pole (gray wire), and the OUT pin is connected to DIx
(blue or green wire).
3. TIO digital output interface
The digital output interface uses an open collector output that supports up to 500mA of current capability.
Note: If an inductive load (such as a relay, electromagnet, DC motor, etc.) requires an external
freewheeling diode.
Fi
gure 4-21
* Note: It is strongly recommended to use protection DIODES for the inductive loads (such as relays,
electromagnets, DC motors, etc.). Otherwise, this port may damage the hardware circuit
JAKA Zu 12 v1.0 35
4.6 Technical Specifications
1.JAKA Zu 12 Robot Technical Specifications:
Robot type:JAKAZu 12
Product Features
Maximum payload 12kg
Weight (including cable) 41kg
Working radius 1327mm
Repeatability <±0.03mm
Degrees of freedom 6
Programming Graphical drag-and-drop programmin
FlexPendant Type Mobile device (PAD/mobile)
Collaborative operation
Cooperative operation according to
GB11291.1-2011 standard
Working range and
speed
Robot joint Working range Max speed
Joint1 ±270° 120°/s
Joint 2 -85°、+265° 120°/s
Joint 3 ±175° 120°/s
Joint 4 -85°,+265° 180°/s
Joint 5 ±270° 180°/s
Joint 6 ±270° 180°/s
Maximum speed of the
tool end
/ 3m/s
Physical properties
and others
Power consumption Average 500W
Temperature 0-50°C
IPclassification IP54
Robot installation posture Install at any angle.
TIO Ports
2 digital input
2 digital output
1 analog input
TIO Power 24V
Base diameter 188mm
Material Aluminum alloy, PC
TIO Size M8
Robot connection cable
length
6m
2.Electrical cabinet technical specifications:
Electrical
cabinet
IP classification IP44
I/Oports
16 digital input
16 digital output
2 analog input/output
I/O power 24V
Communication TCP/IP, Modbus TCP, Modbus RTU
Power 100-240VAC,50-60Hz
Size 410×307×235 (mm)(W*H*D)
Weight 16kg
Material Stainless steel alloy
36 JAKA Zu 12 v1.0
5 Maintenance and Repair
Maintenance and repairing must be performed in compliance with all safety instructions in this manual.
Repairing must be performed by an authorized system integrator or JAKA staff.
Parts returned to JAKA should be returned as specified in the Service Manual.。
5.1 Safety Instructions
After maintenance and repair, product must be checked to ensure the required safety level. The valid
national or regional work safety regulations must be observed for this check. The correct functioning of all
safety functions shall also be tested.
The purpose of maintenance and repairing is to ensure that the system is kept operational or, in the event
of a fault, to return the system to an operational state. Repairing includes troubleshooting in addition to the
actual repair itself.
The following safety procedures and warnings must be observed during the operation of the robot or
electrical cabinet:
DANGER:
1. Do not change anything in the safety configuration of the software. If any
safety parameter is changed, the complete robot system shall be considered
as a new system, which means that the overall safety approval process,
including risk assessment, shall be updated accordingly.
2. Replace faulty components using new components with the same article
numbers or equivalent components approved by JAKA for this purpose.
3. Reactivate any deactivated safety measures immediately after the work
is completed.
4. Document all repairs and save this documentation in the technical file
associated with the complete robot system.。
DANGER:
1. Remove the main input cable from the bottom of the electrical cabinet to
ensure that it is completely unpowered. Deenergize any other source of
energy connected to the robot arm or control box. Take necessary precautions
to prevent
other persons from powering on the system during the repair
period.
2. Check the earth connection before re-opening the system.
3. Observe ESD regulations during the disassembly of the parts of the
robot or electrical cabinet.
4. Avoid disassembling the power supply inside the electrical cabinet. High
voltages can be present inside these power supplies for several hours after
the electrical cabinet has been switched off.
5. Prevent water and dust from entering the robot or electrical cabinet.
