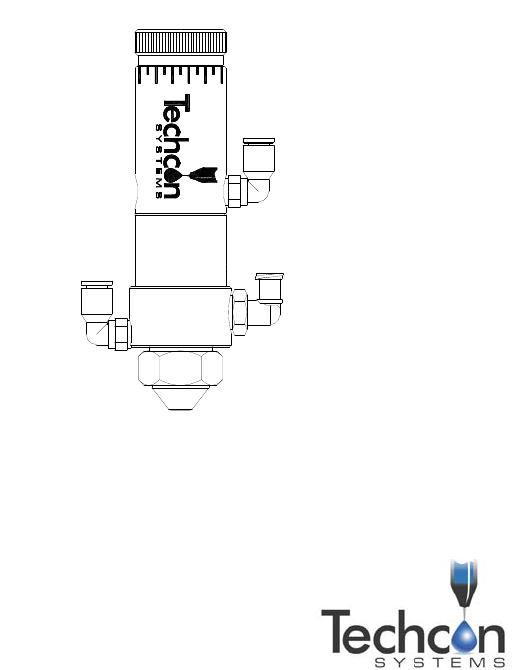

1 Techcon Systems TS5540 TS5540F Spray Valves User Guide English, Simplified Ch inese, Traditional Chinese and Korean version Copyright © OK International TS5540 TS5540F 噴霧閥 使用者指南 TS5540 TS5540F 喷雾阀 用户指南 TS5540 TS5540F 분…
1
Techcon Systems
TS5540
TS5540F
Spray Valves
User Guide
English, Simplified Chinese, Traditional Chinese and Korean version
Copyright © OK International
TS5540
TS5540F
噴霧閥
使用者指南
TS5540
TS5540F
喷雾阀
用户指南
TS5540
TS5540F
분사 밸브
사용설명서
2
CONTENTS
Page number
1. Safety ................................................................................ 1
2. Specifications ................................................................... 3
3. Features ............................................................................ 3
4. Connecting the Valve ....................................................... 4
5. Operating Instructions .................................................. 4-5
6. Troubleshooting ................................................................ 6
7. Maintenance and Cleaning ......................................... 7 - 8
8. Spare Parts and Accessories ............................................. 9
9. Limited Warranty ............................................................. 9
1. SAFETY
1.1 Intended Use:
WARNING: Use of this equipment in ways other than those described in this
User Guide may result in injury to person or damage to property. Use this
equipment only as described in this User Guide or in the TS5540 User Guide
webpage at http://www.techconsystems.com/literature/lit_manuals.cfm
OK International cannot be responsible for injuries or damages resulting from
unintended applications of its equipment. Unintended uses may result from
taking the following actions:
• Making changes to equipment that has not been recommended in the
User Guide
• Using incompatible or damaged replacement parts
• Using unapproved and/or unsafe accessories, auxiliary equipment and
attachment materials and methodology
1.2 Safety Precautions:
• Do not operate this unit in excess of maximum ratings/settings
• Always wear appropriate personal protective eyewear, clothing or
apparel when operating or cleaning/servicing the equipment
• The fluid being dispensed may be toxic and/or hazardous. Refer to
Material Safety Data Sheet for proper handling and safety precautions
9
8. 예비 부품 및 액세서리
TS5540/TS5540F 예비 부품 및 액세서리 정보는 다음 주소의
TS5540/TS5540F 사용설명서 웹페이지를 확인하시기 바랍니다.
http://www.techconsystems.com/literature/lit_manuals.cfm
9. 제한 보증
OK International 은 최초 구매자를 대상으로 소재 및 제조상의 결함에 한해
1 년 동안 본 제품을 보증하여 드리되, 일반적인 마모나 긁힘, 오용 및
잘못된 설치로 인한 장비 손상 등은 제외합니다. 보증에 의거하여 결함이
있는 제품이나 부속품 및 부품은 (OK International 의 옵션에 따라) 무료로
수리 또는 교환해 드립니다. 보증에 따라 결함이 있는 제품을 구매하신
고객께서는 지정된 OK International 공인 서비스 센터로 제품을 보내시기
전에 가까운 OK International 사무소나 유통 업체에 연락하셔서 반품
인증을 받아주시기 바랍니다. 가장 가까운 OK International 사무소나 유통
업체에 관한 정보는 www.techconsystems.com 을 방문하셔서 확인할 수
있습니다. OK International 은 통보 없이 엔지니어링 제품을 변경할 권리를
가지고 있습니다.
TSI-0267A_B

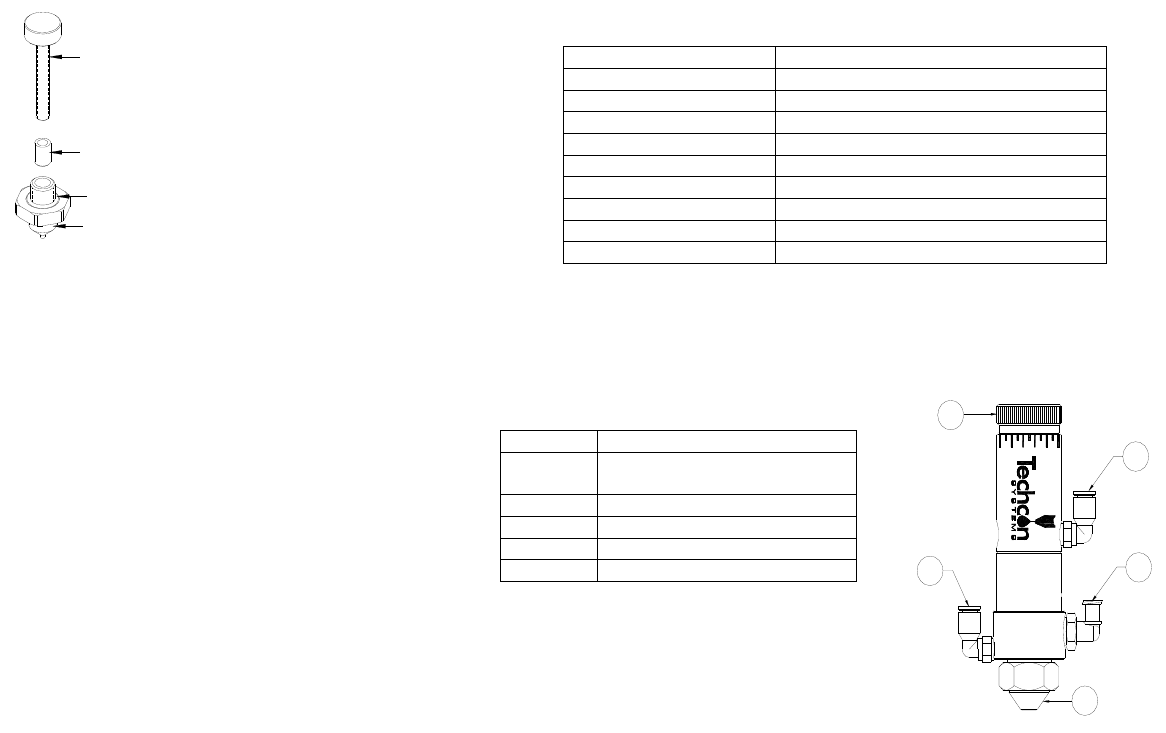

그림 4.0
노즐
O 링
시트
손나사
Nozzle
Seat
Thumb Screw
O-ring
3
2. SPECIFICATIONS
Teflon® and Delrin® are registered trademarks of E.I. DuPont.
3. FEATURES
Size 104.1 x 25.4 mm (4.1” x 1.0”)
Weight 331g (0.73lb)
Fluid Inlet Port 1/8” NPT female
Air Inlet Port 10-32 UNF-2B
Atomize Air Inlet Port 10-32 UNF-2B
Fluid Pressure 100 psi (6.9 bar) maximum
Activation Pressure 70 psi (4.8 bar) minimum
Wetted Parts 303 stainless steel, Delrin®, Teflon®
Air Cylinder Material 303 stainless steel
Operating Frequency Exceeds 400 cycles/min.
Items # Description
1 Stroke Control Adjustment
Knob
2 Valve-actuating Air Inlet Port
3 Fluid Inlet Port
4 Removable Spray Cap
5 Atomize Air Inlet Port
2
3
5
4
1
Figure 1.0
