i3070 Lean Inline System (E9988EL)
Replacing the Power Supply 15

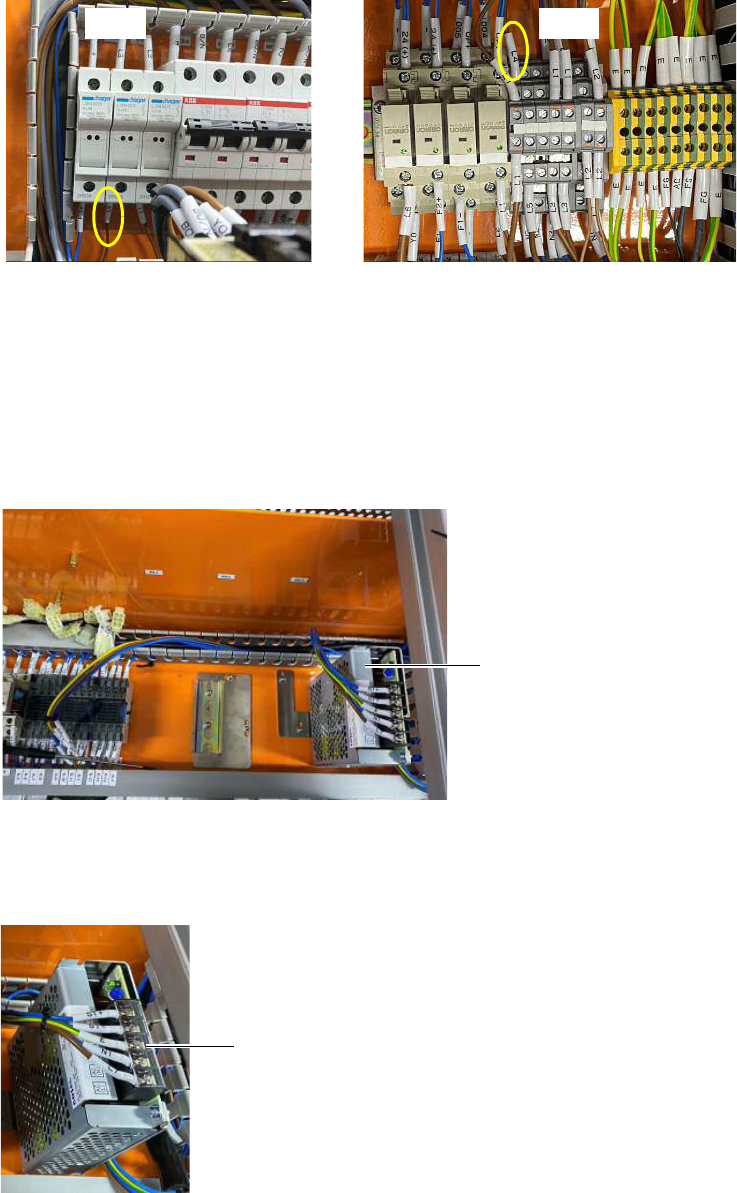

15 Connect a new cable labeled L4 from F-4 to TB-2.
Continue with Completing the installation.
Installing the Cosel 6.4 A AC/DC power supply
If installing the Cosel 6.4 A AC/DC power supply, follow step 16 through step 20.
16 Install the bracket and mount the new Cosel 6.4 A AC/DC power supply.
17 Connect the cables labeled ST+, ST-, E, N1, and L7 (formerly from PS3) to the
Cosel power supply. Tighten the screws to secure the cables and close the
protective cover.
TB-2F-4
Cosel 6.4 A AC/DC power
supply with bracket
protective cover
16 Replacing the Power Supply
i3070 Lean Inline System (E9988EL)
Completing the installation
18 Make sure all the cables are routed properly in the trunking, then close all the
trunking covers.
19 Ensure all connections are correct before securing the electrical panel cover.
20 Close and secure the system’s top cover.
i3070 4-mod Inline System (E9986E)
Replacing the Power Supply 17
i3070 4-mod Inline System (E9986E)
1 Remove the button screws securing the system’s top cover at the electrical
panel side, then remove the top cover.
2 Remove the trunking covers to access the cables.
3 Open the F-3 fuse holder and replace the 2.5 A slow blow fuse with a new 6.0 A
slow blow fuse.
Turn off the main switch before beginning any replacement
work.
F-3
