Keysight i3070 Inline In-Circuit Test System Replacing the Power Supply Parts 4 i3070 Inline System (E9988E) 5 i3070 Lean Inline System (E9988EL) 10 i3070 4-mod Inline System (E9986E) 17 T ools r equir ed • Allen key • S…
Notices
© Keysight Technologies 2020
No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a
foreign language) without prior
agreement and written consent from
Keysight Technologies as governed by
United States and international
copyright laws.
Edition
Edition 2, May 2020
Published by:
Keysight Technologies
1400 Fountaingrove Parkway
Santa Rosa, CA 95403-1738
United States
Warranty
THE MATERIAL CONTAINED IN THIS
DOCUMENT IS PROVIDED "AS IS,"
AND IS SUBJECT TO BEING
CHANGED, WITHOUT NOTICE, IN
FUTURE EDITIONS. FURTHER, TO THE
MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, KEYSIGHT
DISCLAIMS ALL WARRANTIES, EITHER
EXPRESS OR IMPLIED WITH REGARD
TO THIS MANUAL AND ANY
INFORMATION CONTAINED HEREIN,
INCLUDING BUT NOT LIMITED TO THE
IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. KEYSIGHT
SHALL NOT BE LIABLE FOR ERRORS
OR FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES IN
CONNECTION WITH THE
FURNISHING, USE, OR
PERFORMANCE OF THIS DOCUMENT
OR ANY INFORMATION CONTAINED
HEREIN. SHOULD KEYSIGHT AND THE
USER HAVE A SEPARATE WRITTEN
AGREEMENT WITH WARRANTY
TERMS COVERING THE MATERIAL IN
THIS DOCUMENT THAT CONFLICT
WITH THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE AGREEMENT
WILL CONTROL.
Technology Licenses
The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance with
the terms of such license.
U.S. Government Rights
The Software is "commercial computer
software," as defined by Federal
Acquisition Regulation ("FAR") 2.101.
Pursuant to FAR 12.212 and 27.405-3
and Department of Defense FAR
Supplement ("DFARS") 227.7202, the
U.S. government acquires commercial
computer software under the same
terms by which the software is
customarily provided to the public.
Accordingly, Keysight provides the
Software to U.S. government
customers under its standard
commercial license, which is embodied
in its End User License Agreement
(EULA), a copy of which can be found at
http://www.keysight. com/find/sweula.
The license set forth in the EULA
represents the exclusive authority by
which the U.S. government may use,
modify, distribute, or disclose the
Software. The EULA and the license set
forth therein, does not require or
permit, among other things, that
Keysight: (1) furnish technical
information related to commercial
computer software or commercial
computer software documentation that
is not customarily provided to the
public; or (2) relinquish to, or otherwise
provide, the government rights in
excess of these rights customarily
provided to the public to use, modify,
reproduce, release, perform, display, or
disclose commercial computer software
or commercial computer software
documentation. No additional
government requirements beyond
those set forth in the EULA shall apply,
except to the extent that those terms,
rights, or licenses are explicitly required
from all providers of commercial
computer software pursuant to the FAR
and the DFARS and are set forth
specifically in writing elsewhere in the
EULA. Keysight shall be under no
obligation to update, revise or
otherwise modify the Software.
Safety Notices
A WARNING notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in personal injury or death.
Do not proceed beyond a WARNING
notice until the indicated conditions are
fully understood and met.
A CAUTION notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in damage to the product
or loss of important data. Do not
proceed beyond a CAUTION notice until
the indicated conditions are fully
understood and met.
4 Replacing the Power Supply
Parts
Parts

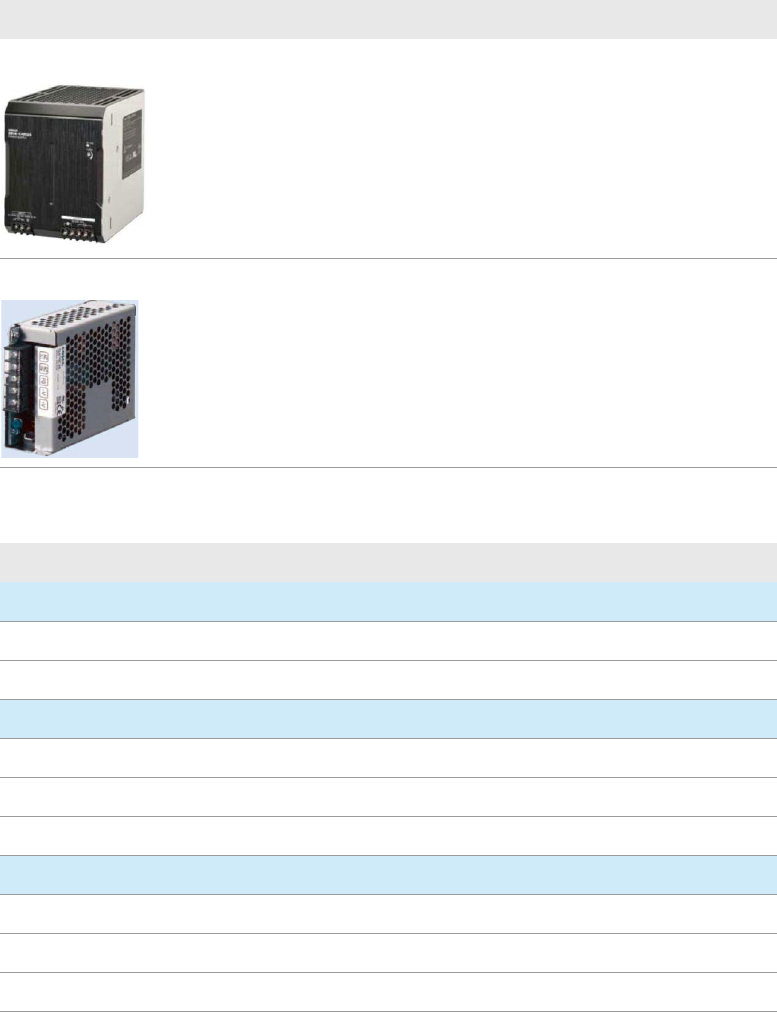

Table 1 Power Supply
Part Number Description
0950-6343 Omron Power Supply AC/DC 480W 1-Output 24V 20A
Replaces PS1 and PS2 (0950-5621).
Note: Even if only one of the power supplies (PS1 or PS2) is faulty, both
need to be replaced.
0950-6344 Cosel Power Supply AC-DC 153.6W 1-Output 24V 6.4A
Replaces PS3 (0950-5621).
Table 2 Additional parts required
Part Number Description
For i3070 Inline System (E9988E)
E9988-61208 Omron & Cosel Power Supply Bracket with DIN Rail, Standard Inline
E9988-61615 Cables Set for Omron Power Supply 20A Replacement, Standard Inline
For i3070 Lean Inline System (E9988EL)
E9988-61209 Omron Power Supply Bracket, Lean Inline & EMU
E9988-61616 Cables Set for Omron Power Supply 20A Replacement, Lean Inline
E9988-61210 Cosel Power Supply Bracket, Lean Inline
For i3070 4-mod Inline System (E9986E)
E9988-61209 Omron Power Supply Bracket, Lean Inline & EMU
E9986-61601 Cables Set for Omron Power Supply 20A Replacement, EMU
E9986-61206 Cosel Power Supply Bracket, EMU
