3.2. Board data
When this function is effective, the [Print] - [Solder Detect] tab is enabled.

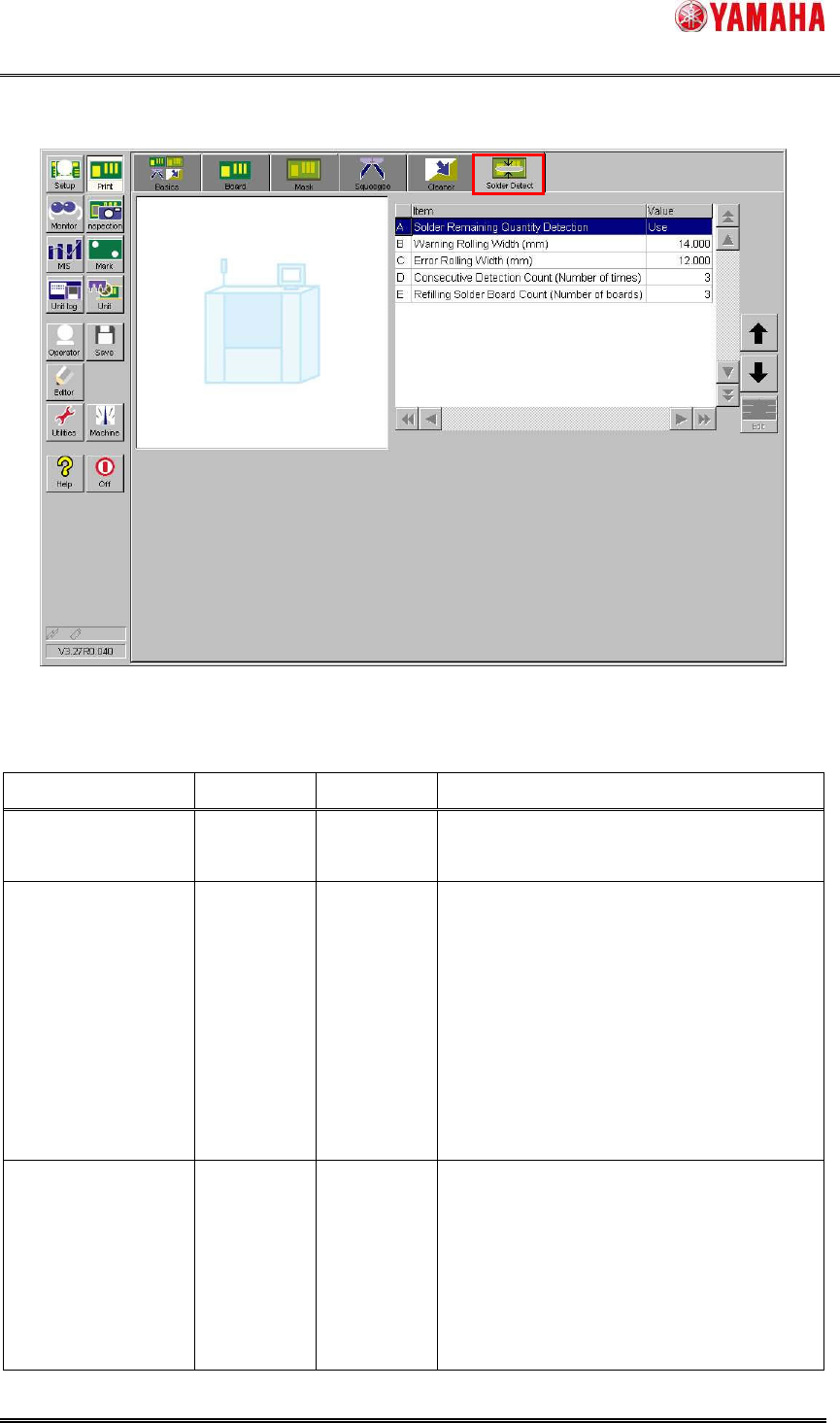

Fig.3.3 [Print] - [Solder Detect] screen
Table3.1 Setting items of board data
Item Initial value
Input range
Explanation
Solder Remaining
Quantity Detection
Not Use Not Use
/ Use
Set whether “Solder Remaining Quantity
Detection” function is used or not.
Warning Rolling
Width (mm)
14.000
0.000
~99.999
Set the rolling width that ”Ea8986:Solder
Empty Warning” message is displayed.
Actually, this message is displayed when
the rolling width falls below this value
consecutively in “Consecutive Detection
Count”(see below).
Auto-running is continued while displaying
warning.
Error Rolling Width
(mm)
12.000
0.000
~99.999
Set the rolling width that ”Ea8987:Solder
Empty Error” message is displayed.
Actually, this message is displayed when
the rolling width falls below this value
consecutively in “Consecutive Detection
Count”(see below).
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50128
5/18
Auto-running is stopped when displayed
error.
If “Error Rolling Width” is larger than
“Warning Rolling width”, “Ea8980:Data
Check Error” is displayed when data is
checked.
Consecutive
Detection Count
(Number of times)
3
1~9999 Set necessary number of consecutive
scanning times until “Ea8986:Solder
Empty Warning” or “Ea8987:Solder Empty
Error“ is displayed.
Rolling shape is sometimes unstable. If
warning or error is judged by only one
rolling width scan result, warning or error
might be caused by mistake.
To avoid this, “Ea8986:Solder Empty
Warning” and “Ea8987:Solder Empty
Error” can be displayed only when the
rolling width falls below “Warning Rolling
Width” or “Error Rolling Width”
consecutively in “Consecutive Detection
Count” times.
Refilling Solder
Board Count
(Number of boards)
3
0~9999 Set the production board amount that
neglects the rolling width scan result just
after solder supply.
The rolling width might be scanned
incorrectly just after solder supply because
solder is not uniform until some boards are
printed.
To avoid this, warning or error is able to be
not counted even if scan result fall below
“Warning Rolling Width” or “Error Rolling
Width” from solder supply until the
production of board amount set by
“Refilling Solder Board Count” completed.
Besides, production board count is started
when “Yes” button is tapped in
“Ea8988:Supply Solder” message.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD.
MDOC-SOFT50128
6/18
4. Details
4.1. Auto-running
During auto-running, the solder rolling width on the mask is scanned every time when the
squeegee is turning around on the front side (after backward printing; before forward printing).
The solder rolling width is not scanned on the rear side (after forward printing; before
backward printing) by mechanical constraint.
4.1.1. Solder Empty Warning
If the rolling width is scanned as smaller than “Warning Rolling Width” consecutively in
“Consecutive Detection Count” times, ”Ea8986: Solder Empty Warning” (Fig.4.1) is displayed.
(Auto-running is continued while the warning is displayed). When this message was displayed,
prepare for solder supply.

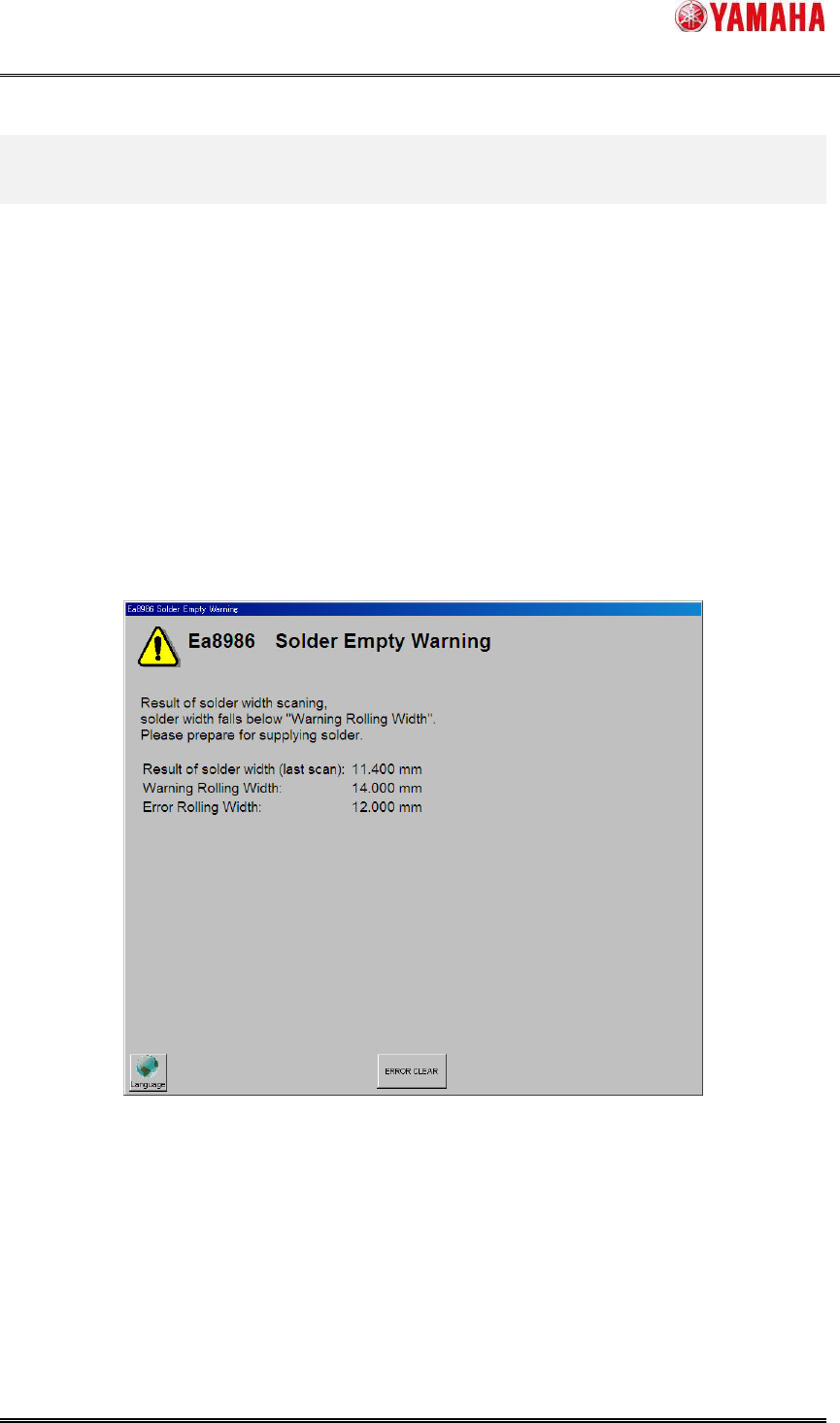

Fig.4.1 “Ea8986:Solder Empty Warning” message
When the “Ea8986: Solder Empty Warning” message is displayed, the ”SOLDER” sign blinks
on the status area and the signal tower blinks in yellow.
When solder is supplied during the warning and the rolling width exceeds “Warning Rolling
Width” consecutively in “Consecutive Detection Count” times, the ”SOLDER” sign on the status
area disappears.
