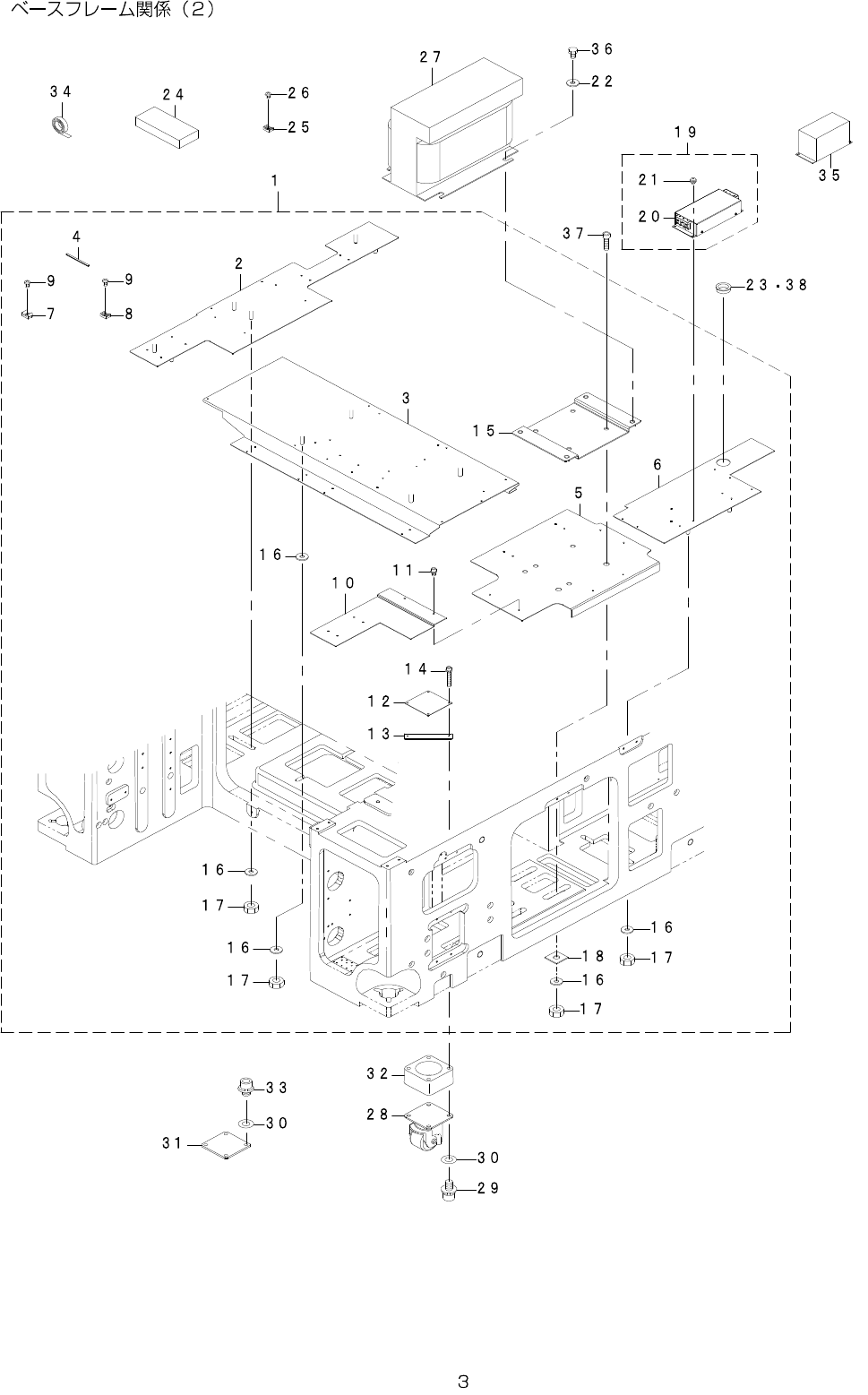

2. BASEFRAMECOMPONENTS(2)
- -

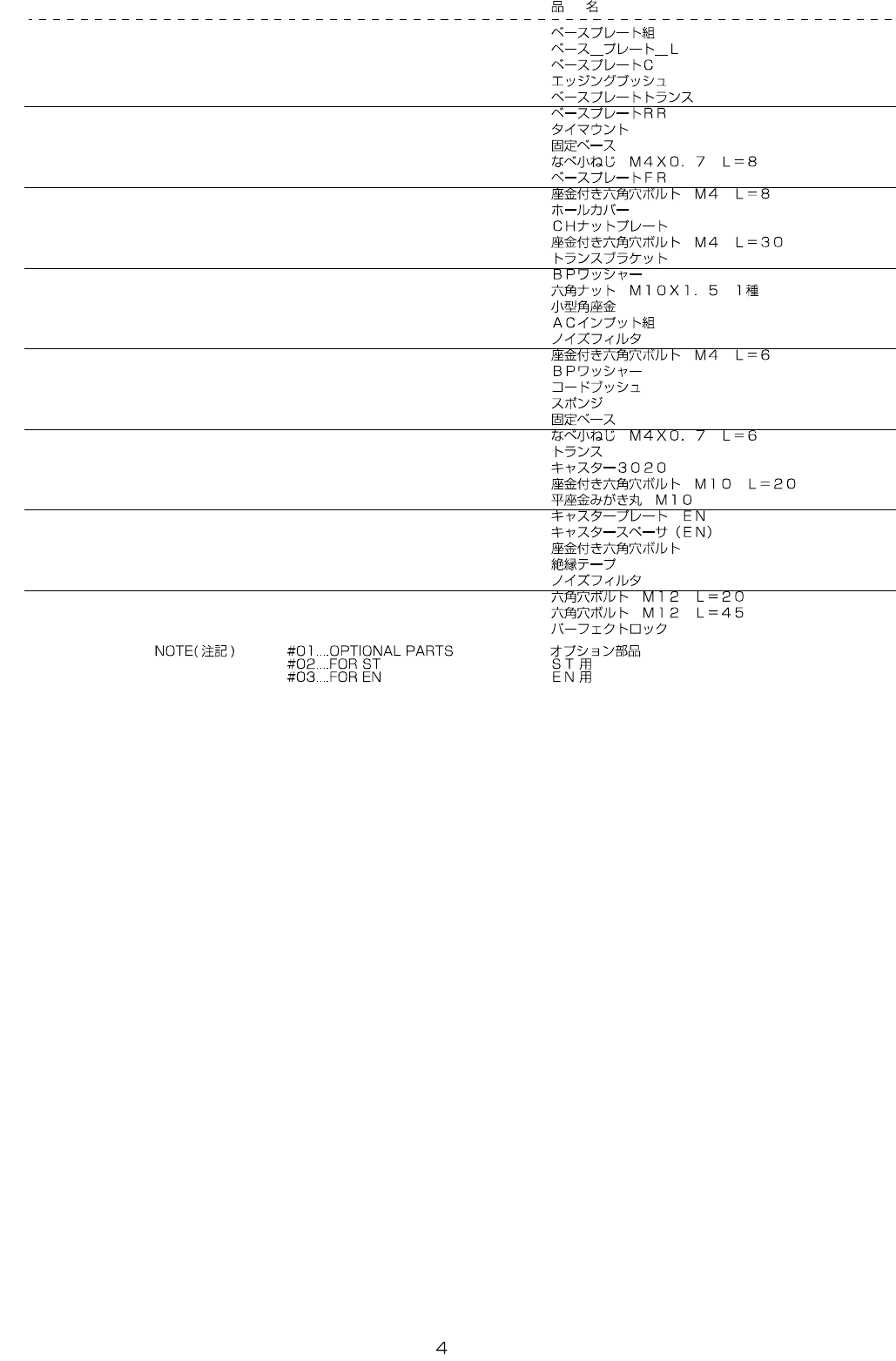

REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-83538 BASEPLATEASSY 1
2 401-14022 BASE_PLATE_L (1)
3 401-82999 BASE_PLATE_C (1)
4 HX-0009600-0A EDGING (0.07)
5 401-82997 BASE_PLATE_TRANS (1)
6 401-82996 BASE_PLATE_RR (1)
7 HX-0055700-00 TIEMOUNT (6)
8 HX-0029400-00 FIXEDBASE (8)
9 SM-4040801-SC SCREWM4X0.7L=8 (14)
10 401-08554 BASEPLATEFR (1)
11 SL-6040892-TN SCREWM4L=8 (2)
12 400-94549 HOLECOVER (4)
13 400-98142 CHNUTPLATE (4)
14 SL-6043092-TN SCREWM4L=30 (8)
15 401-82998 TRANS_BRACKET (1)
16 400-94475 BPWASHER (22)
17 NM-6100001-SC NUTM10X1.5TYPE1 (18)
18 400-44814 WASHERPLATE (4)
19 401-83540 ACINPUTUNIT 1
20 401-82379 NOISEFILTER (1)
21 SL-6040692-TN SCREWM4L=6 (4)
22
#01
400-94475 BPWASHER 4
23
#02
HX-0018800-0F CORDBUSH 1
24 400-80833 SPONGE 22
25 HX-0029400-00 FIXEDBASE 31
26 SM-4040601-SC SCREWM4X0.7L=6 31
27
#01
401-83386 TRANSFORMER 1
28
#01
400-94543 CASTER3020 4
29
#01
SL-6102042-TN SCREWM10L=20 16
30
#01
WP-1052001-SC WASHER10 32
31
#01
400-94545 CASTERPLATEEN 4
32
#01
400-00406 CASTERSPACER(EN) 4
33
#01
SL-6104042-TN BOLT 16
34 400-45554 INSULATIONTAPE 0.3
35
#01
HN-0040100-00 NOISEFILTER 1
36
#01
SM-9122003-SC BOLTM12L=20 4
37 SM-6124502-TN BOLTM12L=45 4
38
#03
HX-0057900-00 PERFECTROCK 1
- -
