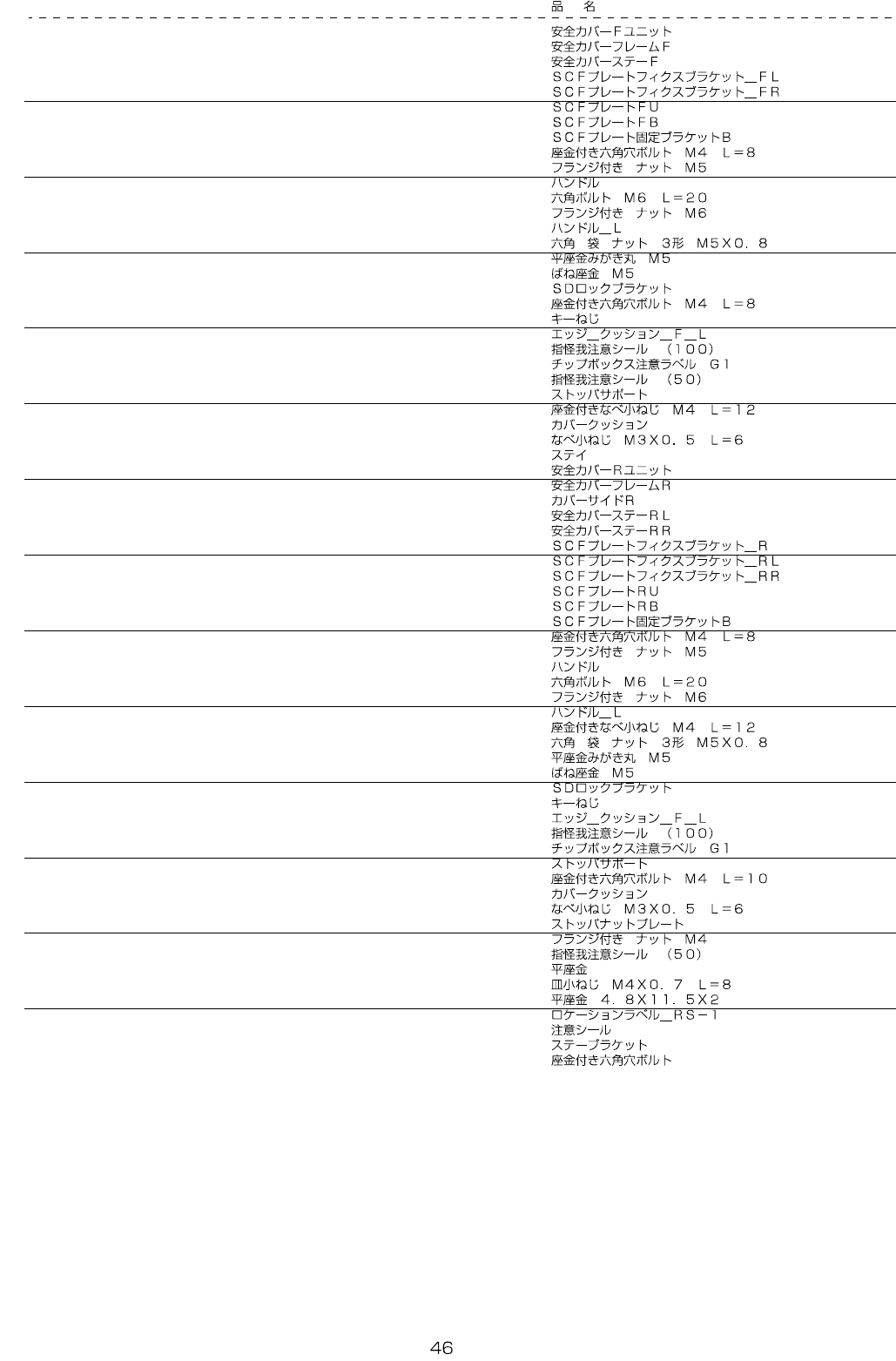

- - 24. COVERCOMPONEN TS(6)(AFTERM/CRE V.D)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-83526 SAFETY_COVER_F_UNIT 1

2 401-83458 SAFETY_COVER_FRAME_F (1)

3 401-83459 SAFETY_COVER_STAY_F (2)

4 401-83460 SCF_PLATE_FIXED_BR_FL (1)

5 401-83461 SCF_PLATE_FIXED_BR_FR (1)

6 401-83462 SCF_PLATE_FU (1)

7 401-83463 SCF_PLATE_FB (1)

8 401-34622 SCF_PLATE_FIXED_BR_B (1)

9 SL-6040892-TN SCREWM4L=8 (16)

10 NM-3050610-SF FLANGENUTM5 (19)

11 401-22998 HANDLE (1)

12 SM-9062003-SC SCREWM6L=20 (2)

13 NM-3060810-SF FLANGENUTM6 (2)

14 401-13967 HANDLE_L (1)

15 NM-7050032-SC HEXAGONALCAPNUT3M5X0.8 (4)

16 WP-0531001-SC WASHERM5 (4)

17 WS-0510002-KN SPRINGWASHERM5 (4)

18 401-34618 SD_LOCK_BRACKET (1)

19 SL-6040892-TN SCREWM4L=8 (2)

20 400-80490 KEY_SCREW (2)

21 401-14319 EDGE_CUSHION_F_L (1)

22 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)

23 400-51621 CHIPBOXNOTICELABELG1 (1)

24 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)

25 400-01464 STOPPERSUPPORT (1)

26 SL-4041291-SC SCREWM4L=12 (2)

27 400-49671 COVERCUSHION (1)

28 SM-4030601-SC SCREWM3X0.5L=6 (1)

29 400-77321 STAY 2

30 401-83527 SAFETY_COVER_R_UNIT 1

31 401-83449 SAFETY_COVER_FRAME_R (1)

32 401-83450 COVER_SIDE_R (1)

33 401-83451 SAFETY_COVER_STAY_RL (1)

34 401-83452 SAFETY_COVER_STAY_RR (1)

35 401-83453 SCF_PLATE_FIXED_BR_R (1)

36 401-83454 SCF_PLATE_FIXED_BR_RL (1)

37 401-83455 SCF_PLATE_FIXED_BR_RR (1)

38 401-83456 SCF_PLATE_RU (1)

39 401-83457 SCF_PLATE_RB (1)

40 401-34622 SCF_PLATE_FIXED_BR_B (1)

41 SL-6040892-TN SCREWM4L=8 (11)

42 NM-3050610-SF FLANGENUTM5 (17)

43 401-22998 HANDLE (1)

44 SM-9062003-SC SCREWM6L=20 (2)

45 NM-3060810-SF FLANGENUTM6 (2)

46 401-13967 HANDLE_L (1)

47 SL-4041291-SC SCREWM4L=12 (2)

48 NM-7050032-SC HEXAGONALCAPNUT3M5X0.8 (4)

49 WP-0531001-SC WASHERM5 (4)

50 WS-0510002-KN SPRINGWASHERM5 (4)

51 401-34618 SD_LOCK_BRACKET (1)

52 400-80490 KEY_SCREW (2)

53 401-14319 EDGE_CUSHION_F_L (1)

54 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)

55 400-51621 CHIPBOXNOTICELABELG1 (1)

56 400-01464 STOPPERSUPPORT (1)

57 SL-6041092-TN SCREWM4L=10 (3)

58 400-49671 COVERCUSHION (1)

59 SM-4030601-SC SCREWM3X0.5L=6 (1)

60 401-47221 STOPPER_NUT_PLATE (1)

61 NM-3040520-SF FLANGENUTM4 (1)

62 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)

63 WP-0651646-SC WASHER (4)

64 SM-1040801-SC SCREWM4X0.7L=8 8

65 WP-0482016-SC PLAINWASHER4.8X11.5X2 4

66 401-83471 LOCATION_LABEL_RS-1 1

67 400-79329 CAUTIONSEAL 2

68 401-86243 STAY_BRACKET 1

69 SL-6061692-TN BOLT 2

- -

24.COVERCOMPONENTS(6)(AFTERM/CREV.D)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-96674 SAFETY_COVER_F_UNIT_CD 1

2 401-96686 SAFETY_COVER_FRAME_F (1)

3 401-96687 SAFETY_COVER_STAY_F (2)

4 401-96689 SCF_PLATE_FU (1)

5 SL-6040892-TN SCREWM4L=8 (16)

6 NM-3050610-SF FLANGENUTM5 (21)

7 401-22998 HANDLE (1)

8 SM-6062002-TN SCREWM6L=20 (2)

9 NM-3060810-SF FLANGENUTM6 (2)

10 401-13968 HANDLE_S (1)

11 401-34618 SD_LOCK_BRACKET (1)

12 SL-6040892-TN SCREWM4L=8 (2)

13 400-80490 KEY_SCREW (2)

14 401-14319 EDGE_CUSHION_F_L (1)

15 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)

16 400-51621 CHIPBOXNOTICELABELG1 (1)

17 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)

18 400-01464 STOPPERSUPPORT (1)

19 SL-6041092-TN SCREW (2)

20 401-34189 MAGNET (1)

21 SM-4030601-SC SCREWM3X0.5L=6 (1)

22 402-21090 SAFETY_UNDER_COVER_A_LABEL (1)

23 401-96694 SCF_HINGE_BRACKET (4)

24 SL-6051292-TN BOLT (20)

25 400-92716 TAPECUTTERDANGERLABEL (1)

26 400-77321 STAY 2

27 401-96675 SAFETY_COVER_R_UNIT_CD 1

28 402-21090 SAFETY_UNDER_COVER_A_LABEL (1)

29 401-96694 SCF_HINGE_BRACKET (4)

30 400-92716 TAPECUTTERDANGERLABEL (1)

31 401-96688 SAFETY_COVER_FRAME_R (1)

32 401-96695 COVER_SIDE_R (1)

33 401-83451 SAFETY_COVER_STAY_RL (1)

34 401-83452 SAFETY_COVER_STAY_RR (1)

35 401-96691 SCF_PLATE_FIXED_BR_R (1)

36 SL-6051292-TN BOLT (20)

37 SL-6041092-TN SCREWM4L=10 (3)

38 401-83456 SCF_PLATE_RU (1)

39 400-49671 COVERCUSHION (1)

40 SM-4030601-SC SCREWM3X0.5L=6 (1)

41 SL-6040892-TN SCREWM4L=8 (11)

42 NM-3050610-SF FLANGENUTM5 (17)

43 401-22998 HANDLE (1)

44 SM-6062002-TN SCREWM6L=20 (2)

45 NM-3060810-SF FLANGENUTM6 (2)

46 401-13968 HANDLE_S (1)

47 SL-4041291-SC SCREWM4L=12 (2)

48 401-47221 STOPPER_NUT_PLATE (1)

49 NM-3040520-SF FLANGENUTM4 (1)

50 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)

51 401-34618 SD_LOCK_BRACKET (1)

52 400-80490 KEY_SCREW (2)

53 401-14319 EDGE_CUSHION_F_L (1)

54 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)

55 400-51621 CHIPBOXNOTICELABELG1 (1)

56 400-01464 STOPPERSUPPORT (1)

57 WP-0651646-SC WASHER (4)

58 WP-0482016-SC PLAINWASHER4.8X11.5X2 4

59 401-83471 LOCATION_LABEL_RS-1 1

60 400-79329 CAUTIONSEAL 2

61 SM-1040801-SC SCREWM4X0.7L=8 8
