RS-1_RS-1-XL_RS-1R-Rev16.pdf - 第88页

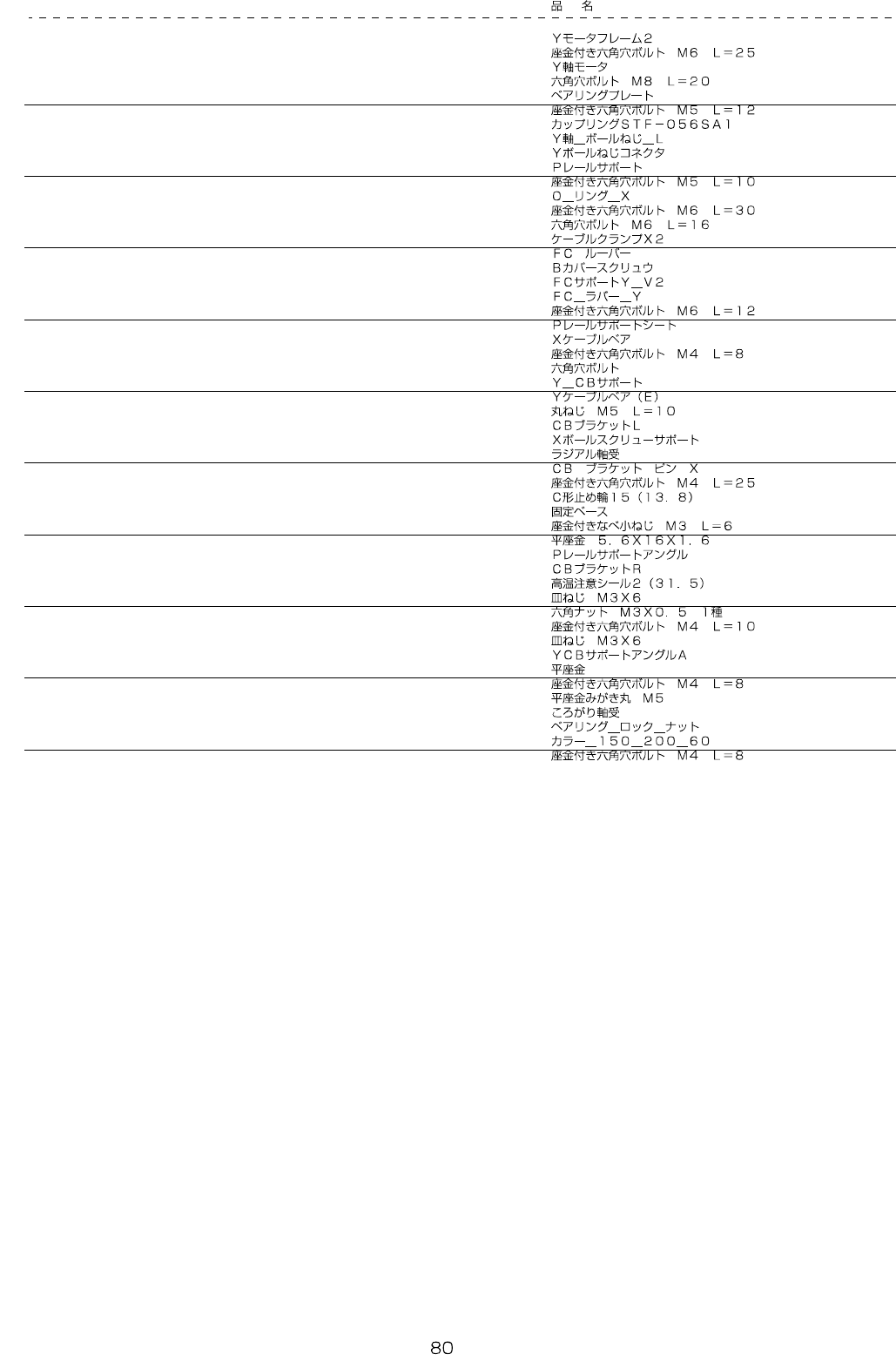

- - 41. X-YCOMPONEN TS(4)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-77461 Y_MOTOR_FRAME2 2

2 SL-6062592-TN SCREWM6L=25 8

3 401-46348 YAXISSERVOMOTOR 2

4 SM-6082002-TN SCREWM8L=20 8

5 401-77465 BEARING_PLATE 2

6 SL-6051292-TN SCREWM5L=12 8

7 401-82778 COUPLING_STF-056SA1 2

8 401-06041 Y_BALL_SCREW_L 2

9 401-06024 YBSCONNECTOR 2

10 401-82767 P_RAIL_SUPPORT 1

11 SL-6051092-TN SCREWM5L=10 3

12 400-93864 O_RING_X 2

13 SL-6063092-TN SCREWM6L=30 8

14 SM-6061602-TN SCREWM6L=16 8

15 401-82770 CABLE_CLAMP_X2 1

16 L153E-321-000 FCRUBBER 2

17 400-81751 B_COVER_SCREW 1

18 401-10219 FC_SUPPORT_Y_V2 1

19 400-98052 FC_RUBBER_Y 3

20 SL-6061292-TN SCREWM6L=12 2

21 401-82768 P_RAIL_SUPPORT_SHEET 1

22 401-10451 XCABLEBEAR 1

23 SL-6040892-TN SCREWM4L=8 2

24 SM-6041002-TN SCREW 8

25 401-82750 Y_CB_SUPPORT 1

26 400-60210 YCABLEBEAR(E) 1

27 SM-3051052-TN SCREWM5L=10 4

28 400-46005 CBBRACKETL 1

29 401-27577 X_BALL_SCREW_SUPPORT 2

30 SB-1150004-00 RADIALBEARING 2

31 L132E-421-000 CBBRACKETPINX 2

32 SL-6042592-TN SCREWM4L=25 8

33 RC-0150001-KP C-RING15(13.8) 2

34 HX-0029400-00 FIXEDBASE 3

35 SL-4030691-SC SCREWM3L=6 1

36 WP-0561616-SC WASHER5.6X16X1.6 3

37 401-83514 P_RAIL_SUPPORT_ANGLE 3

38 400-46006 CBBRACKETR 1

39 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 2

40 SM-1030601-SC SCREWM3X6 2

41 NM-6030001-SC NUTM3X0.5TYPE1 2

42 SL-6041092-TN SCREWM4L=10 3

43 SM-1030601-SC SCREWM3X6 3

44 401-82769 Y_CB_SUPPORT_ANGLE_A 1

45 WP-0431005-SP PLAINWASHER 1

46 SL-6040892-TN SCREWM4L=8 3

47 WP-0531001-SC WASHERM5 4

48 SB-1150016-00 BEARING 2

49 400-93876 BEARING_LOCK_NUT 2

50 401-77466 COLLAR_150_200_60 2

51 SL-6040892-TN SCREWM4L=8 3

- -

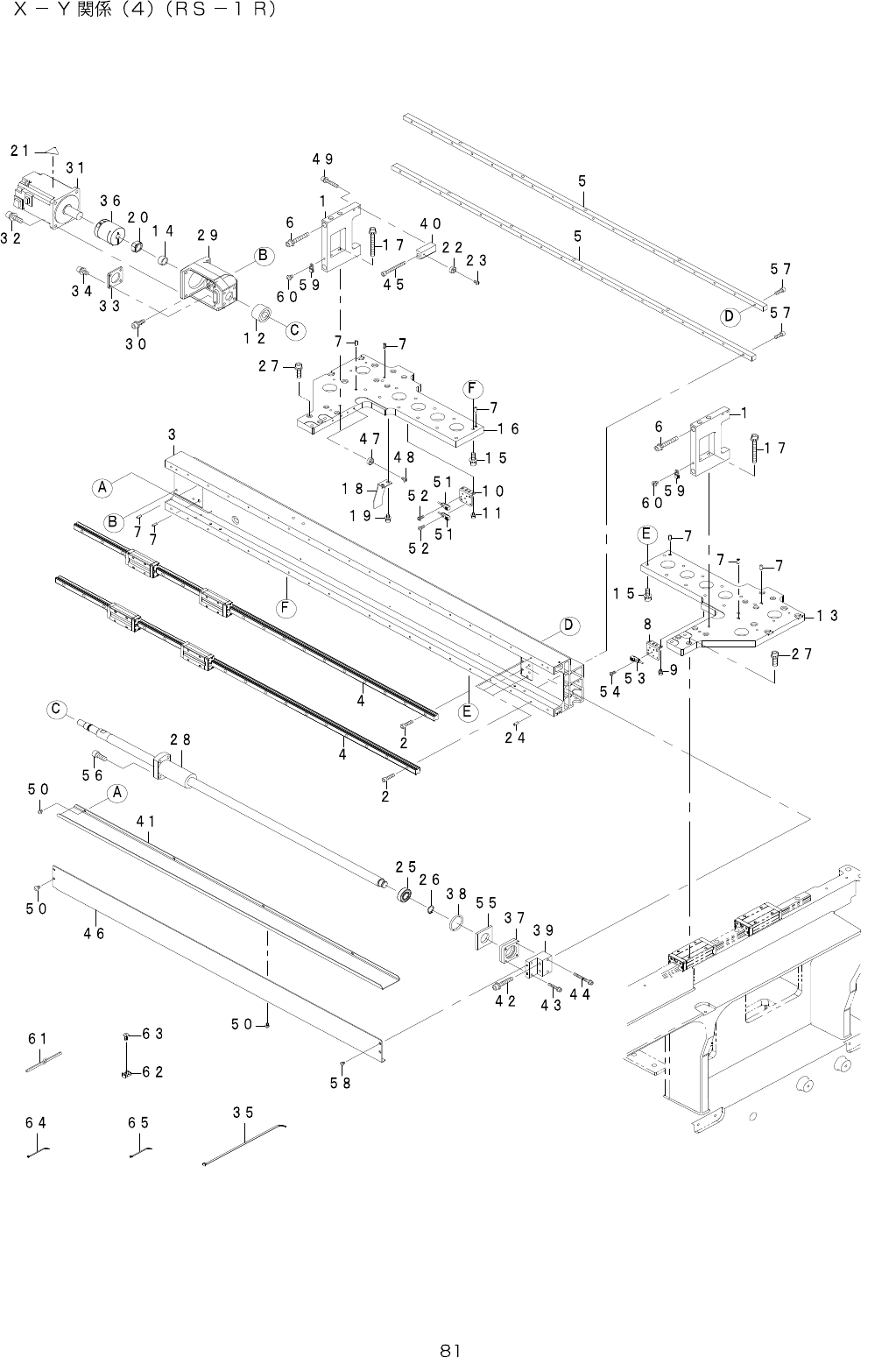

41.X-YCOMPONENTS(4)(RS-1R)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-09508 X_FRAME_END_SUPPORT_F 2

2 SM-6041602-TN SCREWM4X16 36

3 402-11716 X_AXIS_FRAME 1

4 401-82754 SHS15_L1070 2

5 402-09511 X_BACK_BAR 2

6 SL-6053592-TN BOLT 4

7 PH-0400122-C0 PARALLELPINTYPEB4X12 8

8 402-11720 X_LIMIT_BRACKET 1

9 SL-6030692-TN SCREWM3L=6 2

10 402-11720 X_LIMIT_BRACKET 1

11 SL-6030692-TN SCREWM3L=6 2

12 SB-1150016-00 BEARING 1

13 402-09504 X_FRAME_END_R 1

14 401-77466 COLLAR_150_200_60 1

15 SL-6051692-TN SCREWM5L=16 24

16 402-09503 X_FRAME_END_L 1

17 SL-6054592-TN SCREW 4

18 402-09517 Y_LIMIT_SENSOR_DOG 1

19 SL-6040892-TN SCREWM4L=8 2

20 400-93876 BEARING_LOCK_NUT 1

21 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 1

22 400-49671 COVERCUSHION 1

23 SM-4030601-SC SCREWM3X0.5L=6 1

24 PS-0400122-KP SPRINGPIN 3

25 SB-1150004-00 RADIALBEARING 1

26 RC-0150001-KP C-RING15(13.8) 1

27 SL-6052092-TN SCREWM5L=20 16

28 400-98047 XBALLSCREWXL 1

29 401-90239 X_MOTOR_FRAME2 1

30 SL-6051692-TN SCREWM5L=16 4

31 401-29653 XAXISMOTOR 1

32 SL-6062042-TN BOLT 4

33 401-77465 BEARING_PLATE 1

34 SL-6051292-TN SCREWM5L=12 4

35 HX-0023300-0G CABLEBAND 5

36 401-72739 COUPLING_X_044 1

37 401-27577 X_BALL_SCREW_SUPPORT 1

38 400-93864 O_RING_X 1

39 401-90235 X_BS_FRAME 1

40 402-09515 X_STOPPER_BLOCK 1

41 401-90237 X_OIL_GUARD_U 1

42 SL-6053092-TN SCREW 2

43 SL-6042592-TN SCREWM4L=25 2

44 SL-6044092-TN SCREW 2

45 SM-6044002-TN SCREW 1

46 401-90236 X_OIL_GUARD_F 1

47 400-49671 COVERCUSHION 1

48 SM-4030601-SC SCREWM3X0.5L=6 1

49 SL-6042592-TN SCREW 4

50 SM-3030552-TN SCREWM3L=5 10

51 401-65028 XYLMTSENSORASM 2

52 SM-4030801-SC SCREWM3X0.5L=8 2

53 401-29002 NEARSENSORCABLEASM 1

54 SM-4030801-SC SCREWM3X0.5L=8 1

55 401-82752 X_STOPPER_RUBBER 1

56 SM-6061602-TN SCREWM6L=16 4

57 SM-6041202-TN SCREWM4X0.7L=12 36

58 SM-1030552-TN 2

59 HX-0034400-00 HARNESSPARTS 6

60 SM-4040601-SC SCREWM4X0.7L=6 6

61 HX-0067100-0A GROMMET 0.1

62 HX-0029400-00 FIXEDBASE 1

63 SL-4030691-SC SCREWM3L=6 1

64 HX-0023300-00 CLIP 8

65 HX-0023300-0E NYLONBAND 14
