- - 36. COVERCOMP ONENTS(18)(TYPEXL )
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 401-96674 SAFETY_COVER_F_UNIT_CD 1
2 401-96686 SAFETY_COVER_FRAME_F (1)
3 401-96687 SAFETY_COVER_STAY_F (2)
4 401-96689 SCF_PLATE_FU (1)
5 SL-6040892-TN SCREWM4L=8 (16)
6 NM-3050610-SF FLANGENUTM5 (21)
7 401-22998 HANDLE (1)
8 SM-6062002-TN SCREWM6L=20 (2)
9 NM-3060810-SF FLANGENUTM6 (2)
10 401-13967 HANDLE_L (1)
11 401-34618 SD_LOCK_BRACKET (1)
12 SL-6040892-TN SCREWM4L=8 (2)
13 400-80490 KEY_SCREW (2)
14 401-14319 EDGE_CUSHION_F_L (1)
15 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)
16 400-51621 CHIPBOXNOTICELABELG1 (1)
17 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)
18 400-01464 STOPPERSUPPORT (1)
19 SL-6041092-TN SCREW (2)
20 400-49671 COVERCUSHION (1)
21 SM-4030601-SC SCREWM3X0.5L=6 (1)
22 401-96693 SAFETY_UNDER_COVER_A (1)
23 401-96694 SCF_HINGE_BRACKET (4)
24 SL-6051292-TN BOLT (20)
25 400-92716 TAPECUTTERDANGERLABEL (1)
26 400-77321 STAY 2
27 401-96675 SAFETY_COVER_R_UNIT_CD 1
28 401-96693 SAFETY_UNDER_COVER_A (1)
29 401-96694 SCF_HINGE_BRACKET (4)
30 400-92716 TAPECUTTERDANGERLABEL (1)
31 401-96688 SAFETY_COVER_FRAME_R (1)
32 402-19301 COVER_SIDE_R (1)
33 401-83451 SAFETY_COVER_STAY_RL (1)
34 401-83452 SAFETY_COVER_STAY_RR (1)
35 401-96691 SCF_PLATE_FIXED_BR_R (1)
36 SL-6051292-TN BOLT (20)
37 SL-6041092-TN SCREWM4L=10 (3)
38 401-83456 SCF_PLATE_RU (1)
39 400-49671 COVERCUSHION (1)
40 SM-4030601-SC SCREWM3X0.5L=6 (1)
41 SL-6040892-TN SCREWM4L=8 (11)
42 NM-3050610-SF FLANGENUTM5 (17)
43 401-22998 HANDLE (1)
44 SM-6062002-TN SCREWM6L=20 (2)
45 NM-3060810-SF FLANGENUTM6 (2)
46 401-13967 HANDLE_L (1)
47 SL-4041291-SC SCREWM4L=12 (2)
48 401-47221 STOPPER_NUT_PLATE (1)
49 NM-3040520-SF FLANGENUTM4 (1)
50 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) (1)
51 401-34618 SD_LOCK_BRACKET (1)
52 400-80490 KEY_SCREW (2)
53 401-14319 EDGE_CUSHION_F_L (1)
54 CM-3002000-06 FINGERINJURYCAUTIONLABEL(100) (1)
55 400-51621 CHIPBOXNOTICELABELG1 (1)
56 400-01464 STOPPERSUPPORT (1)
57 WP-0651646-SC WASHER (4)
58 WP-0482016-SC PLAINWASHER4.8X11.5X2 4
59 401-83471 LOCATION_LABEL_RS-1 1
60 400-79329 CAUTIONSEAL 2
61 SM-1040801-SC SCREWM4X0.7L=8 8
- -

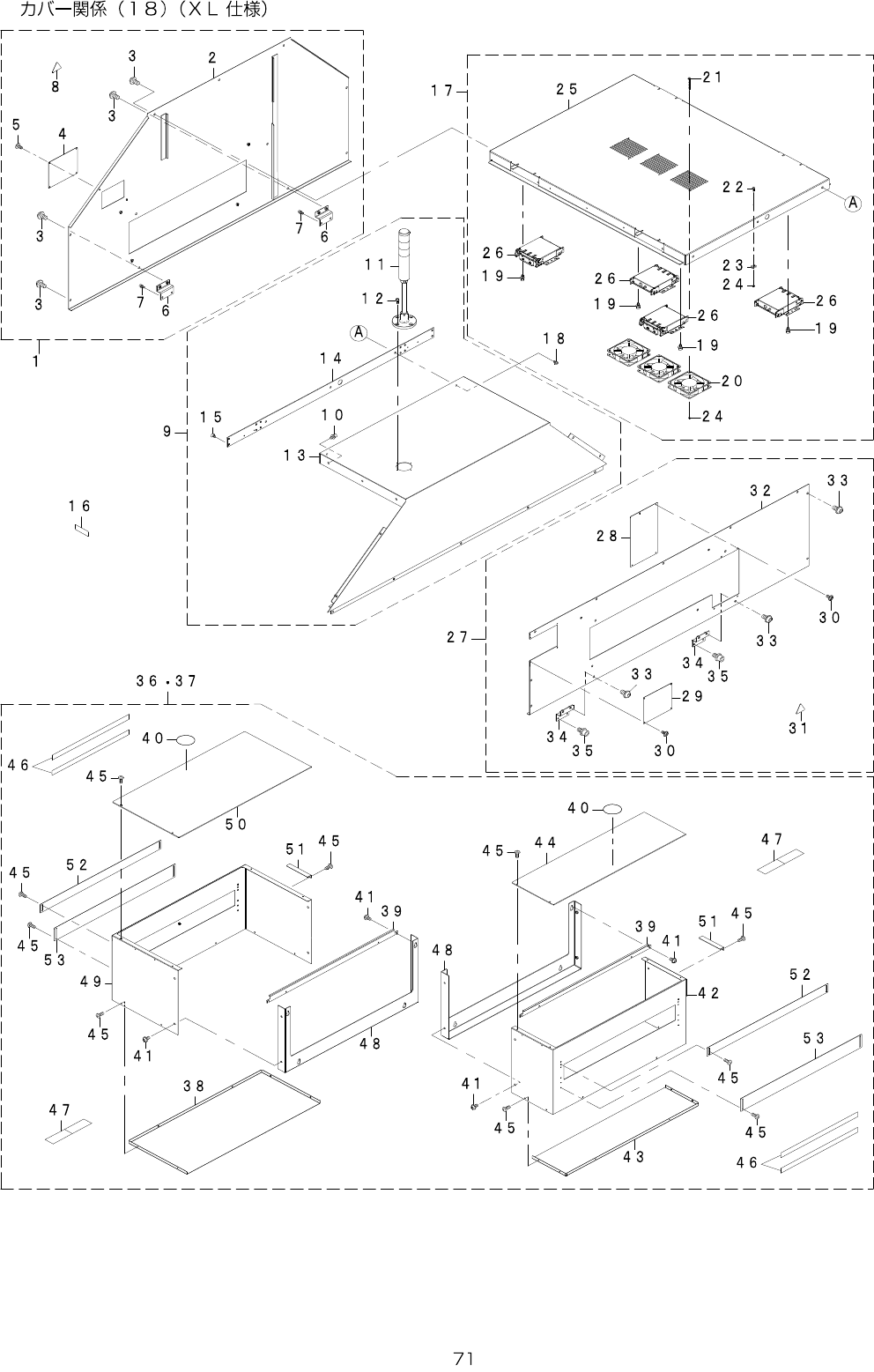

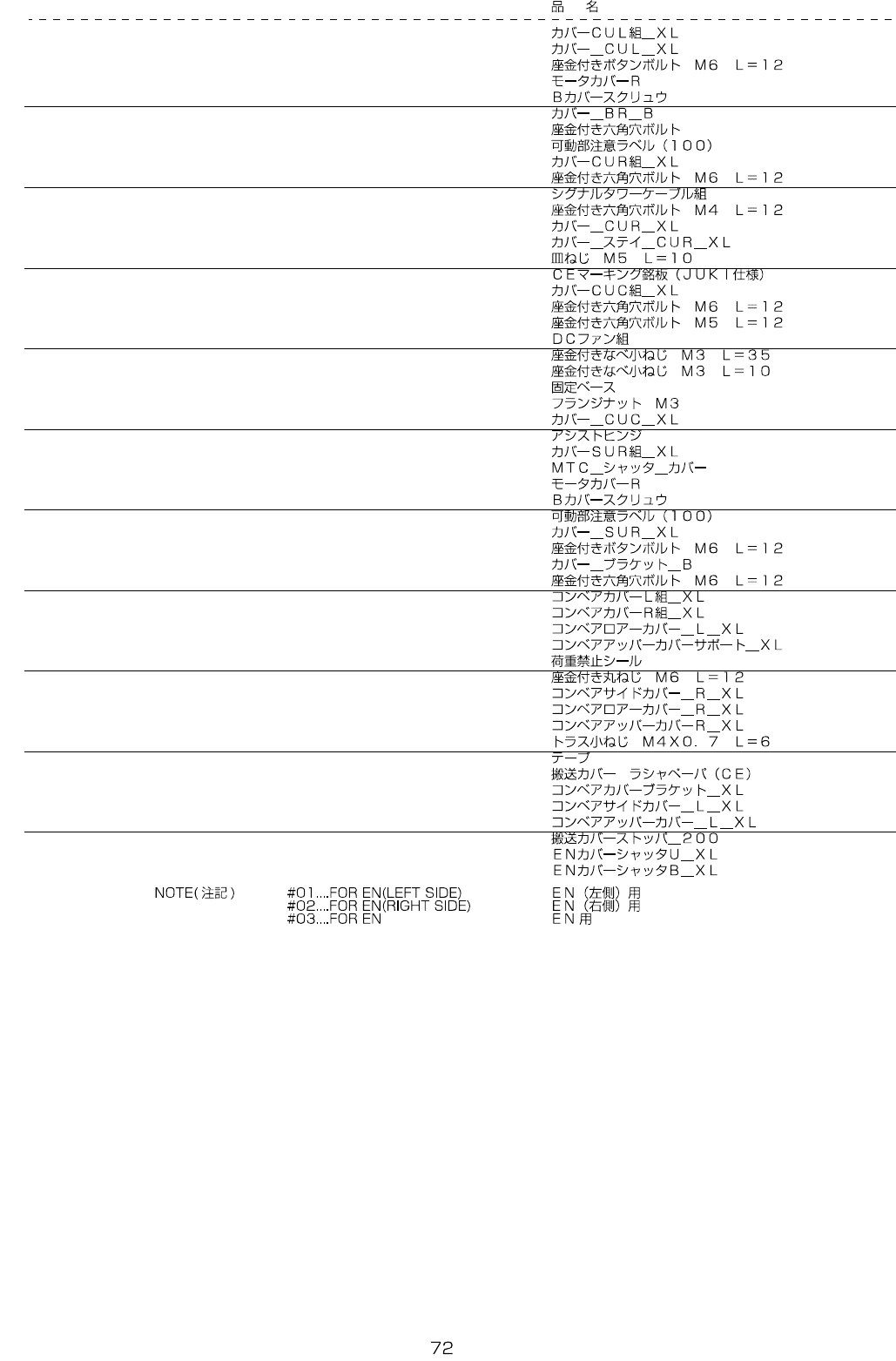

36.COVERCOMPONENTS(18)(TYPEXL)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-15528 COVER_CUL_ASM_XL 1
2 402-15044 COVER_CUL_XL (1)
3 SL-3061232-TN SCREWM6L=12 (11)
4 401-36850 MOTOR_COVER_R (1)
5 400-81751 B_COVER_SCREW (2)
6 401-47149 COVER_BR_B (2)
7 SL-6061292-TN SCREW (4)
8 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
9 402-15529 COVER_CUR_ASM_XL 1
10 SL-6061292-TN SCREWM6L=12 (4)
11 401-29009 SIGNALTOWERCABLEASM (1)
12 SL-6041292-TN SCREWM4L=12 (4)
13 402-15039 COVER_CUR_XL (1)
14 402-15040 COVER_STAY_CUR_XL (1)
15 SM-1051052-TN PLATESCREWM5L=10 (12)
16
#03
CM-5001000-01 CEMARKINGLABEL 1
17 402-15530 COVER_CUC_ASM_XL 1
18 SL-6061292-TN SCREWM6L=12 (2)
19 SL-6051292-TN SCREWM5L=12 (24)
20 401-89090 DCFANASM (3)
21 SL-4033591-SC SCREWM3L=35 (6)
22 SL-4031091-SC SCREWM3L=10 (4)
23 HX-0051900-00 FIXINGBASE (1)
24 NM-3034000-SF FLANGENUT (7)
25 402-15057 COVER_CUC_XL (1)
26 401-83447 ASSIST_HINGE (4)
27 402-15531 COVER_SUR_ASM_XL 1
28 401-47150 MTC_SHUTTLE_COVER (1)
29 401-36850 MOTOR_COVER_R (1)
30 400-81751 B_COVER_SCREW (8)
31 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
32 402-15048 COVER_SUR_XL (1)
33 SL-3061232-TN SCREWM6L=12 (11)
34 401-47149 COVER_BR_B (2)
35 SL-6061292-TN SCREWM6L=12 (4)
36
#01
402-15559 CONVEYOR_COVER_L_ASM_XL 1
37
#02
402-15560 CONVEYOR_COVER_R_ASM_XL 1
38 402-15128 CONV_LOWER_COVER_L_XL (1)
39 402-15132 CONV_UPPER_COVER_SUPPORT_XL (2)
40 E5721-729-000 LABEL (2)
41 SL-3061232-TN SCREW (16)
42 402-15127 CONV_SIDE_COVER_R_XL (1)
43 402-15129 CONV_LOWER_COVER_R_XL (1)
44 402-15131 CONV_UPPER_COVER_R_XL (1)
45 SM-0040601-SC SCREWM4X0.7L=6 (38)
46 400-01490 TAPE (3)
47 E1143-721-000 WOOLENCLOTHPAPER (4)
48 402-15125 CONV_COVER_BR_XL (2)
49 402-15126 CONV_SIDE_COVER_L_XL (1)
50 402-15130 CONV_UPPER_COVER_L_XL (1)
51 401-47192 CONVEYOR_COVER_STOPPER_200 (2)
52 400-92186 EN_COVER_SHUTTER_U_XL (2)
53 400-92187 EN_COVER_SHUTTER_B_XL (2)
