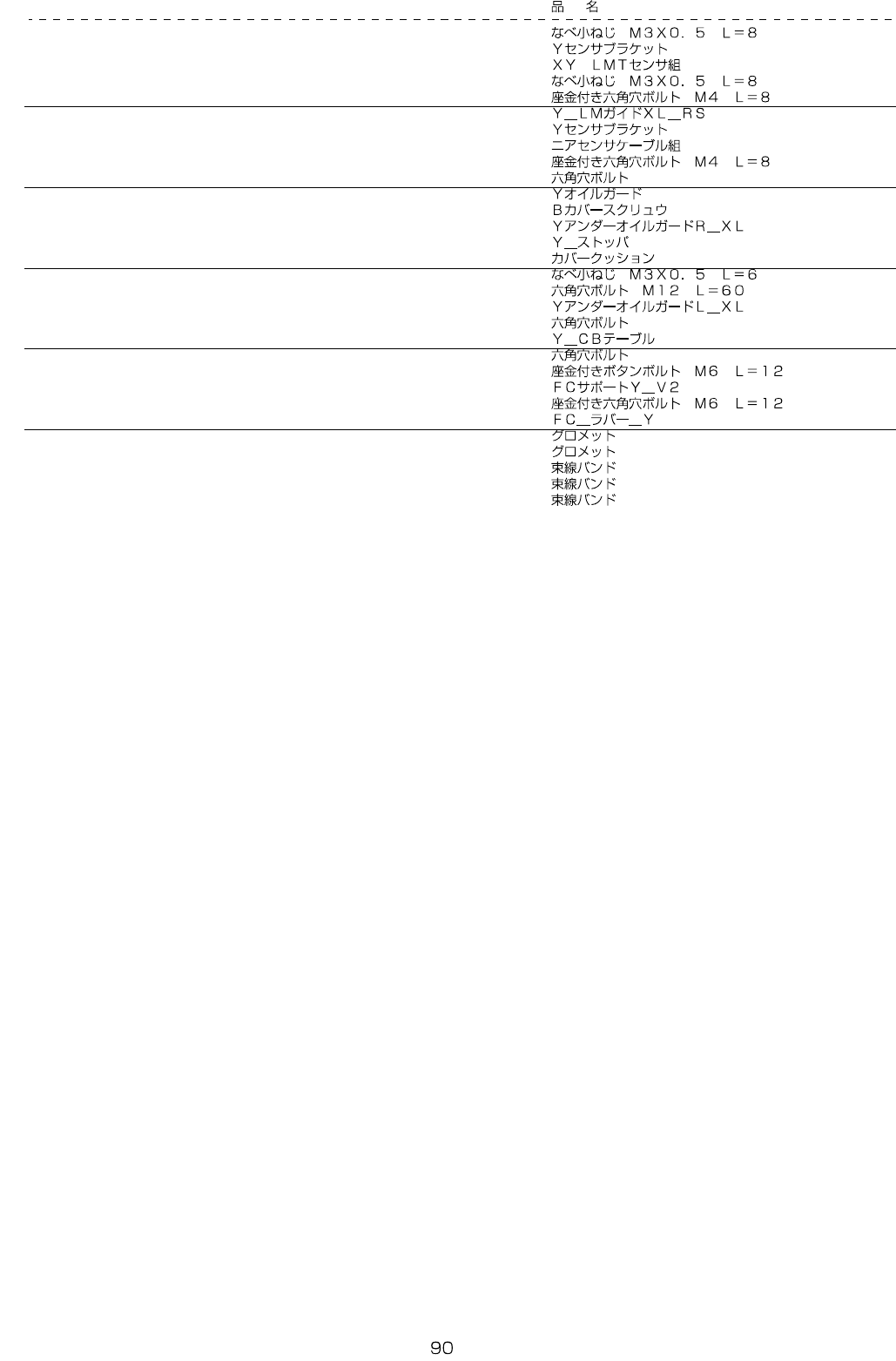

- - 46. X-YCOMPONE NTS(9)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 SM-4030801-SC SCREWM3X0.5L=8 1

2 401-46929 Y_SENSOR_BR 1

3 401-65028 XYLMTSENSORASM 2

4 SM-4030801-SC SCREWM3X0.5L=8 2

5 SL-6040892-TN SCREWM4L=8 2

6 402-15101 Y_LM_GUIDE_XL_RS 2

7 401-46929 Y_SENSOR_BR 1

8 401-29002 NEARSENSORCABLEASM 1

9 SL-6040892-TN SCREWM4L=8 2

10 SM-6051602-TN SCREW 54

11 401-46931 Y_OIL_GUARD 4

12 400-81751 B_COVER_SCREW 16

13 402-15107 Y_UNDER_OIL_GUARD_R_XL 1

14 401-66638 Y_STOPPER 4

15 400-49671 COVERCUSHION 8

16 SM-4030601-SC SCREWM3X0.5L=6 8

17 SM-6126002-TN SCREWM12L=60 8

18 402-15109 Y_UNDER_OIL_GUARD_L_XL 1

19 SM-6061202-TN BOLT 8

20 402-15108 Y_CB_TABLE 1

21 SM-6061202-TN SCREW 4

22 SL-3061232-TN SCREWM6L=12 4

23 401-10219 FC_SUPPORT_Y_V2 1

24 SL-6061292-TN SCREWM6L=12 2

25 400-98052 FC_RUBBER_Y 3

26 HX-0067100-00 GROMMET 0.27

27 HX-0067100-0A GROMMET 0.1

28 HX-0023300-00 CABLEBAND 8

29 HX-0023300-0E CABLEBAND 14

30 HX-0023300-0G CABLEBAND 5

- -

46.X-YCOMPONENTS(9)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-77461 Y_MOTOR_FRAME2 2

2 SL-6062592-TN SCREWM6L=25 8

3 401-46348 YAXISSERVOMOTOR 2

4 SM-6082002-TN SCREWM8L=20 8

5 401-77465 BEARING_PLATE 2

6 SL-6051292-TN SCREWM5L=12 8

7 401-82778 COUPLING_STF-056SA1 2

8 401-08810 Y_BALL_SCREW_XL_L40 2

9 401-06024 YBSCONNECTOR 2

10 401-82767 P_RAIL_SUPPORT 1

11 SL-6051092-TN SCREWM5L=10 3

12 400-93857 O_RING_Y 4

13 SL-6063092-TN SCREWM6L=30 8

14 SM-6061602-TN SCREWM6L=16 8

15 401-82770 CABLE_CLAMP_X2 1

16 L153E-321-000 FCRUBBER 1

17 SL-6040842-TN SCREWM4L=8 2

18 401-10219 FC_SUPPORT_Y_V2 1

19 400-98052 FC_RUBBER_Y 7

20 SL-6051292-TN BOLT 2

21 402-15166 HOUSINGANGULAR 2

22 401-10451 XCABLEBEAR 1

23 402-15167 ADJUST_BLOCK 2

24 SM-6041002-TN SCREW 8

25 402-15102 Y_CB_SUPPORT_XL 1

26 400-60210 YCABLEBEAR(E) 1

27 SM-3051052-TN SCREWM5L=10 4

28 400-46005 CBBRACKETL 1

29 402-15168 END_BRACKET 2

30 SL-6062092-TN SCREWM6L=20 4

31 L132E-421-000 CBBRACKETPINX 2

32 SL-6052092-TN SCREW 8

33 401-77465 BEARING_PLATE 2

34 HX-0029400-00 FIXEDBASE 3

35 SL-4030691-SC SCREWM3L=6 1

36 WP-0561616-SC WASHER5.6X16X1.6 3

37 401-83514 P_RAIL_SUPPORT_ANGLE 3

38 400-46006 CBBRACKETR 1

39 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 2

40 SM-1030601-SC SCREWM3X6 2

41 NM-6030001-SC NUTM3X0.5TYPE1 2

42 SL-6041092-TN SCREWM4L=10 3

43 SM-1030601-SC SCREWM3X6 3

44 402-15103 CB_SUPPORT_ANGLE_XL 1

45 SL-6051292-TN BOLT 8

46 SL-6040892-TN SCREWM4L=8 1

47 WP-0531001-SC WASHERM5 4

48 SB-1150016-00 BEARING 4

49 400-93876 BEARING_LOCK_NUT 4

50 401-77466 COLLAR_150_200_60 4

51 SL-6040892-TN SCREWM4L=8 3

52 HX-0070600-0A MOUNTBASE 5

53 SM-1040852-TP DISHSCREW 1
