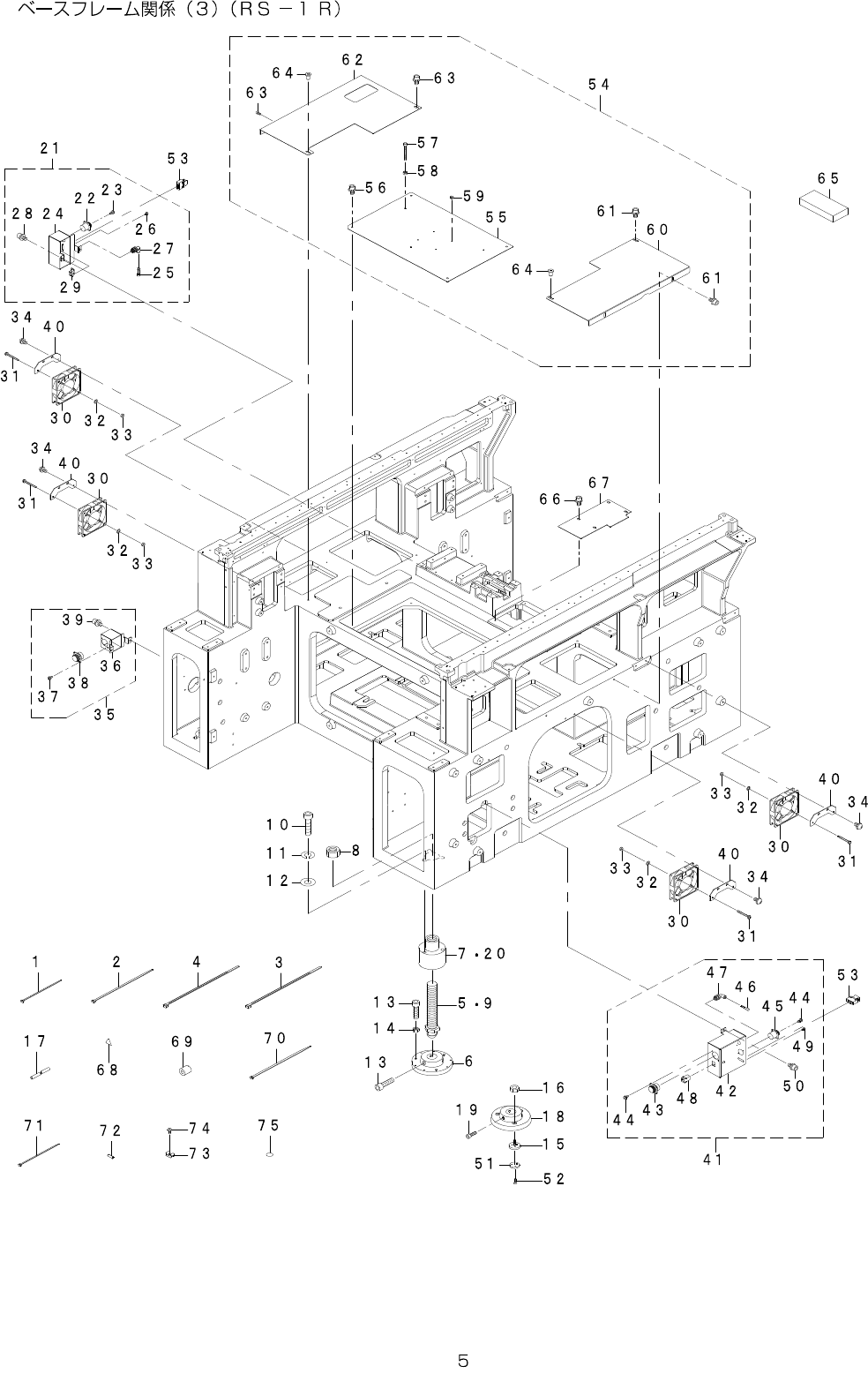

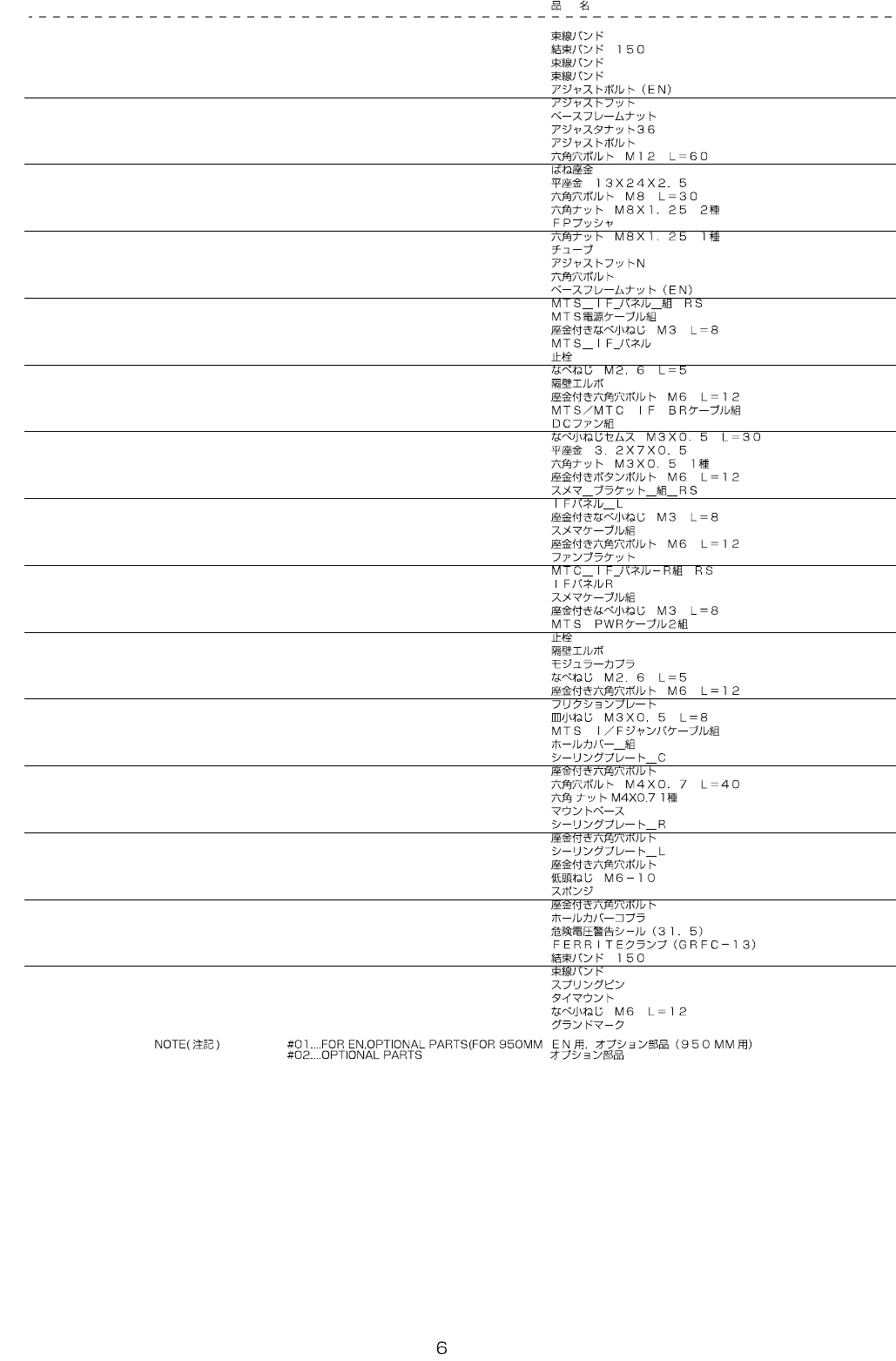

3. BASEFRAMECOMPONENTS(3)(RS-1R)
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 EA-9500B01-00 CABLEBAND 50
2 EA-9500B02-00 CABLEBAND150 120
3 HX-0006500-0B CABLEBAND 50
4 HX-0006500-0C CABLEBAND 5
5
#01
400-00404 ADJUSTBOLT(EN) 4
6 E1035-729-000 ADJUSTERFOOT 4
7 400-00519 BASEFRAMENUT 4
8 E1044-729-000-A ADJUSTERNUT36 4
9 400-00403 ADJUSTBOLT 4
10 SM-6126002-TN SCREWM12L=60 12
11 WS-1220002-KN SPRINGWASHER 12
12 WP-1302501-SC WASHER13X24X2.5 12
13 SM-6083002-TN SCREWM8L=30 24
14 NM-6080002-SC NUTM8X1.25TYPE2 12
15
#02
400-13307 FPPUSHER 12
16
#02
NM-6080001-SC NUTM8X1.25TYPE1 12
17 HX-0060700-00 TUBE 0.4
18
#02
E6600-729-000 ADJUSTFOOTN 4
19
#02
SM-6082502-TN BOLT 12
20
#01
400-00535 BASEFRAMENUT(EN) 4
21 401-83545 MTS_IF_PANEL_ASM_RS 1
22 401-83500 MTSPWRCABLEASM (1)
23 SL-4030881-SC SCREWM3L=8 (2)
24 401-66646 MTS_IF_PANEL (1)
25 PX-9500010-00 PLUG (1)
26 SM-4860501-SB SCREWM2.5L=5 (2)
27 PJ-3040600-04 PARTITIONELBOW (1)
28 SL-6061292-TN SCREWM6L=12 (2)
29 402-08426 MTS/MTCIFBRCABLEASM (1)
30 401-89090 DCFANASM 4
31 SL-4033091-SC SCREWM3L=30 8
32 WP-0320501-SC WASHERM3 8
33 NM-6030001-SC NUTM3X0.5TYPE1 8
34 SL-3061232-TN SCREWM6L=12 8
35 401-83543 SMEMA_BR_ASM_RS 1
36 401-66645 IF_PANEL_L (1)
37 SL-4030881-SC SCREWM3L=8 (2)
38 401-29031 SMEMACABLEASM (1)
39 SL-6061292-TN SCREWM6L=12 (2)
40 401-08337 FANBR 4
41 401-83544 MTC_IF_PANEL-R_ASM_RS 1
42 402-06933 IF_PANEL_R (1)
43 401-29031 SMEMACABLEASM (1)
44 SL-4030881-SC SCREWM3L=8 (4)
45 401-94687 MTSPWRCABLE2ASM (1)
46 PX-9500010-00 PLUG (1)
47 PJ-3040600-04 PARTITIONELBOW (1)
48 HK-0651200-80 MODULARKAPLA (1)
49 SM-4860501-SB SCREWM2.5L=5 (2)
50 SL-6061292-TN SCREWM6L=12 (3)
51
#02
400-13306 FLICTIONPLATE 12
52
#02
SM-1030801-SC SCREWM3L=8 36
53 401-84382 MTSI/FJUMPERCABLEASM 2
54 402-18338 HOLE_COVER_ASSY 1
55 402-17384 CEILING_PLATE_C (1)
56 SL-6061292-TN SCREW (4)
57 SM-6044002-TN SCREWM4X0.7L=40 (3)
58 NM-6040001-SC NUTM4X0.7TYPE1 (3)
59 HX-0070600-0A MOUNTBASE (4)
60 402-17386 CEILING_PLATE_R (1)
61 SL-6061292-TN SCREW (3)
62 402-17385 CEILING_PLATE_L (1)
63 SL-6061292-TN SCREW (3)
64 402-18340 LOW_HEAD_SCREW_M6-10 (2)
65 400-80833 SPONGE 6
66 SL-6061292-TN SCREW 4
67 402-19957 HOLE_COVER_COPLA 1
68
#01
CM-3001000-01 LABEL 2
69
#01
EZ-1482181-11 FERRITECLAMP(GRFC-13) 5
70
#01
EA-9500B02-00 CABLEBAND150 2
71
#01
EA-9500B01-00 CABLEBAND 5
72 PS-0400122-KP SPRINGPIN 8
73 HX-0055700-00 TIEMOUNT 11
74 SM-4061201-SC SCREWM6L=12 11
75
#01
100-04109 GROUNDMARK 2
- -
4. BASEFRAMECOMPONENTS(4)(RS-1R)
