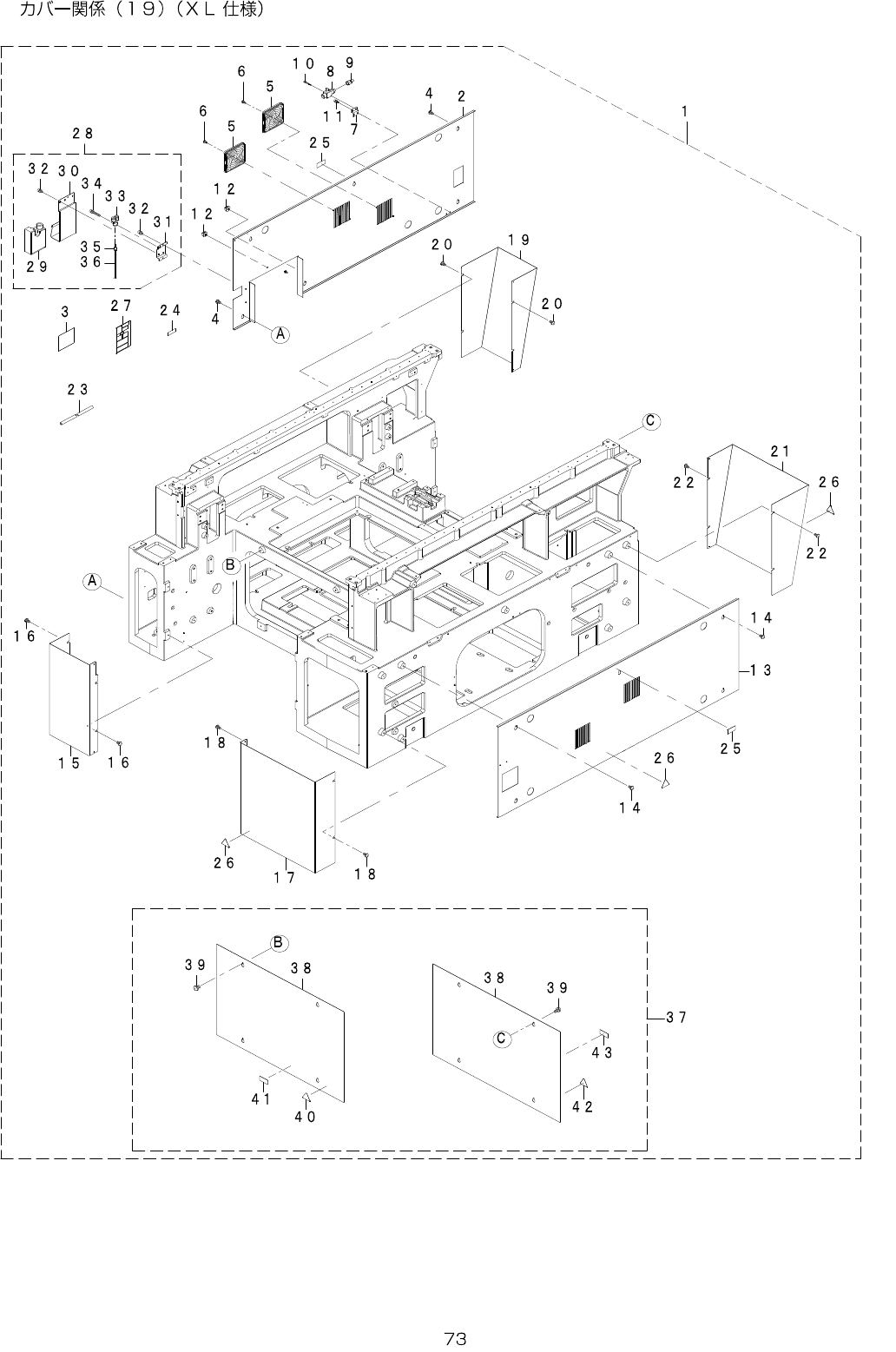

37.COVERCOMPONENTS(19)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 402-15532 COVER_BOTTOM_ASM_XL 1

2 402-15049 COVER_SBL_XL (1)

3 401-11970 LAMINATING_SEAL (1)

4 SL-3061232-TN SCREWM6L=12 (6)

5 HM-0010100-10 FILTER (2)

6 SL-4030891-SC SCREWM3L=8 (4)

7 400-00550 FVBRACKET (1)

8 PV-0152120-00 FINGERVALVE (1)

9 PJ-0252000-03 PLUG (1)

10 SL-6032542-TN SCREW (2)

11 SL-6041092-TN SCREWM4L=10 (2)

12 HX-0070600-0A MOUNTBASE (2)

13 402-15052 COVER_SBR_XL (1)

14 SL-3061232-TN SCREWM6L=12 (5)

15 401-47082 COVER_FBL (1)

16 SL-3061232-TN SCREWM6L=12 (4)

17 402-15050 COVER_FBR_XL (1)

18 SL-3061232-TN SCREWM6L=12 (4)

19 401-87352 COVER_RBL (1)

20 SL-3061232-TN SCREWM6L=12 (4)

21 402-15051 COVER_RBR_XL (1)

22 SL-3061232-TN SCREWM6L=12 (4)

23 BT-1000651-EB POLYURETHANETUBE (1.7)

24 E9635-455-000 REVISIONSEAL (1)

25 168-70206 GRAVITYSEAL (2)

26 CM-3001000-04 DANGERLABEL(50) (3)

27 401-81150 LAMINATING_SEAL (1)

28 400-93785 ASM_DRAIN_TANK (1)

29 400-16815 DRAINTANK (1)

30 400-16814 DRAINTANKSTAY (1)

31 400-93721 DT_STAY_BR (1)

32 SL-6040892-TN SCREWM4L=8 (4)

33 PJ-3081000-01 UNIONY (1)

34 SL-6042592-TN SCREWM4L=25 (1)

35 PJ-3090400-03 REDUCER4-10 (1)

36 BT-0400251-EA URETHANETUBEBLUE4X2.5 (0.16)

37 401-84581 COVER_BOTTOM_C_ASM (1)

38 401-91227 BANK_COVER_C_F (2)

39 SL-3061232-TN SCREWM6L=12 (8)

40 CM-3001000-04 DANGERLABEL(50) (1)

41 168-70206 GRAVITYSEAL (1)

42 CM-3001000-04 DANGERLABEL(50) (1)

43 168-70206 GRAVITYSEAL (1)

- -

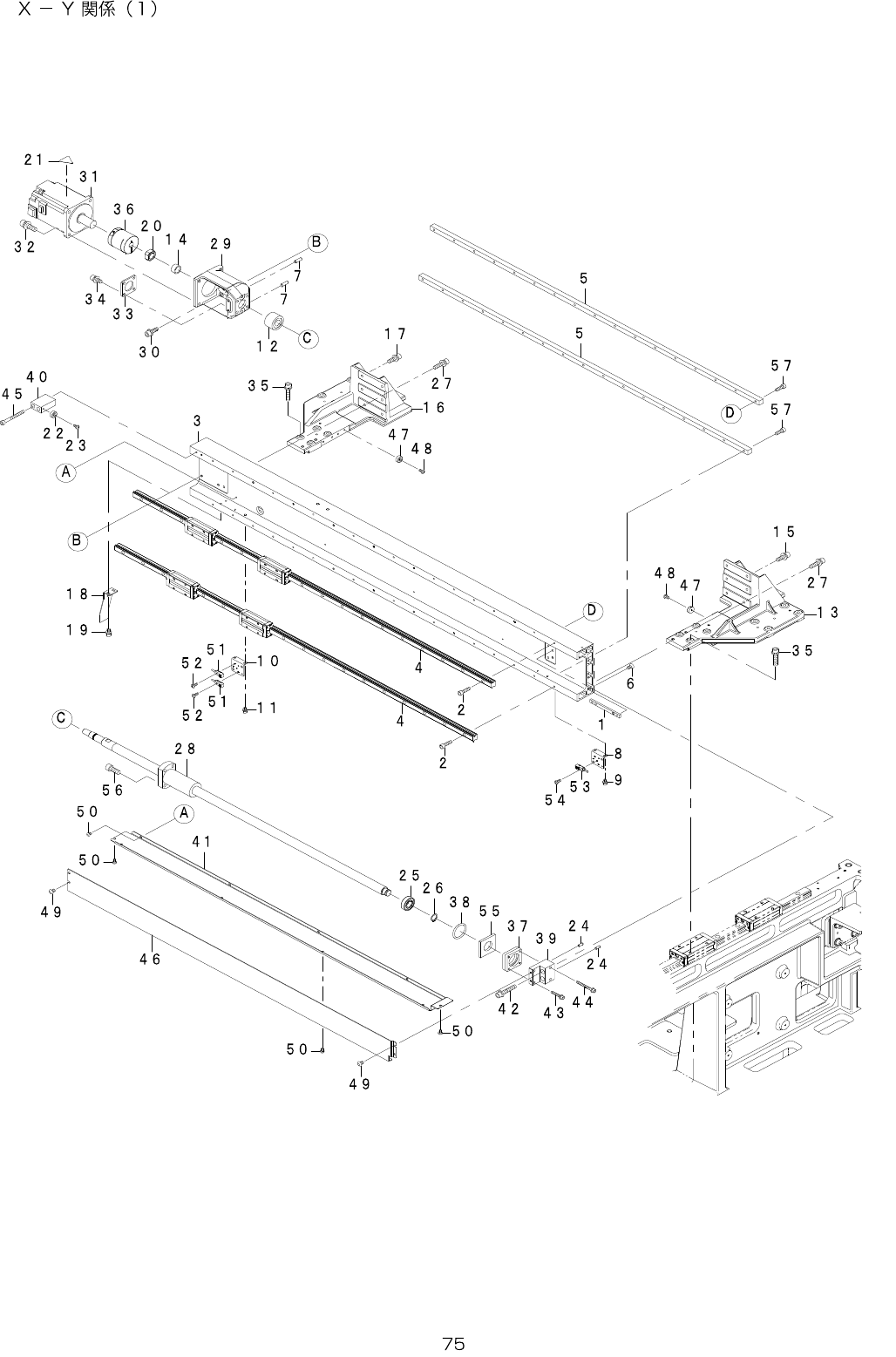

38.X-YCOMPONENTS(1)
