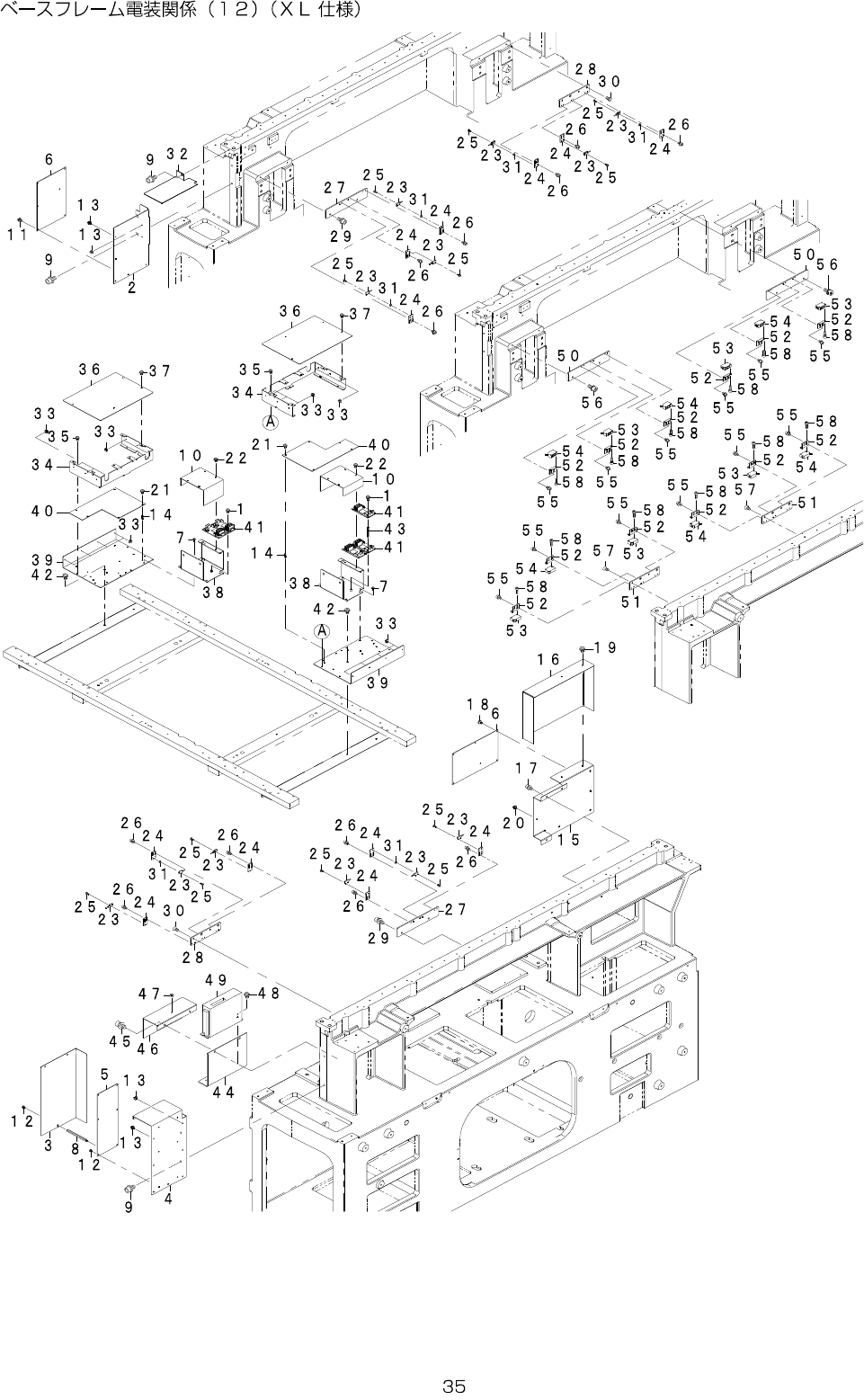

18.BASEFRAMEELECTRICAPPARATUSCOMPONENTS(12)(TYPEXL)
- -

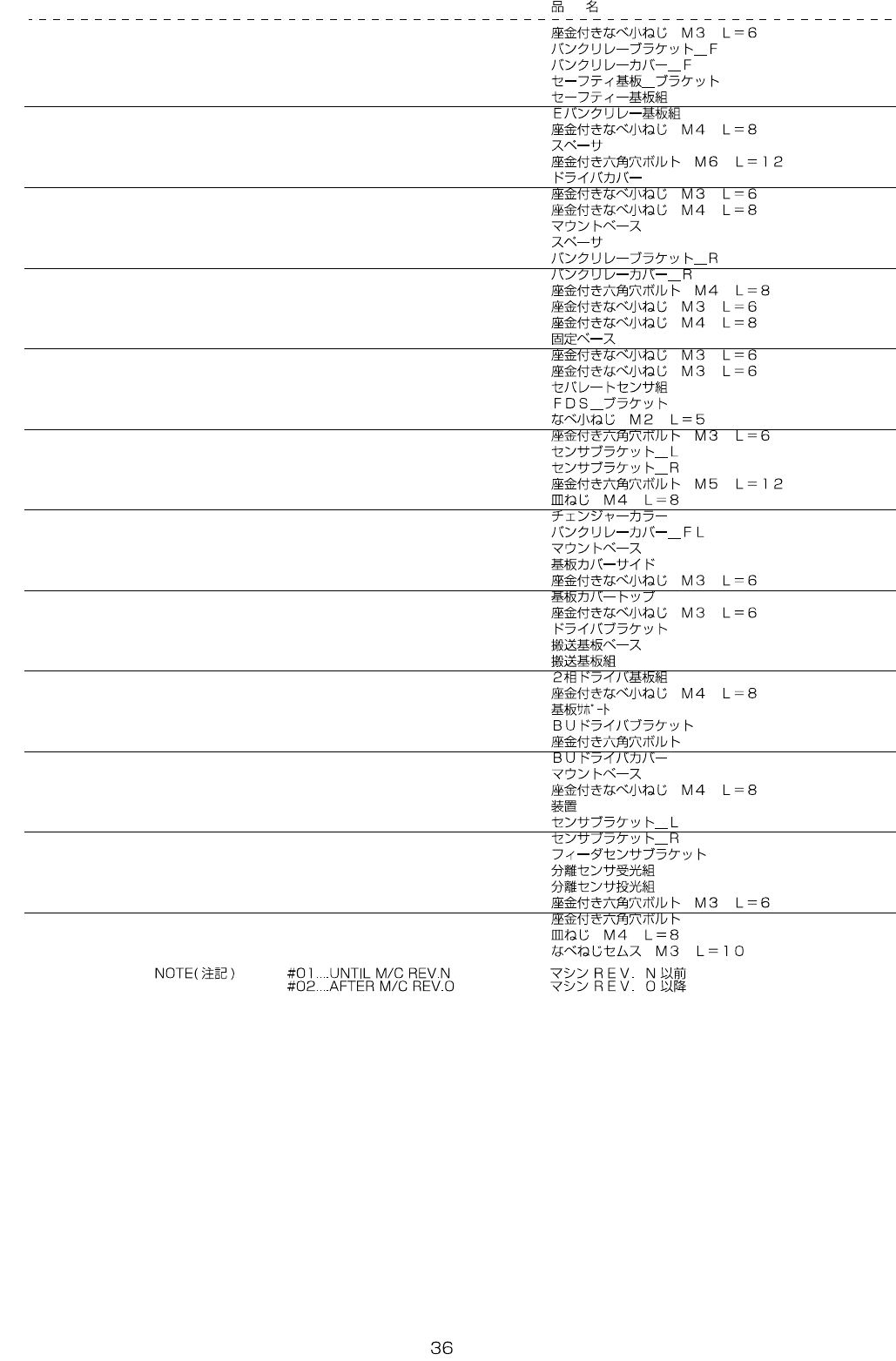

REF.NO NOTE PARTNO DESCRIPTION Qty
1 SL-4030691-SC SCREWM3L=6 8
2 401-83016 BANK_RELAY_BR_F 1
3 401-83017 BANK_RELAY_COVER_F 1
4 401-83020 SAFETY_PWB_BR 1
5 401-28872 SAFETYPCBASM 1
6 401-28876 EBANKRELAYPCBASM 2
7 SL-4040891-SC SCREWM4X8 4
8 HX-0033900-0N SPACER 1
9 SL-6061292-TN SCREWM6L=12 5
10 401-83074 DRIVER_COVER 2
11 SL-4030691-SC SCREWM3L=6 6
12 SL-4040891-SC SCREWM4X8 8
13 HX-0070600-0A MOUNTBASE 13
14 HX-0035400-0F SPACER 10
15 401-83018 BANK_RELAY_BR_R 1
16 401-83019 BANK_RELAY_COVER_R 1
17 SL-6040892-TN SCREWM4L=8 3
18 SL-4030691-SC SCREWM3L=6 6
19 SL-4040891-SC SCREWM4X8 2
20 HX-0029400-00 FIXEDBASE 6
21 SL-4030691-SC SCREWM3L=6 10
22 SL-4030691-SC SCREWM3L=6 4
23
#01
401-86919 SEPARATESENSORASM 6
24
#01
401-84970 FDS_BR 12
25
#01
SM-4020501-SC SCREWM2L=5 24
26
#01
SL-6030692-TN SCREWM3L=6 24
27
#01
401-83196 SENSOR_BR_L 2
28
#01
401-83197 SENSOR_BR_R 2
29
#01
SL-6051292-TN SCREWM5L=12 4
30
#01
SM-1040852-TP DISHSCREW 4
31
#01
401-53419 CHANGER_COLLAR 12
32 401-83497 BANK_RELAY_COVER_FL 1
33 HX-0070600-00 MOUNTBASE 20
34 401-83075 PWB_COVER_SIDE 2
35 SL-4030691-SC SCREWM3L=6 10
36 401-83076 PWB_COVER_TOP 2
37 SL-4030691-SC SCREWM3L=6 8
38 401-83073 DRIVER_BRACKET 2
39 401-83072 CONVEYOR_PWB_BASE 2
40 401-28875 CONVEYORPCBASM 2
41 401-54209 2PHASEDRIVERPCBASM 5
42 SL-4040891-SC SCREWM4X8 4
43 HX-0035400-0K BASESUPPORT 2
44 401-99983 BU_DRIVER_BR 1
45 SL-6061292-TN SCREW 2
46 402-16701 BU_DRIVER_COVER 1
47 HX-0070600-0A MOUNTBASE 1
48 SL-4040891-SC SCREWM4L=8 2
49
#02
HX-0068900-00 UNIT 1
50
#02
402-18654 SENSOR_BR_L 2
51
#02
402-18655 SENSOE_BR_R 2
52
#02
402-18656 FEEDER_SENSOR_BR 12
53
#02
401-54796 SEPARATESENSORRECEIVERASM 6
54
#02
401-54797 SEPARATESENSOREMISSIONASM 6
55
#02
SL-6030692-TN SCREWM3L=6 24
56
#02
SL-6051292-TN BOLT 4
57
#02
SM-1040852-TP DISHSCREW 4
58
#02
SL-4031081-SC SCREWM3X10 24
- -

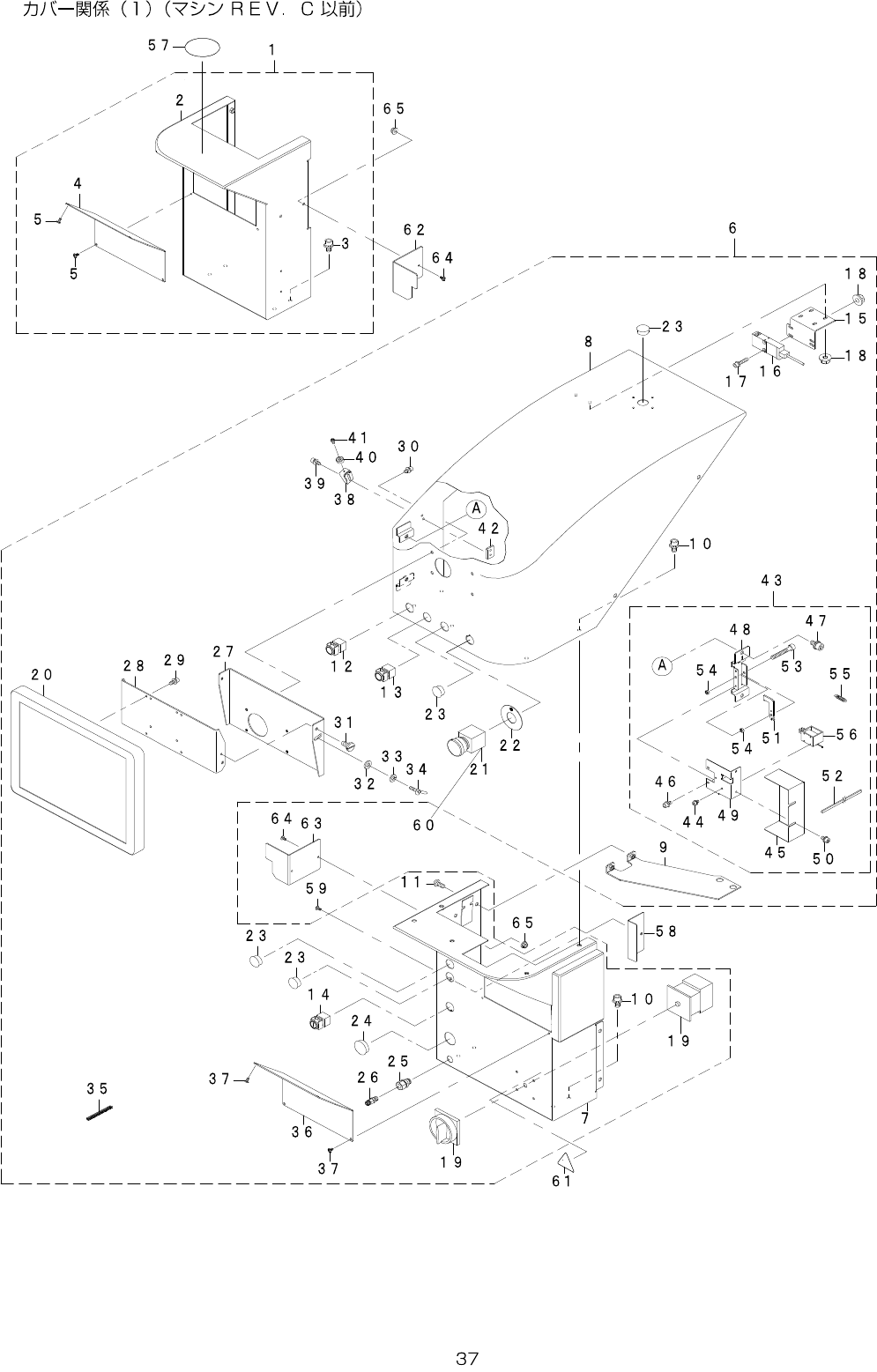

19.COVERCOMPONENTS(1)(UNTILM/CREV.C)
