- - 44. X-YCOMPONE NTS(7)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-77461 Y_MOTOR_FRAME2 2

2 SL-6062592-TN SCREWM6L=25 8

3 401-46348 YAXISSERVOMOTOR 2

4 SM-6082002-TN SCREWM8L=20 8

5 401-77465 BEARING_PLATE 2

6 SL-6051292-TN SCREWM5L=12 8

7 401-82778 COUPLING_STF-056SA1 2

8 401-06041 Y_BALL_SCREW_L 2

9 401-06024 YBSCONNECTOR 2

10 402-09512 X_CABLE_BEAR_SUPPORT 1

11 SL-6041092-TN SCREW 6

12 401-82769 Y_CB_SUPPORT_ANGLE_A 1

13 SL-6062592-TN SCREW 8

14 SM-6061602-TN SCREWM6L=16 8

15 402-09514 X_CABLE_CLAMP 1

16 L153E-321-000 FCRUBBER 2

17 SL-6041092-TN SCREW 1

18 401-10219 FC_SUPPORT_Y_V2 1

19 400-98052 FC_RUBBER_Y 3

20 SL-6061292-TN SCREWM6L=12 2

21 402-11718 CB_SUPPORT_SHEET 1

22 401-10451 XCABLEBEAR 1

23 SL-6040892-TN SCREWM4L=8 2

24 SM-6041002-TN SCREW 8

25 401-82750 Y_CB_SUPPORT 1

26 400-60210 YCABLEBEAR(E) 1

27 SM-3051052-TN SCREWM5L=10 4

28 400-46005 CBBRACKETL 1

29 WP-0431005-SP PLAINWASHER 1

30 SL-6040892-TN SCREWM4L=8 3

31 L132E-421-000 CBBRACKETPINX 2

32 WP-0531001-SC WASHERM5 4

33 SB-1150016-00 BEARING 2

34 400-93876 BEARING_LOCK_NUT 2

35 401-77466 COLLAR_150_200_60 2

36 SL-6040892-TN SCREWM4L=8 3

37 402-11719 CB_SUPPORT_ANGLE 3

38 400-46006 CBBRACKETR 1

39 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 2

40 SM-1030601-SC SCREWM3X6 3

41 SL-6041092-TN SCREWM4L=10 6

42 400-93864 O_RING_X 4

43 402-17393 ADJUST_BLOCK 2

44 402-19594 END_BRACKET 2

45 SL-6062092-TN SCREWM6L=20 4

46 SL-6052092-TN SCREW 8

47 SB-1150004-00 RADIALBEARING 4

48 400-93876 BEARING_LOCK_NUT 2

49 401-77466 COLLAR_150_200_60 2

- -

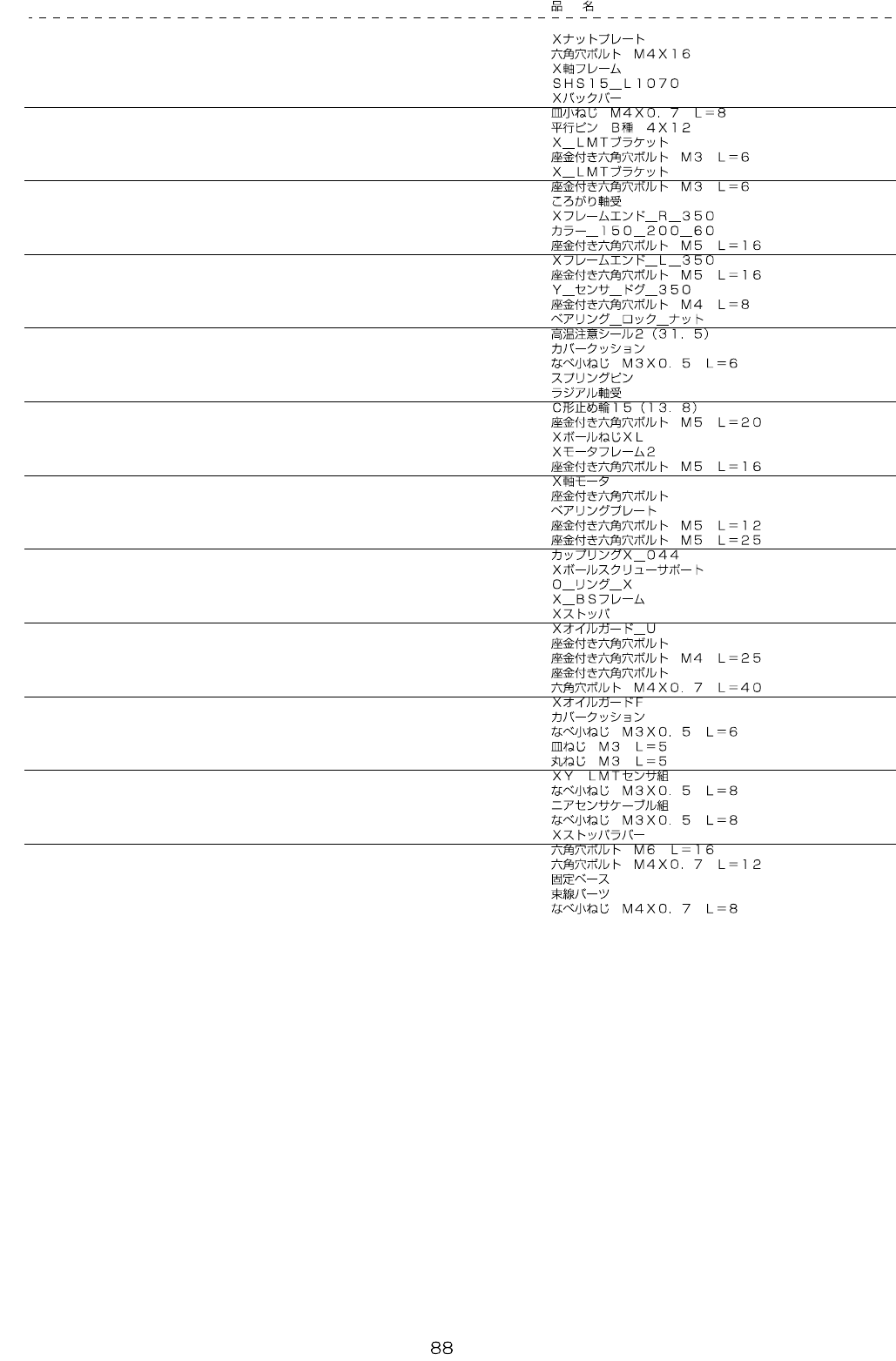

44.X-YCOMPONENTS(7)(TYPEXL)

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-86201 X_NUT_PLATE 2

2 SM-6041602-TN SCREWM4X16 36

3 401-90238 X_AXIS_FRAME 1

4 401-82754 SHS15_L1070 2

5 401-82756 X_BACK_BAR 2

6 SM-1040801-SC SCREWM4X0.7L=8 4

7 PH-0400122-C0 PARALLELPINTYPEB4X12 2

8 401-46922 X_LMT_BR 1

9 SL-6030692-TN SCREWM3L=6 2

10 401-46922 X_LMT_BR 1

11 SL-6030692-TN SCREWM3L=6 2

12 SB-1150016-00 BEARING 1

13 401-61580 X_FRAME_END_R_350 1

14 401-77466 COLLAR_150_200_60 1

15 SL-6051692-TN SCREWM5L=16 4

16 401-61579 X_FRAME_END_L_350 1

17 SL-6051692-TN SCREWM5L=16 4

18 401-61595 Y_SENSOR_DOG_350 1

19 SL-6040892-TN SCREWM4L=8 2

20 400-93876 BEARING_LOCK_NUT 1

21 CM-3003000-03 HIGHTEMPARATURECAUTIONLABEL2(31.5) 1

22 400-49671 COVERCUSHION 1

23 SM-4030601-SC SCREWM3X0.5L=6 1

24 PS-0400122-KP SPRINGPIN 3

25 SB-1150004-00 RADIALBEARING 1

26 RC-0150001-KP C-RING15(13.8) 1

27 SL-6052092-TN SCREWM5L=20 4

28 400-98047 XBALLSCREWXL 1

29 401-90239 X_MOTOR_FRAME2 1

30 SL-6051692-TN SCREWM5L=16 4

31 401-29653 XAXISMOTOR 1

32 SL-6062042-TN BOLT 4

33 401-77465 BEARING_PLATE 1

34 SL-6051292-TN SCREWM5L=12 4

35 SL-6052592-TN SCREWM5L=25 16

36 401-72739 COUPLING_X_044 1

37 401-27577 X_BALL_SCREW_SUPPORT 1

38 400-93864 O_RING_X 1

39 401-90235 X_BS_FRAME 1

40 401-10222 X_STOPPER 1

41 401-90237 X_OIL_GUARD_U 1

42 SL-6053592-TN BOLT 2

43 SL-6042592-TN SCREWM4L=25 2

44 SL-6044092-TN SCREW 2

45 SM-6044002-TN SCREWM4X0.7L=40 2

46 401-90236 X_OIL_GUARD_F 1

47 400-49671 COVERCUSHION 2

48 SM-4030601-SC SCREWM3X0.5L=6 2

49 SM-1030552-TN SCREWM3L=5 2

50 SM-3030552-TN SCREWM3L=5 10

51 401-65028 XYLMTSENSORASM 2

52 SM-4030801-SC SCREWM3X0.5L=8 2

53 401-29002 NEARSENSORCABLEASM 1

54 SM-4030801-SC SCREWM3X0.5L=8 1

55 401-82752 X_STOPPER_RUBBER 1

56 SM-6061602-TN SCREWM6L=16 4

57 SM-6041202-TN SCREWM4X0.7L=12 34

58 HX-0029400-00 FIXEDBASE 6

59 HX-0034400-00 HARNESSPARTS 2

60 SM-4040801-SC SCREWM4X0.7L=8 8
