■ Specifications
★1. Whenever setting pressure, make sure the full cut-off pressure never
exceeds the maximum intermittent pressure.
★2. When operating the pump exceeding the rated pressure, operating
conditions are restricted. Refer to page 31 for the details.
★3. Specifications of power amplifiers, consult Yuken for details.
★4. The figure mentioned in the above table are those obtained using Yuken's
amplifier.
★5. Step response depends on circuit and operating conditions. Data shown in
the table above is an example based on the condition right.
Model Numbers
Descriptions
A16 A22 A37 A56 A70 A90 A145
Geometric Displacement cm
3
/rev 15.8 22.2 36.9 56.2 70.0 91.0 145
Operating Pressure MPa
Rated
★2
16 16 16 16 21 21 21
Intermittent
★1
21 16 21 21 21 21 21
Shaft Speed Range r/min
Max. 1800 1800 1800 1800 1800 1800 1800
Min. 600 600 600 600 600 600 600
Flow Control
Flow Adj. Range L/min 1 - 28.4 1 - 40 1 - 66 1 - 101 1 - 126 1 - 163 2 - 261
Min. Pres. Required
for Flow Adj.
MPa 1.5 1.5 1.5 2.0 1.0 1.0 1.0
Differential Pres.
(Discharge Pres.
-Load Pres.)
MPa 0.37 0.22
Step Response
★5
(0 → Max. Flow)
ms 70 80 120 125 100 120 210
Hysteresis 3 % or less
★1
Rated Current mA 900 700 740 790 820 920 920
Coil Resistance
(20°C)
10
Pres. Control
Pres. Adj. Range MPa Refer to Model Number Designation
Step Response ms
t
1
★5
80 80 50 55 150 150 160
t
2
★5
140 90 80 80 80 120 180
Hysteresis 2 % or less
★1
Rated Current mA
(Pres. Adj. Range)
B: 770, C:880, H:790
C: 860
H: 765
C: 873
H: 765
C: 875
H: 755
Coil Resistance
(20°C)
Ω 10
Applicable Amplifier Model
★3
AME-D2-1010-11
Approx. Mass kg
Flange Mtg. 32 32 38 45 72.5 88.5 109.5
Foot Mtg. 34.2 34.2 43.2 49.3 84.5 109 134.5
Model
Pres. Step Response
Loading Volume
t
1
t
2
A16, A22 1.5 → 16 MPa 16 → 1.5 MPa
High Pressure Hose
3/8" × 2 m
A37, A56 2.0 → 16 MPa 16 → 2.0 MPa
High Pressure Hose
3/4" × 2 m
A70, A90
A145
3.0 → 16 MPa 16 → 3.0 MPa
High Pressure Hose
1-1/4" × 2 m

65
PISTON PUMPS
A Series
A
Series Variable Displacement Piston Pumps
Proportional Electro-Hydraulic Load Sensing Type
"
H
"
"
C
"
"
B
"
21
20
16
12
8
4
0
Full Cut-off Pressure
MPa
200 400 600 800 900
Input Current
mA
"
H
"
"
C
"
Input Current
0
200 400 600 800
mA
1000
20
16
12
8
4
Full Cut-off Pressure
MPa
24
N=1800 r/min
200 400 600 800 1000
Input Current
mA
Output Flow
L/min
32
24
16
8
0
N=1800 r/min
200 400 600 800
Input Current
mA
Output Flow
L/min
40
30
20
10
0
N=1800 r/min
200 400 600 800
Input Current
mA
Output Flow
L/min
70
60
50
40
30
20
10
0
N=1800 r/min
200 400 600 800
Input Current
mA
900
Output Flow
L/min
110
100
80
60
40
20
0
200 400 600 800
Input Current
mA
1000
N=1800 r/min
Output Flow
L/min
140
120
80
40
0
200 400 600 800
Input Current
mA
1000
Output Flow
L/min
200
160
120
80
40
0
200 400 600 800
Input Current
mA
1000
N=1800 r/min
N=1800 r/min
Output Flow
L/min
280
240
200
160
120
80
40
0
●A16/A22/A37/A56 ●A70/A90/A145
Note: Pressure adjustment range "H" is not available for A22.
●A16
●A22
●A37
●A56
●A70
●A90
●A145
Typical Performance Characteristics at Viscosity 20 mm
2
/s [ISO VG32 Oils, 50°C]
■ Output Flow vs. Input Current
■ Full Cut-off Pres. vs. Input Signal

66
A
Series Variable Displacement Piston Pumps
Proportional Electro-Hydraulic Load Sensing Type
3
2
94
M10
Thd.
17
Deep
4 Places
Suction Port
19
Dia.
See
190.5
32.5 85
5622.2
Discharge Port
G3/8 Thd.
Air Vent
3
Hex.
3 Places.
Manual Pressure Adj. Screw
3
Hex. Soc.
INC.
57.5
103
48
47.6
70
152.2
Cable Departure
(For Flow Control)
Pilot Port "PP"
Rc1/4 Thd.
Safety Valve Pressure Adj. Screw
17
Hex.
INC.
Tank Port
Rc1/4 Thd.
95
Dia.
106
130
188
R12
18
63.2
4.79
4.76
101.5
Air Vent
3
Hex. Soc.
Manual Pressure Adj. Screw
3
Hex. Soc.
41
12
INC.
2
12
Surface of Discharge Port
Surface of Suction Port
172
262
187
X
Pressure Gauge Connection
for Pump Discharge Pressure
Rc1/4
Thd
57.5
152.5
177.5
255.5
82.55
Dia.
82.50
96
Filling Port
(
22
Hex. Head Plug Furnished)
Drain Port
Rc3/8
Thd.
Cable Departure
(For Pres. Control)
25
26.5
59
167.5
213
6.5
229
44.5
19.05
Dia.
21.24
21.08
19.02

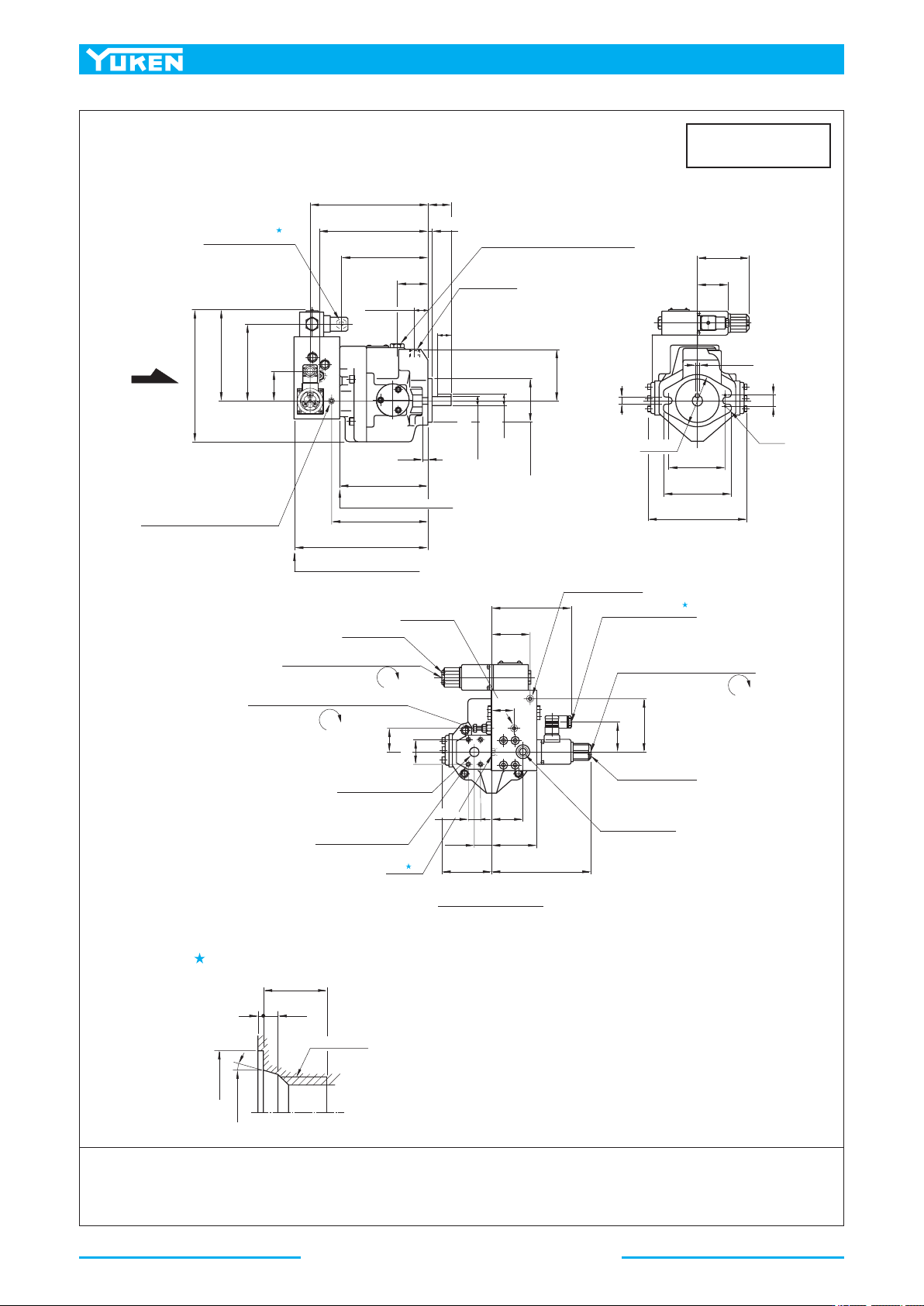

Flange Mtg. : A16-F-R-04*-K
A22-F-R-04*-K
DIMENSIONS IN
MILLIMETRES
★2. Cable Applicable:
Outside Dia......8-10 mm
Conductor Area......Not Exceeding 1.5 mm
2
★3. Do not touch the screw because it is adjusted at the time of shipment.
● Foot Mounting Type
Mounting bracket is common to that of pressure compensator model.
Refer to page 44 for the dimensions of mounting bracket.
View Arrow X
1.
14
2.51
G 3/8
Thd.
28
Dia.
18.6
Dia.
15°
Detail of Discharge Port
