83

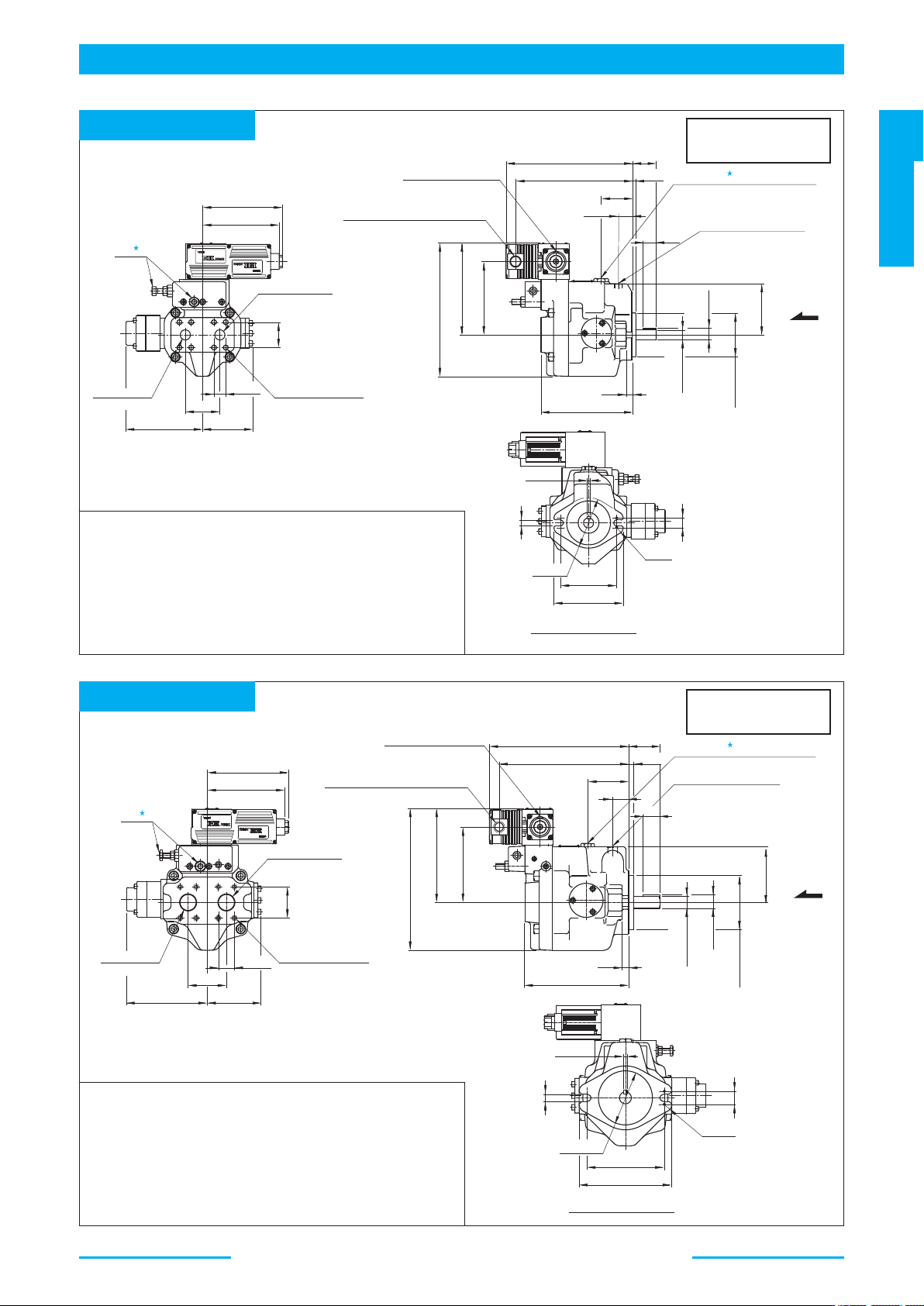

PISTON PUMPS
A Series
A
Series Variable Displacement Piston Pumps
“OBE” Type Electro-Hydraulic Proportional Pressure & Flow Control Type
■ Specifications
Model Numbers
Descriptions
A16 A22 A37 A56 A70 A90 A145
Geometric Displacement cm
3
/rev 15.8 22.2 36.9 56.2 70.0 91.0 145.0
Operating Pressure MPa (PSI)
Rated
★2
16 16 16 16 25 25 25
Intermittent
★1
21 16 21 21 28 28 28
Shaft Speed Range r/min 600 - 1800
Flow
Control
Max. Flow
★2
L/min 28.4 40.0 66.4 101.2 126.0 163.0 261.0
Min. Pres. Required
for Flow Adj.
MPa 2.0
Hysteresis 1 % or less
Repeatability 1 % or less
Input Signal Max. Flow / 5 V DC
Pressure
Control
Min. Adjustment
Pressure
MPa 0.7
Hysteresis 1 % or less
Repeatability 1 % or less
Input Signal Specified Control Pressure / 5 V DC
Coil Resistance Ω [@ 20℃] 10
Input Impedance Flow Control : 10 kΩ Pres. Control : 10 kΩ
Supply Electric Power 24 V DC (21 - 28 V Included Ripple)
Power Input (Max.) W 30
Output Signal
Flow 5 V DC / Max. Flow
Pressure 5 V DC / Specified Control Pressure
Alarm Signal Output (Open Collector) Voltage : Max. 30 V DC Current : Max. 40 mA
Ambient Temperature ℃ 0 - 50 (With Circulated Air)
Mass kg
Flange Mtg. 20.7 20.7 32.2 39.2 64 76.5 98
Foot Mtg. 22.9 22.9 36.5 43.5 76 97 123
★1. Whenever setting pressure, make sure the full cut-off pressure never exceeds the maximum intermittent pressure.
★2. When operating the pump exceeding the rated pressure, operating conditions are restricted.
Refer to page 31 for the details.
★3. Maximum flow differs to shaft speed.
The value listed above indicates shaft speed of 1800 r/min.
For other shaft speed calculate by the ratio of shaft speed.
■ Pipe Flange Kits
For Pipe flange, refer to form of pressure compensator type on page 32.
■ Instructions
● Input Signal
The pump is on unload condition when the pump is operated without input signal voltage.
● Electric Source
Always turn off electric source whenever the connector for swash plate tilt angle sensor is removed.
● Compensation of Pump Maximum Regulated Flow at Frequency
If the same maximum flow is required at 50 Hz or 60 Hz, connect short plug in the amplifier to 60 Hz at the place where supplied
frequency is 60 Hz. At this condition, maximum flow comes to the same value at 50 Hz.
If short plug is used at 60 Hz without making the change, maximum flow increased in proportion to frequency.
● Painting on Amp. Box and Solenoiod
To maintain suitable radiation effect, the amp. box and the solenoid of the control valve should not be painted.
84
A
Series Variable Displacement Piston Pumps
“OBE” Type Electro-Hydraulic Proportional Pressure & Flow Control Type
A＊-＊R04EH28M
A＊-＊R04EH20M
A＊-＊R04EH16M
A＊-＊R04EH8M
NOTE:｛kgf/cm
2
｝isreferenceonly.
3
Input Signal
V DC
4
8
0
21
54
1
0
4
8
32 4 5
28
20
16
24
12
20
16
12
28
24
Full Cut-off Pressure
MPa
Full Cut-off Pressure
MPa
Input Signal
V DC
0 1 2 3
Input Signal
V DC
Input Signal
V DC
54
1 2 3 54
123 54
1 32 54
1 2 3 54
1 2 3 54
1 2 3 54
Output Flow
L/min
Input Signal
V DC
Input Signal
V DC
Input Signal
V DC
Input Signal
V DC
Input Signal
V DC
8
16
24
32
Output Flow
L/min
10
0
20
30
45
40
20
0
40
60
80
Output Flow
L/min
Output Flow
L/min
40
0
200
280
80
120
160
240
Output Flow
L/min
25
0
125
50
75
100
175
150
Output Flow
L/min
25
0
125
50
75
100
150
20
0
100
40
60
80
120
Output Flow
L/min
1800 r/min
1500 r/min
1800 r/min
1500 r/min
1800 r/min
1500 r/min
1800 r/min
1500 r/min
1800 r/min
1500 r/min
1800 r/min
1500 r/min
1800 r/min
1500 r/min
●A16
●A56
●A70
●A90
●A145
●A22
●A37
A＊-＊R04EH280
A＊-＊R04EH200
A＊-＊R04EH80
A＊-＊R04EH160
7.8MPa
｛80kgf/cm
2
｝
19.6MPa
15.7MPa
｛160kgf/cm
2
｝
｛200kgf/cm
2
｝
27.5MPa
｛280kgf/cm
2
｝
■ Output Flow vs. Input Signal
■ Full Cut-off Pres. vs. Input Signal
Note: Pump characteristics at 1800 r/min is the same as those at 1500 r/min
where frequency is compensated.
(Refer to page 74.)
Refer to page 35 to 42 for performance characteristics of
pressure compensator type excluding characteristics
appeared on this catalogue.
85
PISTON PUMPS
A Series
A
Series Variable Displacement Piston Pumps
“OBE” Type Electro-Hydraulic Proportional Pressure & Flow Control Type
144
150.5
47.6
145 94
65
22.2
Discharge Port
19
Dia.
Suction Port
19
Dia.
M10
Thd.
17
Deep
8
Places
2
See
96
138
173
251
12
172
21.24
21.08
19.05
Dia.
Dia.
19.02
82.55
82.50
59
221
239
44.5
26.5
6.5
106
130
11
18
4.79
4.76
R12
Drain Port Rc
3/8
Thd.
Electrical Conduit Connection
G 1/2 Thd.
Air Vent
3
Hex. Soc.
22
Hex. Head Plug Furnished)
(
Filling Port
1
X
95
Dia.
25
Axial Port Type
Axial Port Type
Flange Mtg. : A16-FR04EH＊
A22-FR04EH＊
Flange Mtg. : A37-FR04EH＊
DIMENSIONS IN
MILLIMETRES
DIMENSIONS IN
MILLIMETRES
★1. Install the pump so that the "Filling Port" is at the top.
★2. Do not touch the screw because it is adjusted at the time of shipment.
★3. For detail of amplifier, refer to page 90.
★1. Install the pump so that the "Filling Port" is at the top.
★2. Do not touch the screw because it is adjusted at the time of shipment.
★3. For detail of amplifier, refer to page 90.
● Side Port Type
Port mounting dimensions are the same as those of pressure
compensator model. Refer to page 44 for port mounting
dimensions.
● Side Port Type
Port mounting dimensions are the same as those of pressure
compensator model. Refer to page 45 for port mounting
dimensions.
● Foot Mounting Type
Mounting bracket is common to that of pressure compensator model.
Refer to page 44 for the dimensions of mounting bracket.
● Foot Mounting Type
Mounting bracket is common to that of pressure compensator model.
Refer to page 45 for the dimensions of mounting bracket.
View Arrow X
146
152.5
58.7
149 101
72
30.2
77
243.5
261.5 59
30
105
142
177
267
12
195
25.01
24.85
22.23
22.20
101.60
Dia.
Dia.
101.55
174
146
14
25
6.38
6.35
X
Discharge Port
32
Dia.
2
See
Suction Port
32
Dia.
M10
Thd.
19
Deep
8
Places
Electrical Conduit Connection
G 1/2 Thd.
Air Vent 3 Hex. Soc.
Filling Port
22
Hex. Head Plug Furnished)
(
1
Drain Port Rc
1/2
Thd.
R14
120
Dia.
9.5
32
View Arrow X
